AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

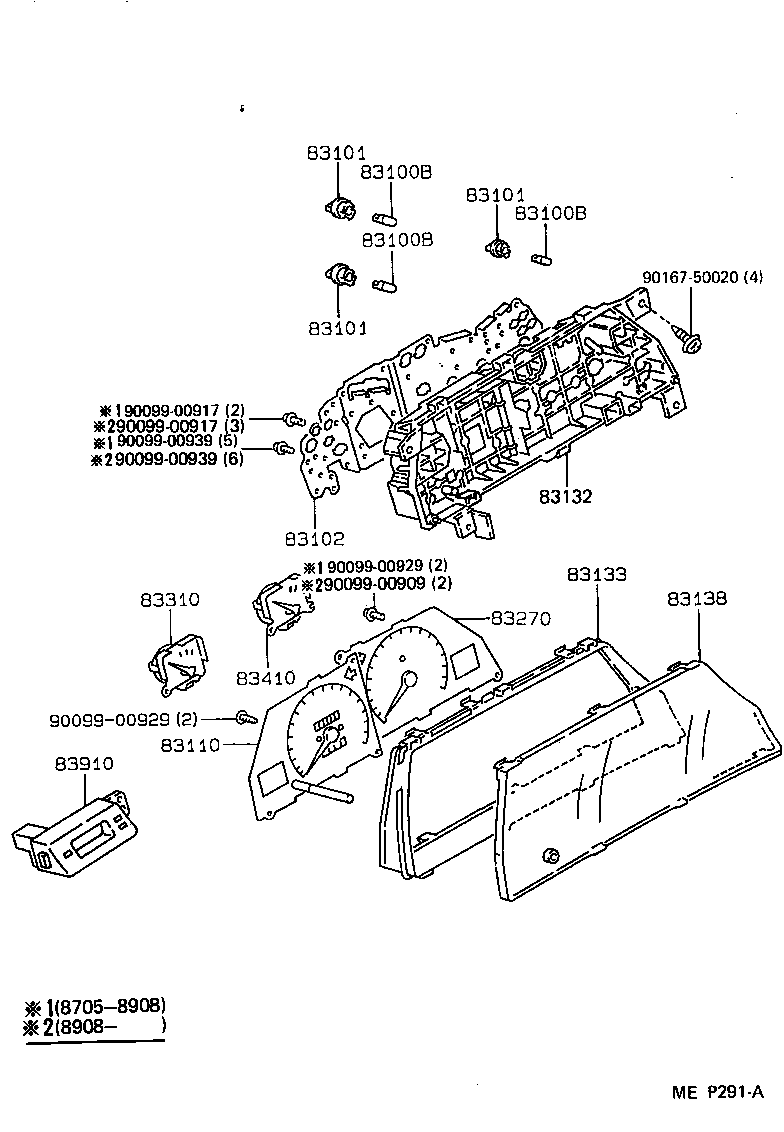

ILLUST NO. 1 OF 2(8705- )AE92..RHD..XL..GEN

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83101 83101 83101 83102 83110 83132 83133 83138 83270 83310 83410 83910 9009900909 9009900917 9009900917 9009900929 9009900929 9009900939 9009900939 9016750020
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AE92..RHD..XL..GEN

12V 3.4W

 3
90981-11018

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

12V 1.2W W/O SOCKET

 4
83109-12030

EE90;AE92..GCC;AE92..RHD..(STD,XL)

12V 3.4W,BLUE CAP

 3
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AE92..RHD..XL..GEN

12V 3.4W

 3
90981-11018

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

12V 1.2W W/O SOCKET

 4
83109-12030

EE90;AE92..GCC;AE92..RHD..(STD,XL)

12V 3.4W,BLUE CAP

 3
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AE92..RHD..XL..GEN

12V 3.4W

 3
90981-11018

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

12V 1.2W W/O SOCKET

 4
83109-12030

EE90;AE92..GCC;AE92..RHD..(STD,XL)

12V 3.4W,BLUE CAP

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

14V 1.4W BULB

 4
83101-14030

AE92..RHD..XL..GEN

12V 3.4W BULB

 6
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

14V 1.4W BULB

 4
83101-14030

AE92..RHD..XL..GEN

12V 3.4W BULB

 6
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL)

14V 1.4W BULB

 4
83101-14030

AE92..RHD..XL..GEN

12V 3.4W BULB

 6
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1E040

AE92..RHD..XL..GEN

 1
83247-13390

AE92..RHD..XL..GEN

 1
83110 - SPEEDOMETER ASSY
83110-1E180

AE92..RHD..XL..GEN

 1
83110-1E181

AE92..RHD..XL..GEN

 1
83132 - CASE, COMBINATION METER
83132-1A050

AE92..RHD..XL..GEN

 1
83132-1A370

AE92..RHD..XL..GEN

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-1A190

AE92..RHD..XL..GEN

 1
83138 - GLASS, SPEEDOMETER
83138-12830

AE92..RHD..XL..GEN

 1
83270 - TACHOMETER ASSY, ENGINE
83242-1A690

AE92..RHD..XL..GEN

 1
83242-1E270

AE92..RHD..XL..GEN

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-1A110

AE92..RHD..XL..GEN

 1
83243-1A550

AE92..RHD..XL..GEN

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-1A750

AE92..RHD..XL..GEN

 1
83244-1A530

AE92..RHD..XL..GEN

 1
83910 - CLOCK ASSY
83910-12420

AE92..RHD..XL..GEN

 1
Common parts
90099-00909
90099-00917
90099-00929
90099-00939
90167-50020

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 8271122270 83189 83189 83189 83710 83710 83710 83710A 83710A 8379112060 8379112060 9156140614 9165140614
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

AE92..RHD..XL

 1
83189-20020

AE92..XL..GEN

 1
83189 - BRACKET, METER
83189-20020

AE92..RHD..XL

 1
83189-20020

AE92..XL..GEN

 1
83189 - BRACKET, METER
83189-20020

AE92..RHD..XL

 1
83189-20020

AE92..XL..GEN

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12461

AE92..LHD..3FC;AE92..5F..XL..GEN

 1
83710-12460

EE90;AE92..RHD..5F;AE92..LHD..GTI

 1
83710-12460

EE90;AE92..5F;AE92..LHD..3FC

 1
83710-12460

AE92..5F..XL;AE92..LHD..3FC

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12461

AE92..LHD..3FC;AE92..5F..XL..GEN

 1
83710-12460

EE90;AE92..RHD..5F;AE92..LHD..GTI

 1
83710-12460

EE90;AE92..5F;AE92..LHD..3FC

 1
83710-12460

AE92..5F..XL;AE92..LHD..3FC

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12461

AE92..LHD..3FC;AE92..5F..XL..GEN

 1
83710-12460

EE90;AE92..RHD..5F;AE92..LHD..GTI

 1
83710-12460

EE90;AE92..5F;AE92..LHD..3FC

 1
83710-12460

AE92..5F..XL;AE92..LHD..3FC

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-12490

AE92..RHD..5F..XL

 1
83710-12491

AE92..RHD..(4FC,5F)..XL..GEN

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-12490

AE92..RHD..5F..XL

 1
83710-12491

AE92..RHD..(4FC,5F)..XL..GEN

 1
Common parts
82711-22270
83791-12060
91561-40614
91651-40614
