AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

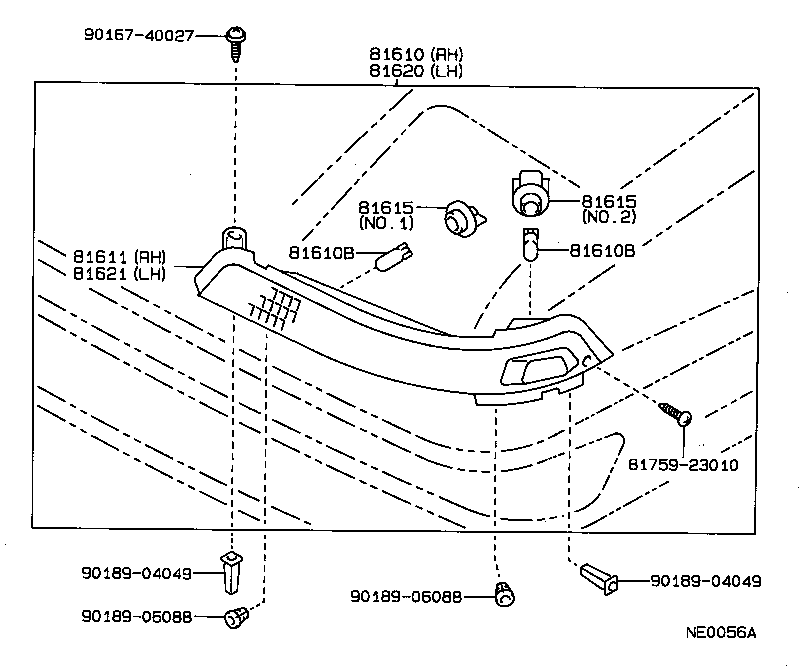

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81615 81615 81620 81621 8175923010 9016740027 9018904049 9018904049 9018906088 9018906088
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12370

AE92..XL..GEN

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE92,EE90..GCC,GEN

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE92,EE90..GCC,GEN

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12370

AE92..XL..GEN

 1
81611-12370

AE92..XL..GEN

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

AE92,EE90..GCC,GEN

NO.2

 2
90075-99007

AE92,EE90..GCC,GEN

NO.1

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

AE92,EE90..GCC,GEN

NO.2

 2
90075-99007

AE92,EE90..GCC,GEN

NO.1

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12370

AE92..XL..GEN

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12370

AE92..XL..GEN

 1
81621-12370

AE92..XL..GEN

 1
Common parts
81759-23010
90167-40027
90189-04049
90189-06088
