AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
Production
May 1987
-
Jun 1991
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )AE92..XL..GEN

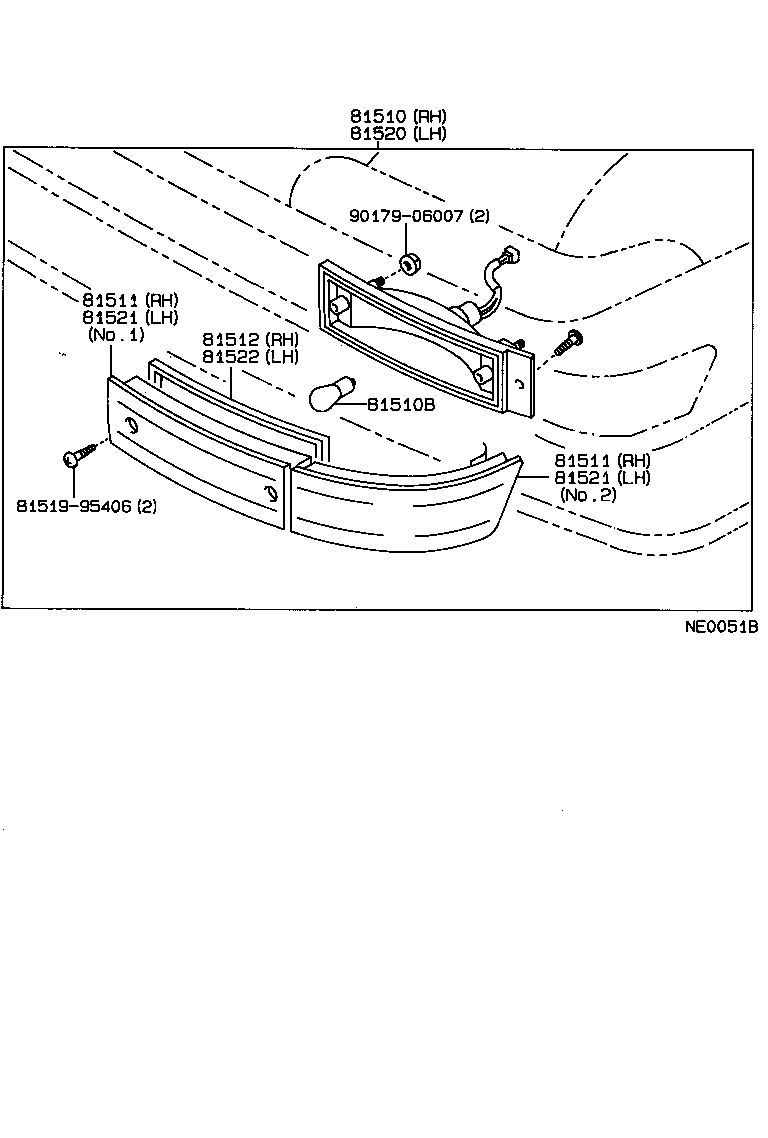

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80051 |
AE92..XL..GEN |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
AE92,EE90 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81514-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81511-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81514-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81511-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81514-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81511-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81514-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81511-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-12550 |
AE92..XL..GEN |
1 | ||
| 81512-12550 |
AE92..XL..GEN |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80051 |
AE92..XL..GEN |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81524-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81521-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81521-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81524-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81524-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81521-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81521-12540 |
AE92..XL..GEN NO.2 |
1 | ||
| 81524-12550 |
AE92..XL..GEN NO.1 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-12550 |
AE92..XL..GEN |
1 | ||
| 81512-12550 |
AE92..XL..GEN |
1 | ||
| Common parts | ||||
| 81519-95406 | ||||
| 90179-06007 | ||||
