AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

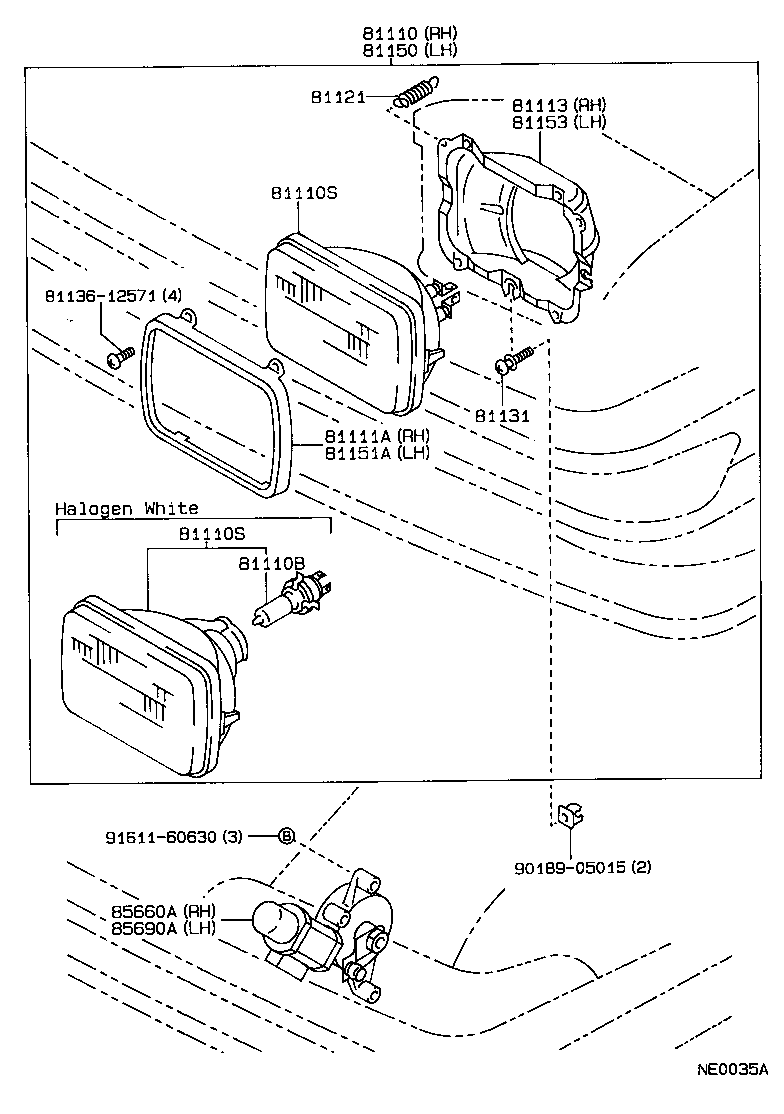

Click highlighted areas on diagram

AE92..LHD..2D (LH TRAFFIC SPEC)

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 85660A 85690A 9018905015 9161160630
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-17020

AE92..RHD..XL..GEN

HALOGEN

 1
81110-17010

AE92..RHD..XL..GEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

EE90..GL;EE90..XL..SA;AE92..GT,GTI,XL

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

AE92..RHD..XL..GEN

12V 60/55W,*HWS

 2
90981-04029

AE92..RHD..XL..GEN

12V 65/55W,*WB,12V 65/55W,*WB,LH TRAFIC SPEC

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

AE92..RHD..XL..GEN

12V 60/55W,*HWS

 2
90981-04029

AE92..RHD..XL..GEN

12V 65/55W,*WB,12V 65/55W,*WB,LH TRAFIC SPEC

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010

AE92..RHD..XL..GEN

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010

AE92..RHD..XL..GEN

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

AE92..RHD..XL..GEN

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010

AE92..RHD..XL..GEN

 4
81150 - HEADLAMP ASSY, LH
81150-17020

AE92..RHD..XL..GEN

HALOGEN

 1
81150-17010

AE92..RHD..XL..GEN

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010

AE92..RHD..XL..GEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010

AE92..RHD..XL..GEN

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-12020

AE92..XL..GEN

 1
85660-12021

AE92..XL..GEN

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-12021

AE92..XL..GEN

 1
85690-12020

AE92..XL..GEN

 1
Common parts
81136-12571
90189-05015
91611-60630
