AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb

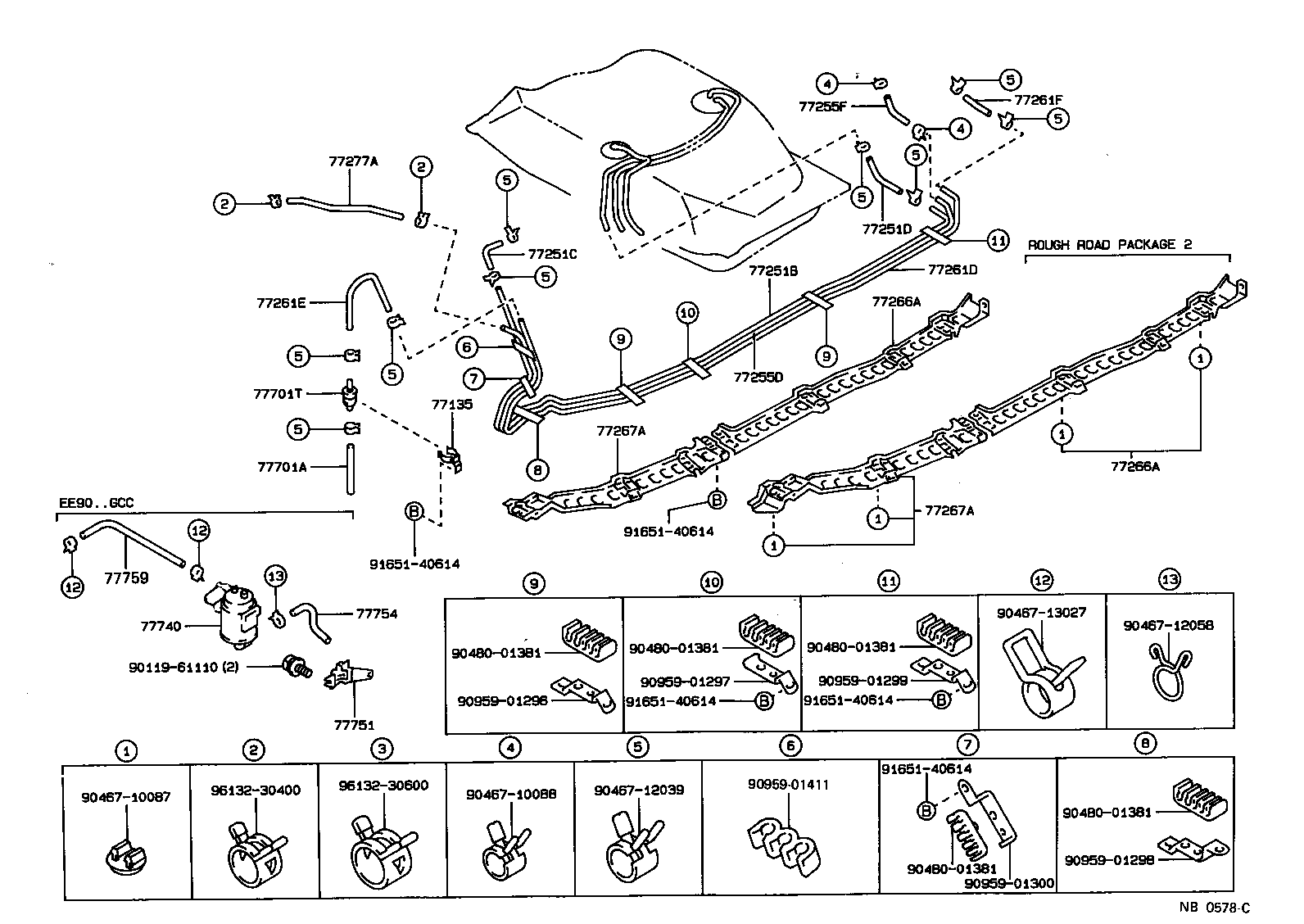

ILLUST NO. 2 OF 2(8908- )GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE90..GEN,SA |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12470 |
AE92,EE90..RHD..(GL,STD,XL) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
AE92,EE90..RHD..(GL,STD,XL) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
EE90;AE92..RHD..XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..GL,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..GL,SR5,STD,XL *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12410 |
AE92..RHD..(STD,XL) |
1 | ||
| 77255-12410 |
EE90..RHD..GEN;AE92..RHD..(STD,XL) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE92..RHD..XL *H,L=150 |
1 | ||
| 95333-04015 |
AE92..STD,XL *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE92,EE90..RHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77259-12140 |
AE92,EE90..GEN,SA |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77259-12140 |
AE92,EE90..GEN,SA |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
EE90;AE92..RHD;AE92..LHD..GTI *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266-12030 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266-12030 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE92..SR5,STD,XL |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,EE90..GEN,SA |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE92,EE90..GEN |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90162-30800 | ||||
| 90467-10087 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40610 | ||||
| 91661-40612 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

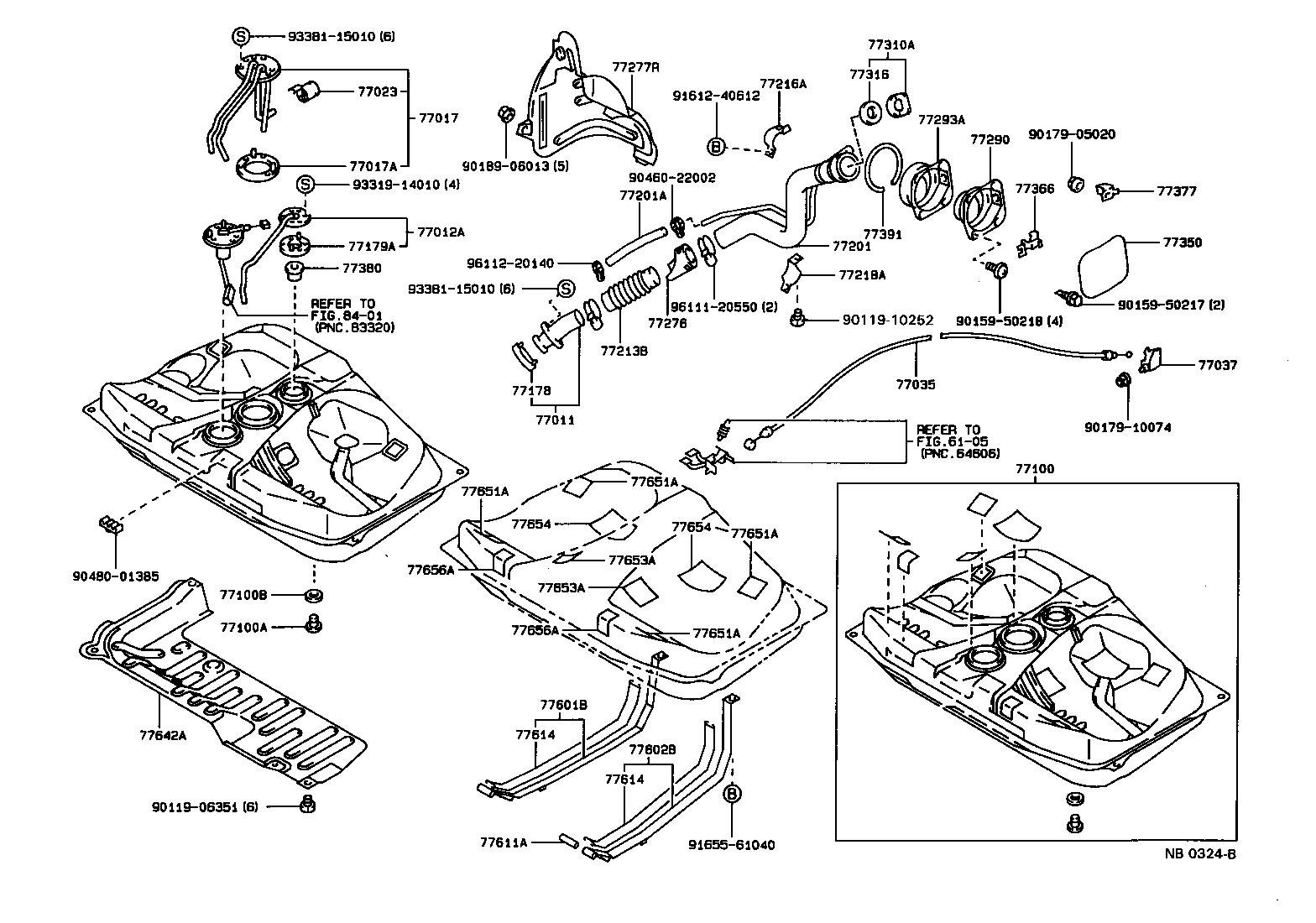

ILLUST NO. 1 OF 2(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12040 |
AE92..XL |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12040 |
AE92..XL..GEN |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12370 |
AE92..XL..GEN |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-16020 |
AE92..XL..GEN |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE92..XL |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12160 |
AE92..RHD..XL..GEN |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE92,EE90..GL,GT,GTI,SR5,XL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19525 |
AE92..XL..GEN |
1 | ||
| 77001-19515 |
AE92..XL..GEN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE92,EE90 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE92,EE90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-12010 |
AE92,EE90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE92,EE90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE92,EE90 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22024 |
AE92,EE90 L=385 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE92,EE90 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12040 |
AE92,EE90 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12010 |
AE92,EE90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12040 |
AE92,EE90 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12100 |
AE92..XL..GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE92,EE90 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE92,EE90 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE92,EE90 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE92,EE90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12210 |
AE92..XL..GEN |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
AE92..XL..GEN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE92..GT;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 77377-12040 |
AE92,EE90..GL,GT,GTI,SR5,XL |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE92,EE90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE92,EE90 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12140 |
AE92..XL..GEN ROUGH RODE PACKAGE 1 |
1 | ||
| 77601-12120 |
AE92..XL..GEN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12090 |
AE92..XL..GEN ROUGH RODE PACKAGE 1 |
1 | ||
| 77602-12070 |
AE92..XL..GEN |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AE92,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,EE90 |
2 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-12120 |
AE92..XL..GEN ROUGH RODE PACKAGE 1 |
1 | ||
| 77642-12020 |
AE92..XL ROUGH RODE PACKAGE 1 |
1 | ||
| 77642-12020 |
AE92..XL..GEN ROUGH RODE PACKAGE 1 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AE92..XL..GEN |
4 | ||
| 77651-20040 |
AE92..XL |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AE92..XL..GEN |
4 | ||
| 77651-20040 |
AE92..XL |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AE92..XL..GEN |
4 | ||
| 77651-20040 |
AE92..XL |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AE92..XL..GEN |
4 | ||
| 77651-20040 |
AE92..XL |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12080 |
AE92..XL..GEN |
2 | ||
| 77653-12060 |
AE92..XL |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12080 |
AE92..XL..GEN |
2 | ||
| 77653-12060 |
AE92..XL |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12070 |
AE92..XL..GEN |
2 | ||
| 77652-12060 |
AE92..XL |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12070 |
AE92..XL..GEN |
2 | ||
| 77652-12060 |
AE92..XL |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12050 |
AE92..XL..GEN |
2 | ||
| 77654-12040 |
AE92..XL |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12050 |
AE92..XL..GEN |
2 | ||
| 77654-12040 |
AE92..XL |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-10252 | ||||
| 90159-50217 | ||||
| 90159-50218 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90480-01385 | ||||
| 91612-40612 | ||||
| 91655-61040 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-20550 | ||||
| 96112-20140 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 8401 | ||||

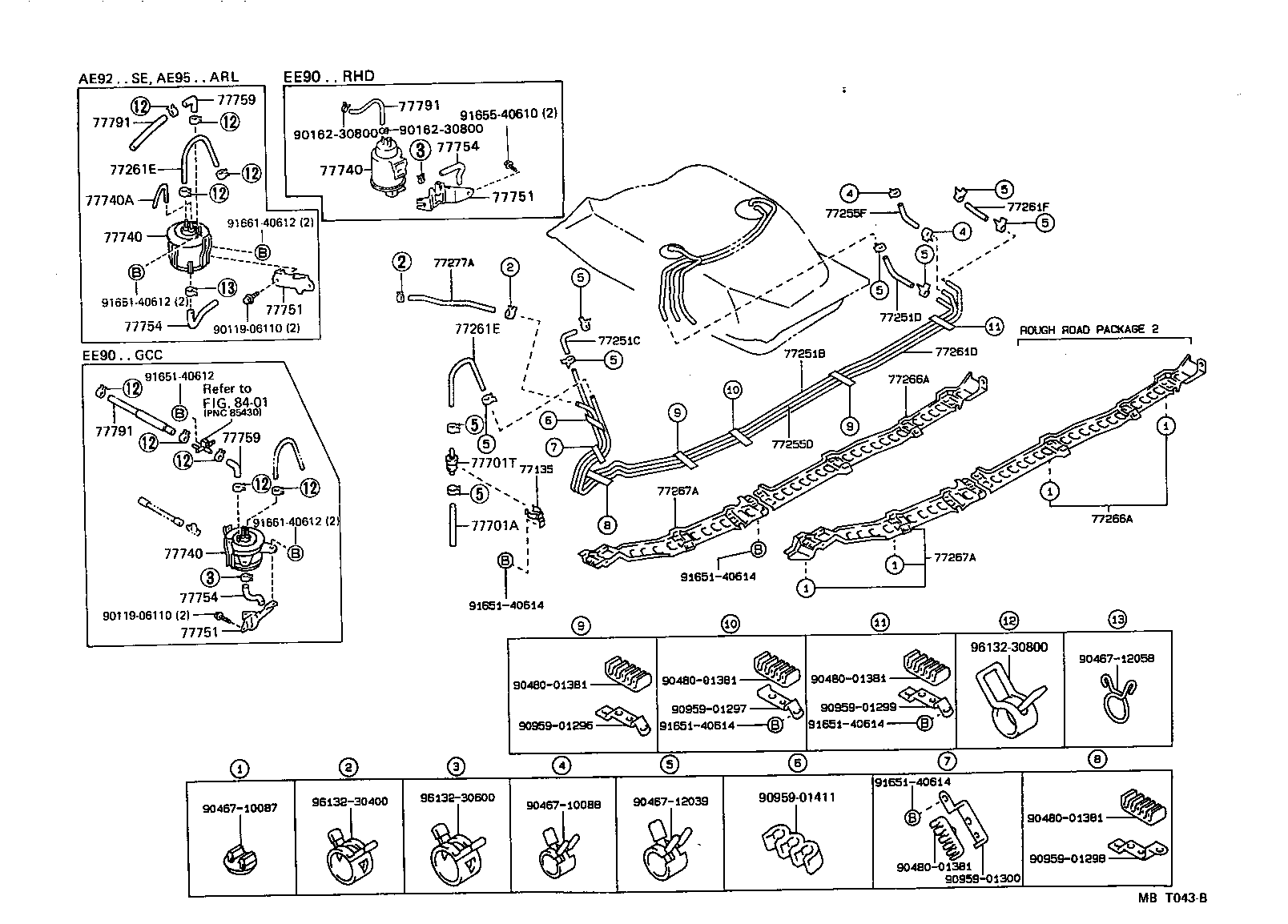

ILLUST NO. 2 OF 2(8705-8908)GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE90..GEN,SA |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12470 |
AE92,EE90..RHD..(GL,STD,XL) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
AE92,EE90..RHD..(GL,STD,XL) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
EE90;AE92..RHD..XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..GL,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..GL,SR5,STD,XL *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12410 |
AE92..RHD..(STD,XL) |
1 | ||
| 77255-12410 |
EE90..RHD..GEN;AE92..RHD..(STD,XL) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE92..RHD..XL *H,L=150 |
1 | ||
| 95333-04015 |
AE92..STD,XL *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE92,EE90..RHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77259-12140 |
AE92,EE90..GEN,SA |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
EE90;AE92..RHD;AE92..LHD..GTI *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266-12030 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77266-12030 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77266-12030 |
AE92,EE90 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
AE92,EE90 |
1 | ||
| 77267-12060 |
EE90;AE92..RHD;AE92..LHD..GTI |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE92..SR5,STD,XL |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,EE90..GEN,SA |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE92,EE90..GEN |
1 | ||
| Common parts | ||||
| 90119-61110 | ||||
| 90467-10087 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
