AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb

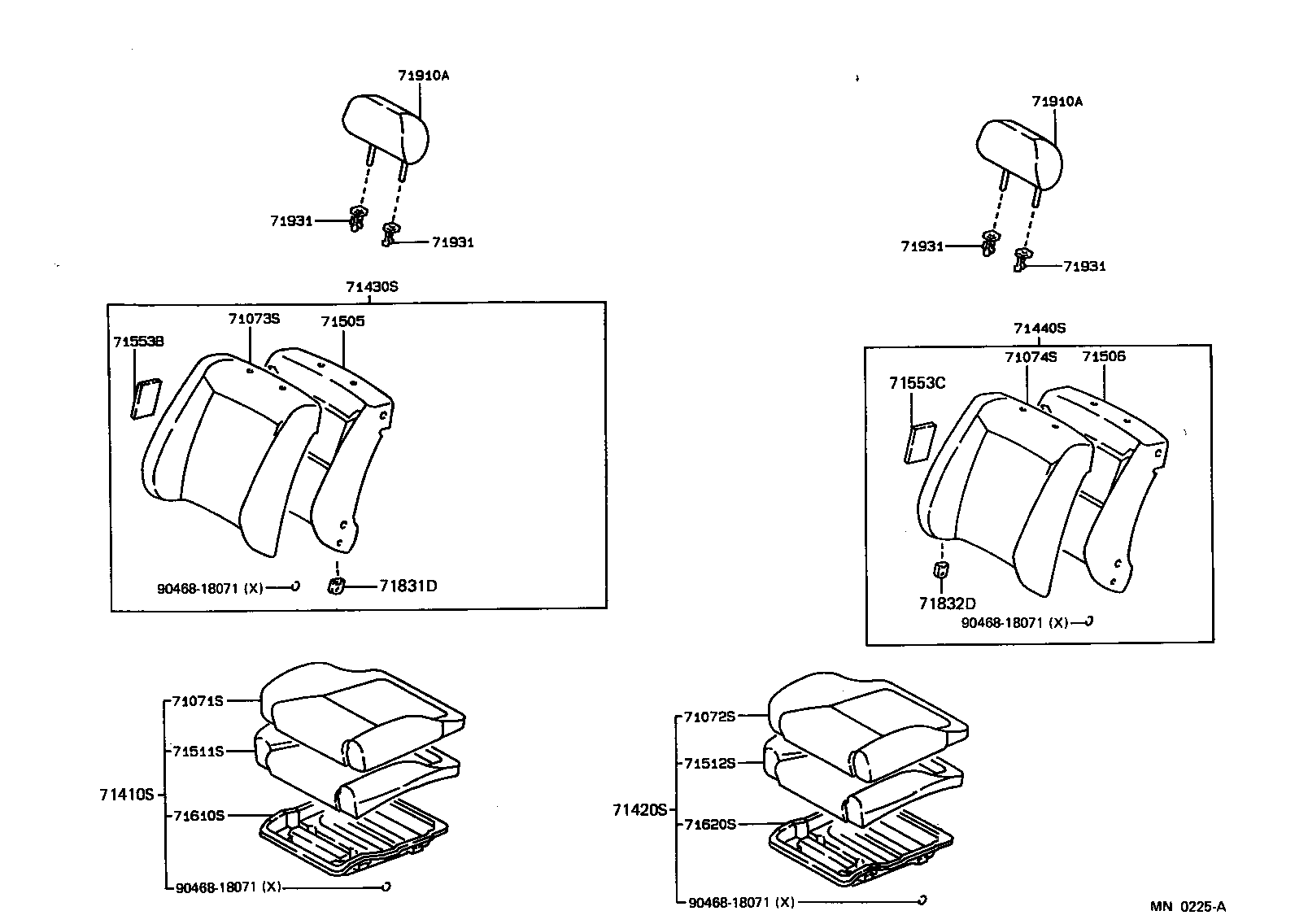

ILLUST NO. 1 OF 2(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H47004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H47005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H47003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K14003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K14004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H47004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H47005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H47003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K14004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1K14003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H40004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71073-1H40005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H40003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H72003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H72004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E34004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71074-1E34003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E34005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E71004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71074-1E71003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H87005 |
AE92..RHD..XL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H87003 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H87004 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H89103 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H89104 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H87003 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H87004 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H87005 |
AE92..RHD..XL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H89103 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H89104 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H75004 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H75005 |
AE92..RHD..XL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H75003 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H77104 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H77103 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H65004 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H65003 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H65005 |
AE92..RHD..XL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H67104 |
AE92..RHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H67103 |
AE92..RHD..XL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12090 |
AE92..RHD..XL..GEN |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12060 |
AE92..RHD..XL..GEN |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12640 |
AE92..RHD..XL..GEN |
1 | ||
| 71511-12640 |
AE92..XL..GEN |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12640 |
AE92..XL..GEN |
1 | ||
| 71511-12640 |
AE92..RHD..XL..GEN |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
EE90;AE92..RHD..(STD,XL) |
1 | ||
| 71553-12220 |
AE92..RHD..XL..GEN |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
EE90;AE92..RHD..(STD,XL) |
1 | ||
| 71553-12220 |
AE92..RHD..XL..GEN |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12320 |
AE92..RHD..XL..GEN |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-12320 |
AE92..RHD..XL..GEN |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
EE90;AE92..GCC;AE92..RHD..(STD,XL) |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
EE90;AE92..GCC;AE92..RHD..(STD,XL) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1283005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
2 | ||
| 71910-1283003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1283004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
2 | ||
| 71910-1A25003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A25004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1283005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
2 | ||
| 71910-1283003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1283004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
2 | ||
| 71910-1A25003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A25004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||

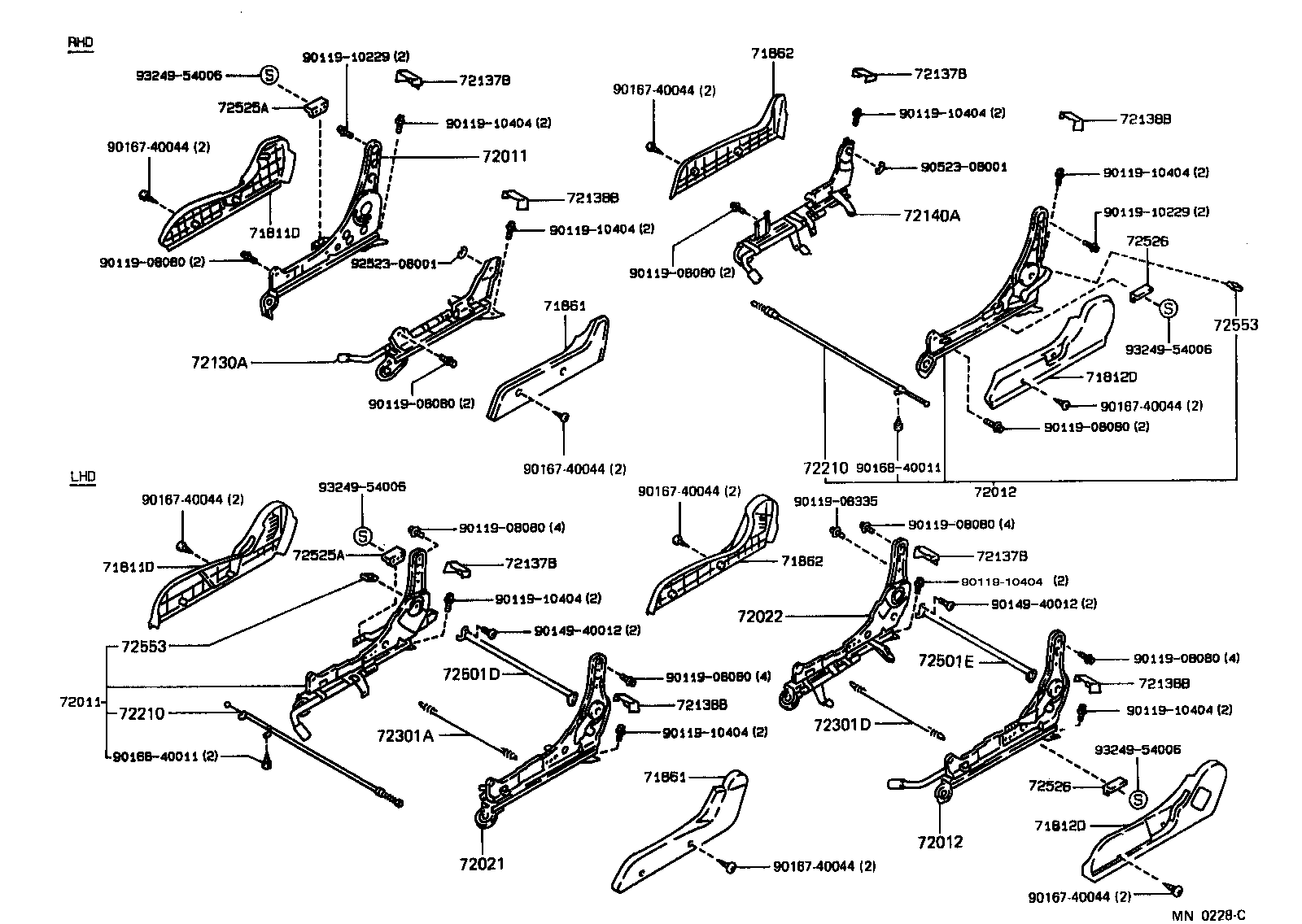

ILLUST NO. 2 OF 2(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1220005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71811-1220003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1220004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1220005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71811-1220003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1220004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1217005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71812-1217003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1217004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1217005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71812-1217003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1217004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1215005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71861-1215003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1215004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1215005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71861-1215003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1215004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1214005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71862-1214004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71862-1214003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1214005 |
AE92..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71862-1214004 |
AE92..RHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71862-1214003 |
AE92..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12540 |
AE92..RHD..XL..GEN |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12540 |
AE92..RHD..XL..GEN |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12530 |
AE92..RHD..XL..GEN |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12530 |
AE92..RHD..XL..GEN |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12520 |
AE92..RHD..XL..GEN |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92..XL;EE90..XL..SA;EE90..GCC,GEN DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203004 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203003 |
AE92,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E0 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12440 |
AE92..RHD..XL..GEN |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12210 |
AE92..RHD..XL..GEN |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12210 |
AE92..RHD..XL..GEN |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209003 |
AE92,EE90 GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209003 |
AE92,EE90 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203025 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE92,EE90 GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203025 |
AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE92,EE90 GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE92,EE90..2D,3D |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE92,EE90..2D,3D |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90523-08001 | ||||
| 92523-08001 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
