AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8705- )AE92..XL..GEN

Click highlighted areas on diagram

diagram 67601 67601 67601E 67601E 67601H 67601H 67602 67602 67602A 67602A 68170 68170 7401 7401 8401 8401 9015940151 9015940151 9018904126 9018904126
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A74003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67650-1A74005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
67650-1A74004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67610-1E89003

AE92..RHD..XL..GEN

W(*PW & *EL),SHADOW GRAY,TRIM1#

 1
67610-1E89004

AE92..RHD..XL..GEN

W(*PW & *EL),DARK BLUE,TRIM8#

 1
67610-1E81004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67610-1E81003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A74003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67650-1A74005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
67650-1A74004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67610-1E89003

AE92..RHD..XL..GEN

W(*PW & *EL),SHADOW GRAY,TRIM1#

 1
67610-1E89004

AE92..RHD..XL..GEN

W(*PW & *EL),DARK BLUE,TRIM8#

 1
67610-1E81004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67610-1E81003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000204

AE92..XL

DARK BLUE,TRIM8#

 4
90339-1000205

AE92..XL..GEN

DARK BEIGE,TRIM4#

 4
90339-10002E1

AE92..XL..GEN

DARK BEIGE,TRIM4#

 4
90339-10002B3

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 4
90339-1000213

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 4
90339-10002J1

AE92..XL..GEN

DARK BLUE,TRIM8#

 4
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000204

AE92..XL

DARK BLUE,TRIM8#

 4
90339-1000205

AE92..XL..GEN

DARK BEIGE,TRIM4#

 4
90339-10002E1

AE92..XL..GEN

DARK BEIGE,TRIM4#

 4
90339-10002B3

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 4
90339-1000213

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 4
90339-10002J1

AE92..XL..GEN

DARK BLUE,TRIM8#

 4
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92..XL;EE90..GL

 8
67771-12040

AE92..XL

 8
67771-12050

EE90..GL;AE92..XL..GEN

 8
67771-12050

AE92..XL..GEN

 8
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92..XL;EE90..GL

 8
67771-12040

AE92..XL

 8
67771-12050

EE90..GL;AE92..XL..GEN

 8
67771-12050

AE92..XL..GEN

 8
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H07004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67620-1H07003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67620-1H07005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
67620-1K11003

AE92..RHD..XL..GEN

W(*PW & *EL),SHADOW GRAY,TRIM1#

 1
67620-1K02004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67620-1K02003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67620-1K11004

AE92..RHD..XL..GEN

W(*PW & *EL),DARK BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H07004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67620-1H07003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67620-1H07005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
67620-1K11003

AE92..RHD..XL..GEN

W(*PW & *EL),SHADOW GRAY,TRIM1#

 1
67620-1K02004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
67620-1K02003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
67620-1K11004

AE92..RHD..XL..GEN

W(*PW & *EL),DARK BLUE,TRIM8#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92..XL;EE90..GL

 8
67771-12040

AE92..XL

 8
67771-12050

EE90..GL;AE92..XL..GEN

 8
67771-12050

AE92..XL..GEN

 8
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92..XL;EE90..GL

 8
67771-12040

AE92..XL

 8
67771-12050

EE90..GL;AE92..XL..GEN

 8
67771-12050

AE92..XL..GEN

 8
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12290

AE92..XL..GEN

RH

 1
68220-12200

AE92..XL..GEN

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12290

AE92..XL..GEN

RH

 1
68220-12200

AE92..XL..GEN

LH

 1
Common parts
90159-40151
90189-04126
Linked diagrams
7401
8401

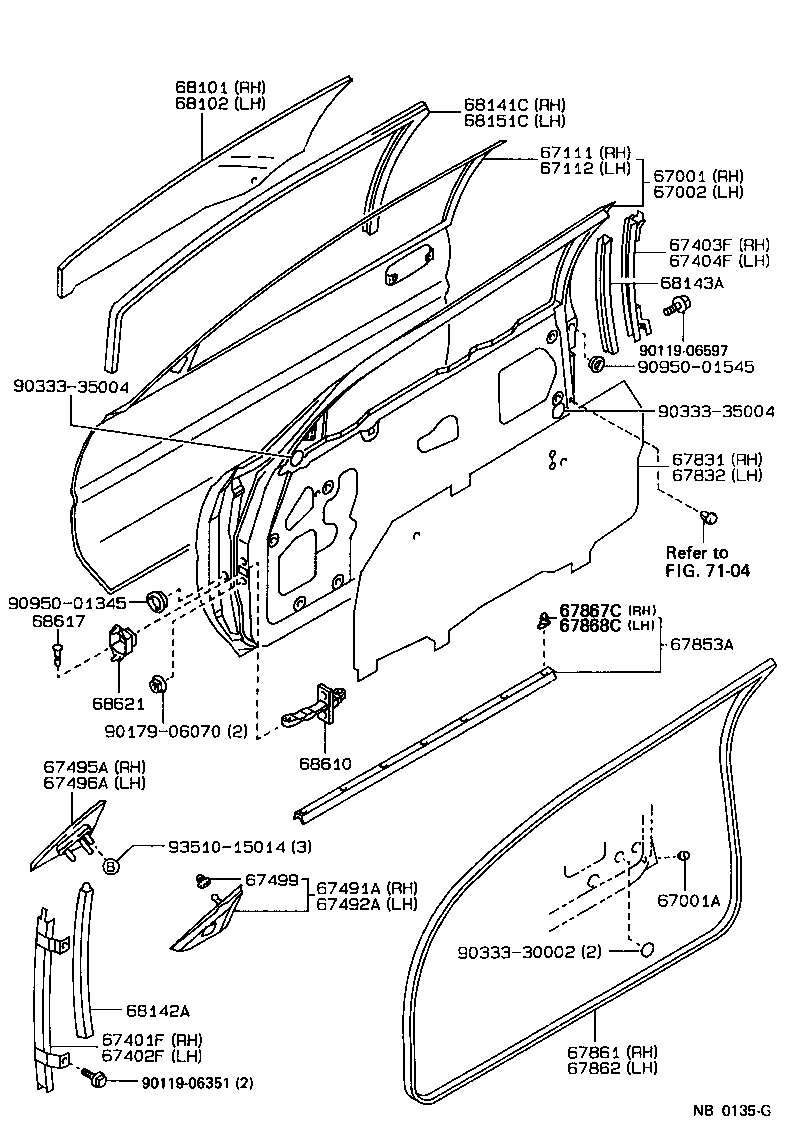

ILLUST NO. 1 OF 2(8705- )AE92..XL..GEN

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67491A 67492A 67495A 67496A 67499 67831 67832 67853A 67861 67862 67867C 67868C 68101 68102 68141C 68142A 68143A 68151C 68610 68617 68621 7104 9011906351 9011906597 9017906070 9033330002 9033335004 9033335004 9095001345 9095001545 9351015014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A310

AE92..XL..GEN

 1
67001-1A300

AE92..XL..GEN

 1
67001-1A360

AE92..XL..GEN

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09130

AE92..XL..GEN

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A280

AE92..XL..GEN

 1
67002-1A290

AE92..XL..GEN

 1
67002-1A340

AE92..XL..GEN

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12490

AE92..XL..GEN

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12480

AE92..XL..GEN

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12300

AE92..XL..GEN

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12320

AE92..XL..GEN

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12130

AE92..XL..GEN

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12130

AE92..XL..GEN

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12210

AE92..XL..GEN

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12210

AE92..XL..GEN

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-12150

AE92..XL..GEN

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-12150

AE92..XL..GEN

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-32010

AE92,EE90

 2
67499-32010

AE92..XL

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12450

AE92..XL..GEN

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-12450

AE92..XL..GEN

 1
67853A - WEATHERSTRIP, FRONT DOOR, OUTER LOWER
67853-12030

AE92..XL..GEN

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12650

AE92..XL..GEN

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67861-12650

AE92..XL..GEN

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-12050

AE92..XL..GEN

 7
67868-12020

AE92..XL..GEN

 7
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-12020

AE92..XL..GEN

 7
67868-12050

AE92..XL..GEN

 7
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-12720

AE92..XL..GEN

*TT,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-12720

AE92..XL..GEN

*TT,T=4.0

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12370

AE92..XL..GEN

 1
68142A - RUN, FRONT DOOR GLASS SIDE
68144-12070

AE92..XL..GEN

LH

 1
68142-12150

AE92..XL..GEN

RH

 1
68143A - RUN, FRONT DOOR GLASS, NO.2
68143-12100

AE92..XL..GEN

RH

 1
68145-12060

AE92..XL..GEN

LH

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12090

AE92..XL..GEN

 1
68610 - CHECK ASSY, FRONT DOOR
68610-12060

AE92..XL..GEN

 2
68617 - PIN, FRONT DOOR CHECK
68617-90K00

AE92..XL..GEN

 2
68621 - SEAL, DOOR CHECK
68621-12020

AE92..XL..GEN

 2
Common parts
90119-06351
90119-06597
90179-06070
90333-30002
90333-35004
90950-01345
90950-01545
93510-15014
Linked diagrams
7104
