AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

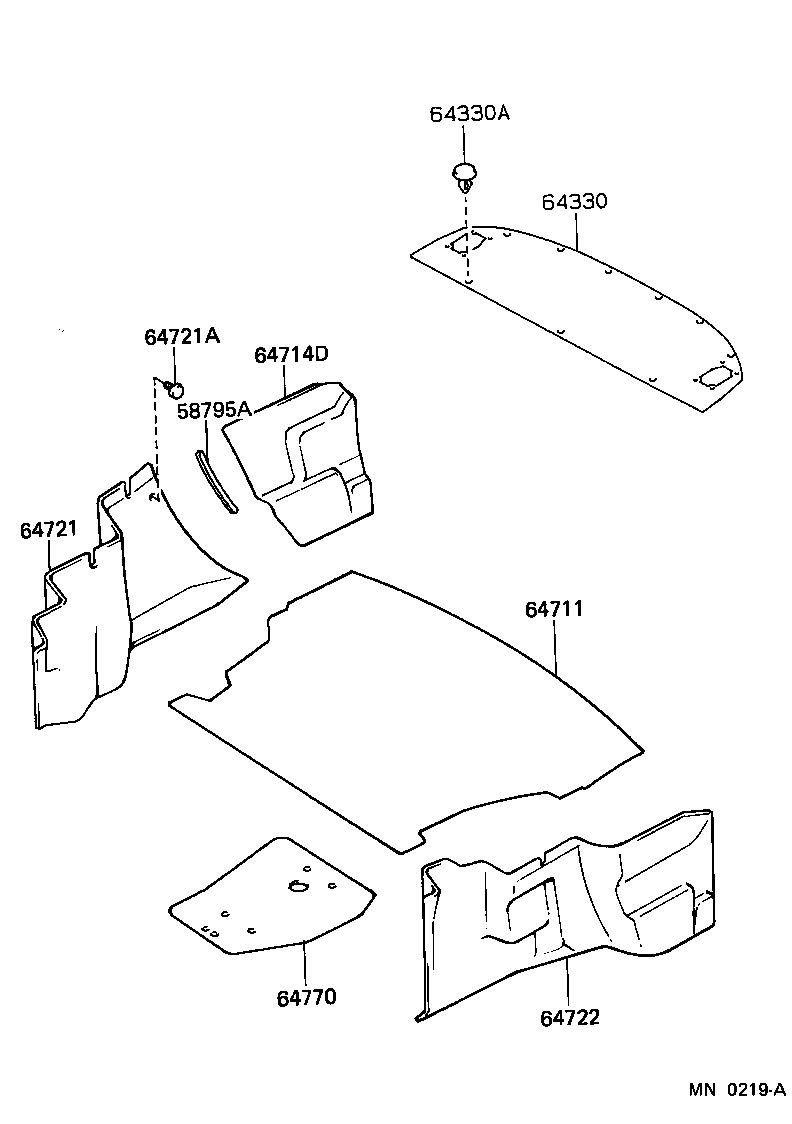

Click highlighted areas on diagram

diagram 58795A 64330 64330A 64711 64714D 64721 64721A 64722 64770
Part # Description Qty Price
58795A - TRIM, JACK HOUSE OPENING
58795-16020

AE92..XL..GEN

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1A07005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
64330-1A07004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
64330-1A07003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0804603

AE92..XL..GEN

GRAY,TRIM1#

 3
90467-0804605

AE92..XL..GEN

DARK BEIGE,TRIM4#

 3
90467-08046B1

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 3
90467-08046E1

AE92..XL..GEN

DARK BEIGE,TRIM4#

 3
90467-0804624

AE92..XL

DARK BLUE,TRIM8#

 3
90467-08046J0

AE92..XL..GEN

LIGHT BLUE,TRIM8#

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-1223003

AE92..XL..GEN

GRAY,TRIM1#,4#,8#

 1
64711-1228003

AE92..XL..GEN

GRAY,TRIM1#,8#

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-1211003

AE92..XL..GEN

GRAY,TRIM1#,8#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-1206003

AE92..XL..GEN

GRAY,TRIM1#,8#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

AE92..XL..GEN

LIGHT GRAY,TRIM1#,8#

 2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-1207003

AE92..XL..GEN

GRAY,TRIM1#,8#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-12110

AE92..XL..GEN

 1
