AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
ILLUST NO. 2 OF 2(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-12130 |
AE92..XL..GEN |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-12130 |
AE92..XL..GEN |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-12070 |
AE92..XL..GEN |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-12070 |
AE92..XL..GEN |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12040 |
AE92..XL..GEN |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
AE92..XL..GEN L=400,RR |
2 | ||
| 63249-12110 |
AE92..XL..GEN FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
AE92..XL..GEN L=400,RR |
2 | ||
| 63249-12110 |
AE92..XL..GEN FR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12050 |
AE92..XL..GEN |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12061 |
AE92..XL..GEN |
1 | ||
| 63223-12060 |
AE92..XL..GEN |
1 | ||
| 63223-12062 |
AE92..XL..GEN |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12050 |
AE92..XL..GEN |
1 | ||
| 63224-12051 |
AE92..XL..GEN |
1 | ||
| 63224-12052 |
AE92..XL..GEN |
1 | ||
| 63251J - WEATHERSTRIP, SLIDING ROOF, NO.2 | ||||
| 63251-12060 |
AE92..XL |
1 | ||
| 63251-12062 |
AE92..XL..GEN |
1 | ||
| 63251-12061 |
AE92..XL..GEN |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-12060 |
AE92..XL..GEN |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12061 |
AE92..XL..GEN |
1 | ||
| 63260-12060 |
AE92..XL..GEN |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-12030 |
AE92..XL..GEN |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-12030 |
AE92..XL..GEN |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AE92..XL..GEN |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-12020 |
AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
2 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
AE92..XL..GEN T=1.0,FR |
1 | ||
| 63277-24010 |
AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) T=1.0,RR |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
AE92..XL..GEN T=1.0,FR |
1 | ||
| 63277-24010 |
AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) T=1.0,RR |
1 | ||
| 63279A - BRACKET, HOUSING TO RAIL, NO.3 | ||||
| 63279-20010 |
AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12030 |
AE92..XL |
1 | ||
| 63699-12040 |
AE92..XL..GEN |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90159-60081 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50007 | ||||
| 90168-40090 | ||||
| 90168-50031 | ||||
| 90179-06167 | ||||
| 90189-04014 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

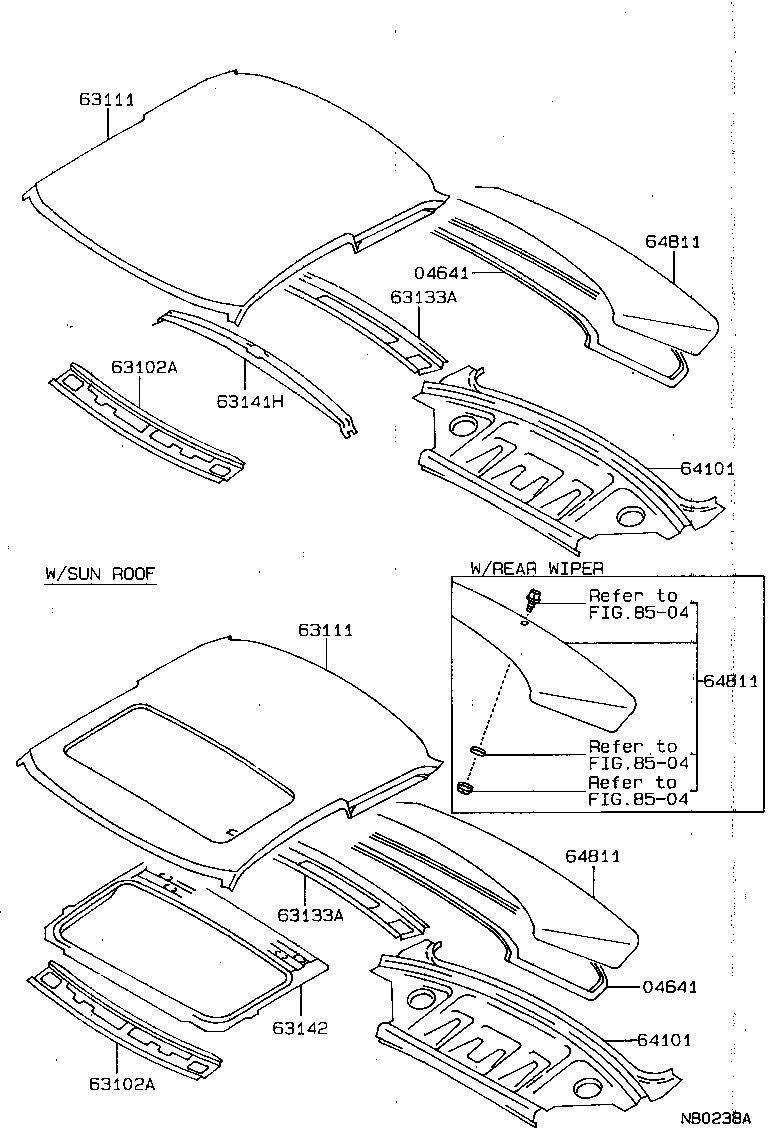

ILLUST NO. 1 OF 2(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE92,EE90 |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE92,EE90 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12060 |
AE92..XL..GEN |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12060 |
AE92..XL..GEN |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12902 |
AE92..RHD..XL..GEN W(SUN ROOF) |
1 | ||
| 63111-12900 |
AE92..RHD..XL..GEN |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12902 |
AE92..RHD..XL..GEN W(SUN ROOF) |
1 | ||
| 63111-12900 |
AE92..RHD..XL..GEN |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12180 |
AE92..XL..GEN |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12180 |
AE92..XL..GEN |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-12140 |
AE92..XL..GEN |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12040 |
AE92..XL..GEN |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12390 |
AE92..XL..GEN |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12390 |
AE92..XL..GEN |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE92..XL..GEN *EHTT,T=3.5 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE92..XL..GEN *EHTT,T=3.5 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE92..XL..GEN *EHTT,T=3.5 |
1 | ||
| Linked diagrams | ||||
| 8504 | ||||
