AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

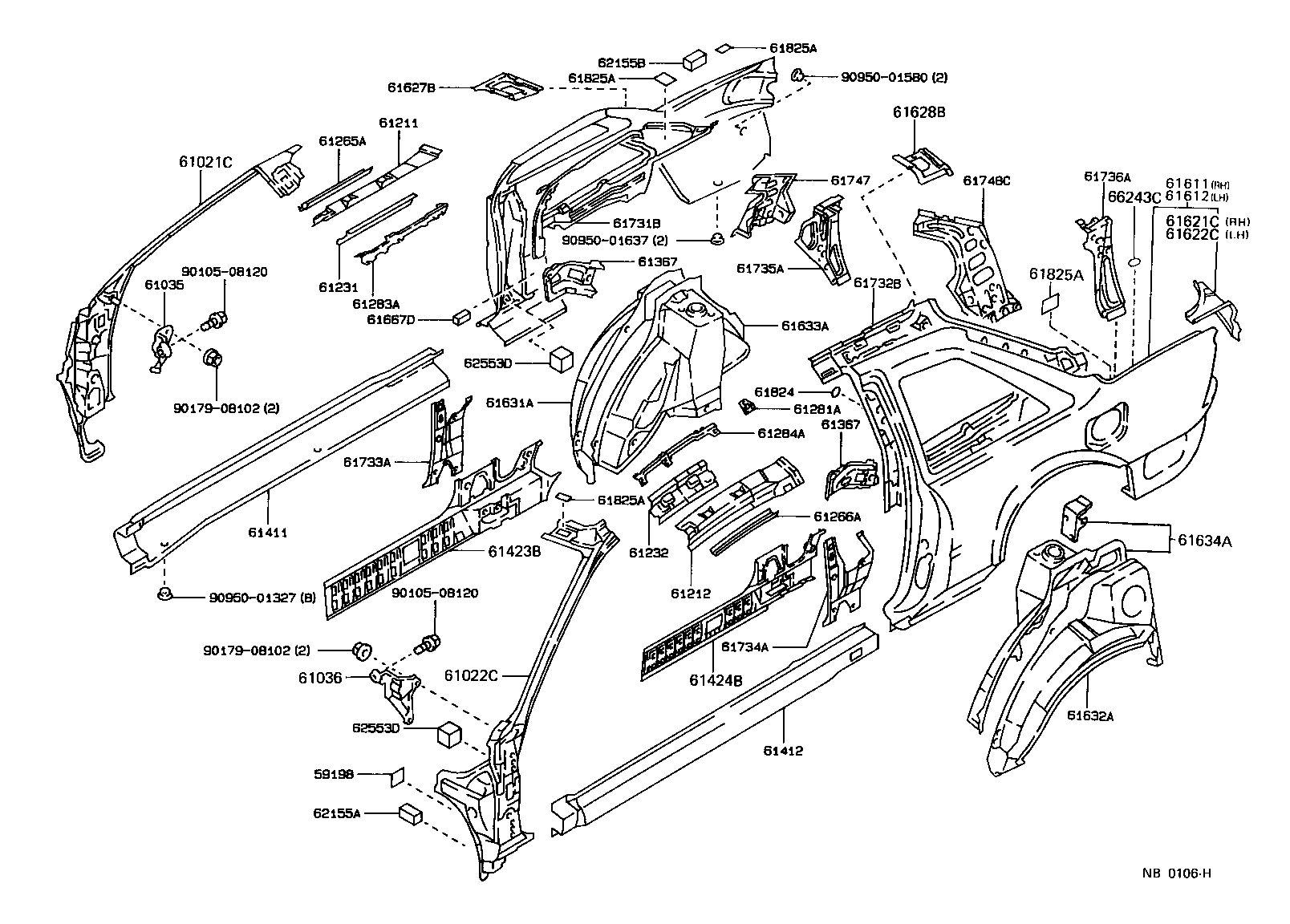

Click highlighted areas on diagram

diagram 59198 61021C 61022C 61035 61036 61211 61212 61231 61232 61265A 61266A 61281A 61283A 61284A 61367 61367 61411 61412 61423B 61424B 61611 61612 61621C 61622C 61627B 61628B 61631A 61632A 61633A 61634A 61667D 61731B 61732B 61733A 61734A 61735A 61736A 61747 61748C 61824 61825A 61825A 61825A 61825A 62155A 62155B 62553D 62553D 66243C 9010508120 9010508120 9017908102 9017908102 9095001327 9095001580 9095001637
Part # Description Qty Price
59198 - SEAL, NOISE SHUTTER
59198-12010

AE92..XL..GEN

 1
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12740

AE92..RHD..XL..GEN

 1
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-12750

AE92..RHD..XL..GEN

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61166-12060

AE92..RHD..XL..GEN

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12260

AE92..XL..GEN

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12260

AE92..XL..GEN

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-12630

AE92..RHD..XL

 1
61231-12630

AE92..XL..GEN

 1
61231-12630

AE92..XL

 2
61231-12630

AE92..XL

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-12580

AE92..XL

 1
61232-12580

AE92..XL..GEN

W(SUN ROOF)

 1
61232-12580

AE92..XL..GEN

 1
61232-12490

AE92..XL..GEN

 1
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-12150

AE92..XL..GEN

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-12150

AE92..XL..GEN

 1
61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61281-12040

AE92..XL..GEN

 2
61281-12070

AE92..XL..GEN

 2
61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61283-12050

AE92..XL..GEN

 1
61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61284-12050

AE92..XL..GEN

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-12050

AE92..XL..GEN

RH

 1
61368-12030

AE92..XL..GEN

LH

 1
61368-12040

AE92..XL..GEN

LH

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-12050

AE92..XL..GEN

RH

 1
61368-12030

AE92..XL..GEN

LH

 1
61368-12040

AE92..XL..GEN

LH

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12400

AE92..XL..GEN

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12390

AE92..XL..GEN

 1
61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH
61423-12020

AE92..XL..GEN

 1
61423-12050

AE92..XL..GEN

 1
61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH
61424-12040

AE92..XL..GEN

 1
61424-12010

AE92..XL..GEN

 1
61611 - PANEL, QUARTER, RH
61601-1E903

AE92..XL..GEN

 1
61612 - PANEL, QUARTER, LH
61602-1E909

AE92..XL..GEN

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-12320

AE92..XL..GEN

 1
61621-12321

AE92..XL..GEN

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-12320

AE92..XL..GEN

 1
61622-12321

AE92..XL..GEN

 1
61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH
61627-12050

AE92..XL..GEN

 1
61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH
61628-12070

AE92..XL..GEN

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12250

AE92..XL..GEN

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12250

AE92..XL..GEN

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12280

AE92..XL..GEN

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12280

AE92..XL..GEN

 1
61667D - SEAL, QUARTER PANEL
61667-12060

AE92..XL..GEN

 2
61667-12060

AE92..XL..GEN

60X60

 2
61667-12070

AE92..XL..GEN

220X120

 2
61731B - PANEL, ROOF SIDE, INNER RH
61705-12950

AE92..XL..GEN

 1
61705-12953

AE92..XL..GEN

 1
61732B - PANEL, ROOF SIDE, INNER LH
61706-12955

AE92..XL..GEN

 1
61706-12958

AE92..XL..GEN

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-12140

AE92..XL..GEN

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-12140

AE92..XL..GEN

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-12901

AE92..XL..GEN

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-12901

AE92..XL..GEN

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-12150

AE92..XL..GEN

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-12150

AE92..XL..GEN

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12020

AE92..XL..GEN

 6
61824-12020

AE92,EE90

 6
61824-12020

AE92..XL

 4
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE92..XL

W(SUN ROOF),90 X 65

 4
61825-12010

AE92..XL

90 X 65

 6
61827-12010

AE92..XL

105 X 71

 2
61825-12010

AE92..XL..GEN

 4
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 6
61825-12010

AE92..XL..GEN

 8
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE92..XL

W(SUN ROOF),90 X 65

 4
61825-12010

AE92..XL

90 X 65

 6
61827-12010

AE92..XL

105 X 71

 2
61825-12010

AE92..XL..GEN

 4
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 6
61825-12010

AE92..XL..GEN

 8
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE92..XL

W(SUN ROOF),90 X 65

 4
61825-12010

AE92..XL

90 X 65

 6
61827-12010

AE92..XL

105 X 71

 2
61825-12010

AE92..XL..GEN

 4
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 6
61825-12010

AE92..XL..GEN

 8
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE92..XL

W(SUN ROOF),90 X 65

 4
61825-12010

AE92..XL

90 X 65

 6
61827-12010

AE92..XL

105 X 71

 2
61825-12010

AE92..XL..GEN

 4
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 6
61825-12010

AE92..XL..GEN

 8
61825-12010

AE92..XL..GEN

W(SUN ROOF)

 2
62155A - PAD, COWL SIDE LOWER SILENCER
62155-12010

AE92..XL..GEN

 2
62155B - PAD, QUARTER PANEL
62155-12010

AE92..XL..GEN

 2
62553D - PAD, PILLAR, NO.3
62553-12120

AE92,EE90..2D,5D

 2
62553D - PAD, PILLAR, NO.3
62553-12120

AE92,EE90..2D,5D

 2
66243C - PROTECTOR, REAR BODY, NO.1
66243-20010

AE92..XL..GEN

 4
Common parts
90105-08120
90179-08102
90950-01327
90950-01580
90950-01637
