AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

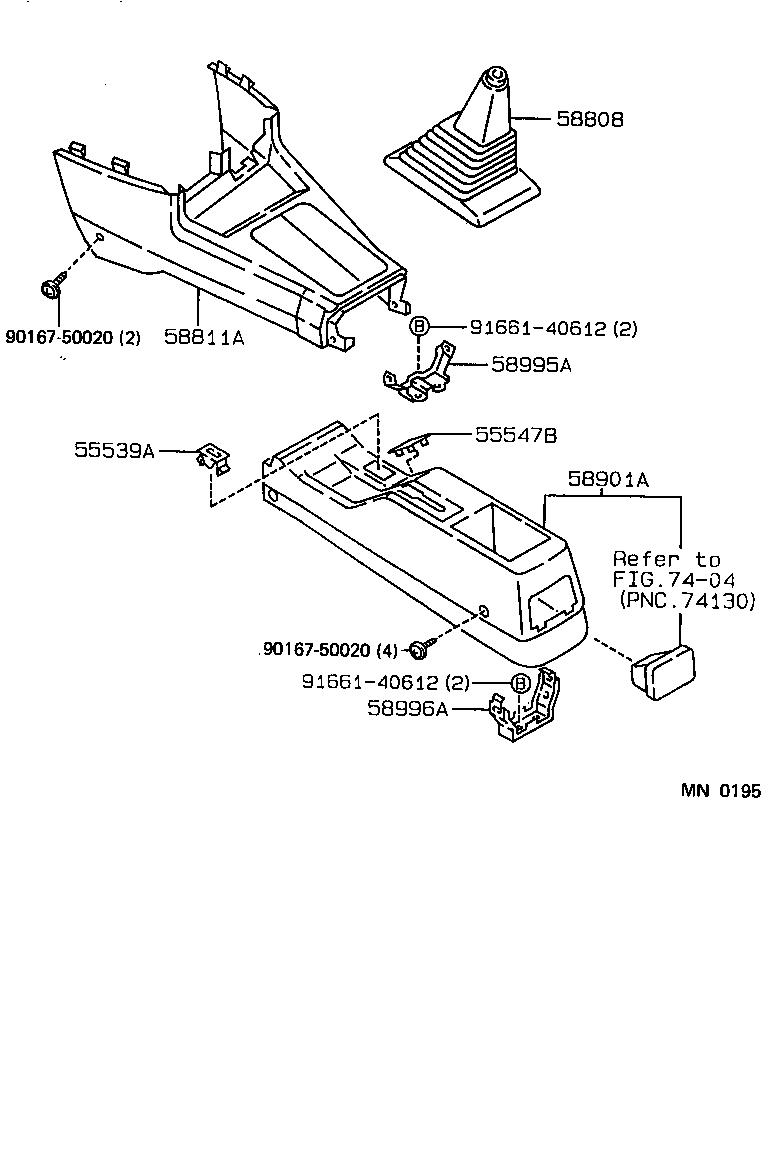

Click highlighted areas on diagram

diagram 55539A 55547B 58808 58811A 58901A 58995A 58996A 7404 9016750020 9016750020 9166140612 9166140612
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002005

AE92,EE90..STD,XL

BEIGE,TRIM4#

 1
55539-2002003

AE92,EE90..STD,XL

SHADOW GRAY,TRIM1#

 1
55539-20020J0

AE92..XL..GEN;EE90..LHD..XL

DARK BLUE,TRIM8#

 1
55539-2002034

AE92..XL;EE90..LHD..XL

DARK BLUE,TRIM8#

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002014

AE92..XL..GEN;EE90..LHD..(GL,XL)

DARK BLUE,TRIM8#

 1
55547-2002005

AE92,EE90..GL,STD,XL

DARK BEIGE,TRIM4#

 1
55547-2002003

AE92,EE90

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1209005

AE92,EE90..MTM..(GL,STD,XL)

DARK BEIGE,TRIM4#

 1
58808-1209004

AE92..5F..XL..GEN;EE90..LHD..MTM..(GL,XL)

DARK BLUE,TRIM8#

 1
58808-1209003

AE92..5F..XL;EE90..XL..SA;EE90..MTM..(GCC,GEN)

SHADOW GRAY,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-1241005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
58811-1241003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
58811-1241004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1214005

AE92,EE90..STD,XL

DARK BEIGE,TRIM4#

 1
58901-1214004

AE92..XL..GEN;EE90..LHD..XL

DARK BLUE,TRIM8#

 1
58901-1214003

AE92,EE90..SR5,STD,XL

SHADOW GRAY,TRIM1#

 1
58901-12140J0

AE92..XL..GEN;EE90..LHD..XL

DARK BLUE,TRIM8#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12060

AE92,EE90

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12030

AE92,EE90..SR5,STD,XL

 1
Common parts
90167-50020
91661-40612
Linked diagrams
7404
