AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

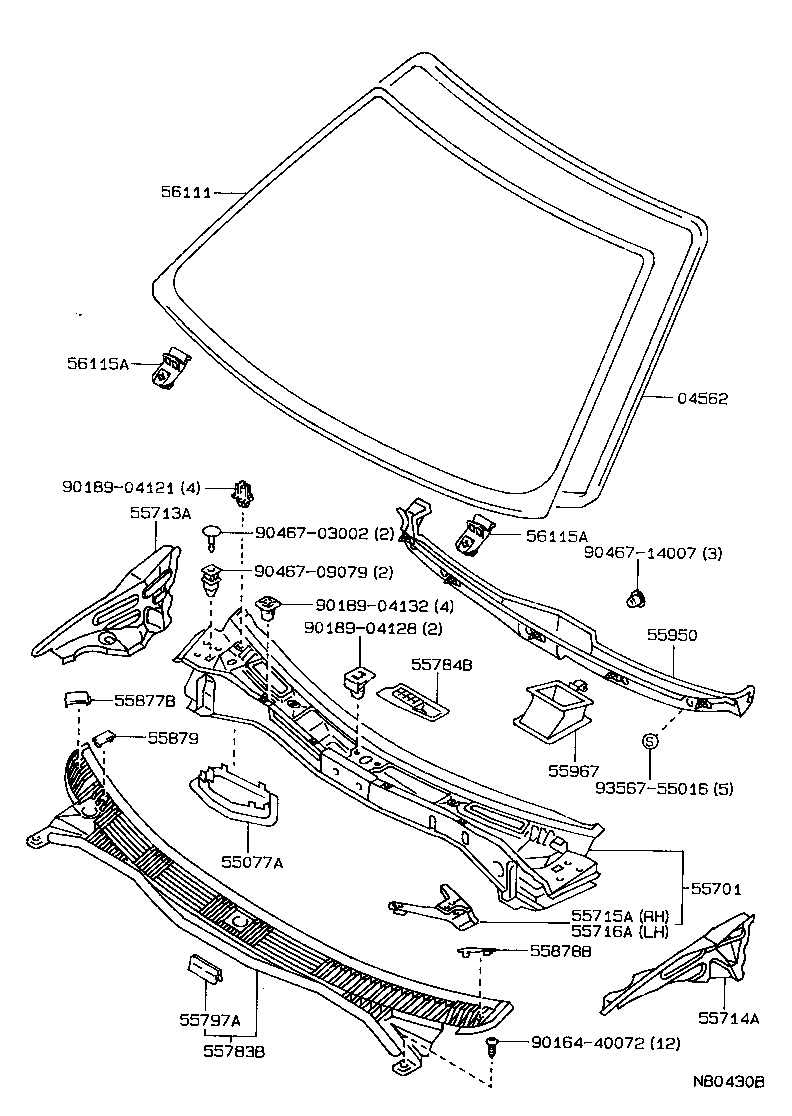

Click highlighted areas on diagram

diagram 04562 55077A 55701 55713A 55714A 55715A 55716A 55783B 55784B 55797A 55877B 55878B 55879 55950 55967 56111 56115A 56115A 9016440072 9018904121 9018904128 9018904132 9046703002 9046709079 9046714007 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE92,EE90

 1
55701 - PANEL SUB-ASSY, COWL
55700-12580

AE92..RHD..XL..GEN

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12070

AE92,EE90

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12070

AE92,EE90

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-12090

AE92,EE90

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-12090

AE92,EE90

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12040

AE92..RHD..XL..GEN

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-12070

AE92..RHD..XL..GEN

 1
55797A - SEAL, COWL WATER EXTRACT
55797-12010

AE92..XL..GEN

 1
55877B - COVER, COWL VENT, RH
55877-12060

AE92..XL..GEN

 1
55878B - COVER, COWL VENT, LH
55878-12020

AE92..XL..GEN

 1
55879 - PACKING, FRONT VENTILATOR
55879-12050

AE92..XL..GEN

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-12120

AE92..RHD..XL..GEN

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-12030

AE92..XL..GEN

 1
56111 - GLASS, WINDSHIELD
56111-12850

AE92..XL..GEN

*TL,T=5.3

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12030

AE92..XL..GEN

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12030

AE92..XL..GEN

 2
Common parts
90164-40072
90189-04121
90189-04128
90189-04132
90467-03002
90467-09079
90467-14007
93567-55016
