AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..RHD..XL..GEN

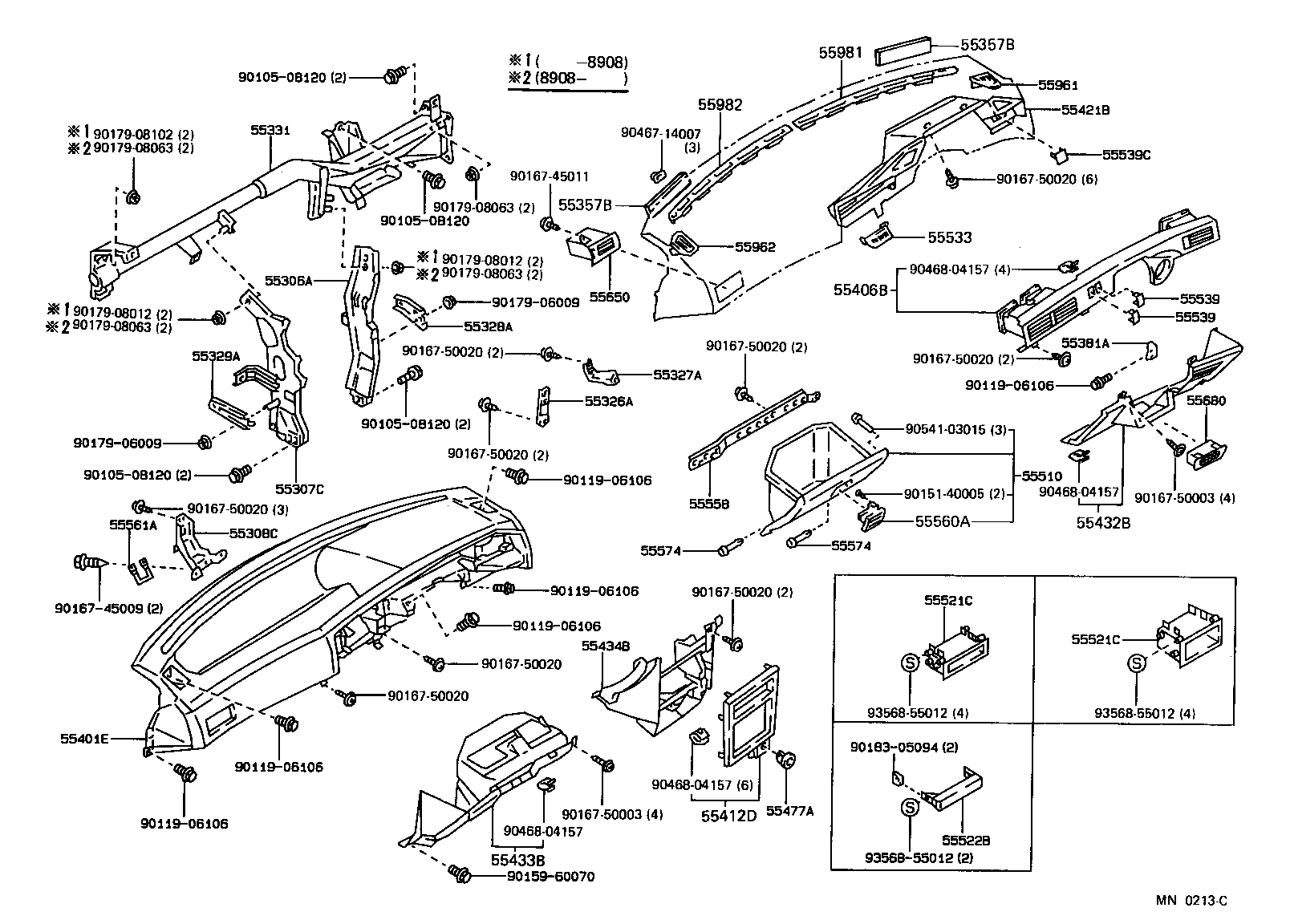

Click highlighted areas on diagram

diagram 55306A 55307C 55308C 55326A 55327A 55328A 55329A 55331 55357B 55357B 55381A 55401E 55406B 55412D 55421B 55432B 55433B 55434B 55477A 55510 55521C 55521C 55522B 55533 55539 55539 55539C 55558 55560A 55561A 55574 55574 55650 55680 55961 55962 55981 55982 9010508120 9010508120 9010508120 9010508120 9011906106 9011906106 9011906106 9011906106 9011906106 9011906106 9015140005 9015960070 9016745009 9016745011 9016750003 9016750003 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9017906009 9017906009 9017908012 9017908012 9017908063 9017908063 9017908063 9017908063 9017908102 9018305094 9046714007 9046804157 9046804157 9046804157 9046804157 9054103015 9356855012 9356855012 9356855012
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-12080

AE92..RHD..XL..GEN

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-12130

AE92..RHD..XL..GEN

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-12160

AE92..XL..GEN

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-12080

AE92..XL..GEN

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-12090

AE92..XL..GEN

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-12050

AE92..XL..GEN

 1
55329A - BRACKET, INSTRUMENT PANEL METER
55329-12040

AE92..XL..GEN

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-12180

AE92..RHD..XL..GEN

 1
55381A - BRACKET, FINISH PANEL MOUNTING
55381-12040

AE92..XL..GEN

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1227005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55401-1227004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55401-1227003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-12290

AE92..RHD..XL..GEN

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-1241005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55412-1241004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55412-1241003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-12140

AE92..RHD..XL..GEN

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1228003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55432-1228004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55432-1228005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-1207005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55433-1207003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55433-1207004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-1206003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55434-1206005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55434-1206004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-12090

AE92..XL..GEN

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1227003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55550-1227005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55550-1227004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55521C - COVER, STEREO OPENING
55521-16040

AE92,EE90

W(2DIN SIZE COVER)

 1
55521-16030

AE92..GEN

W(1DIN SIZE COVER)

 1
55521-16040

AE92,EE90..GL,GTI,STD,XL

W(2DIN SIZE COVER)

 1
55521C - COVER, STEREO OPENING
55521-16040

AE92,EE90

W(2DIN SIZE COVER)

 1
55521-16030

AE92..GEN

W(1DIN SIZE COVER)

 1
55521-16040

AE92,EE90..GL,GTI,STD,XL

W(2DIN SIZE COVER)

 1
55522B - COVER, RADIO TUNER OPENING
55522-16030

AE92..XL..GEN

 1
55533 - COVER, AUTO CLOCK HOLE
55533-12120

AE92..RHD..XL..GEN

 1
55539 - COVER, SPARE SWITCH HOLE
55539-12100

AE92..XL..GEN

 1
55539 - COVER, SPARE SWITCH HOLE
55539-12100

AE92..XL..GEN

 1
55539C - COVER, SPARE SWITCH HOLE
55539-12080

AE92..RHD..(3FC,5F)..XL..GEN

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-12070

AE92..RHD..XL..GEN

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-1604014

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55560-1604005

AE92,EE90..RHD..(GL,STD,XL)

DARK BEIGE,TRIM4#

 1
55560-1604003

AE92,EE90..RHD

SHADOW GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-12050

AE92,EE90

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE92,EE90

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE92,EE90

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1218004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55650-1218005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55650-1218003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-14030J0

AE92..XL..GEN;EE90..LHD..(GL,XL)

DARK BLUE,TRIM8#

 1
55680-1403005

AE92,EE90..(GL,STD,XL)..(GCC,GEN)

DARK BEIGE,TRIM4#

 1
55680-1403014

AE92..XL;EE90..LHD..(GL,XL)

DARK BLUE,TRIM8#

 1
55680-1403013

AE92,EE90..GCC,GEN

SHADOW GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1216003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55961-1216004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55961-1216005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1214004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55962-1214005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55962-1214003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-1201005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55981-1201003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
55981-1201004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-1201005

AE92..RHD..XL..GEN

DARK BEIGE,TRIM4#

 1
55982-1201004

AE92..RHD..XL..GEN

DARK BLUE,TRIM8#

 1
55982-1201003

AE92..RHD..XL..GEN

SHADOW GRAY,TRIM1#

 1
Common parts
90105-08120
90119-06106
90151-40005
90159-60070
90167-45009
90167-45011
90167-50003
90167-50020
90179-06009
90179-08012
90179-08063
90179-08102
90183-05094
90467-14007
90468-04157
90541-03015
93568-55012
