AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

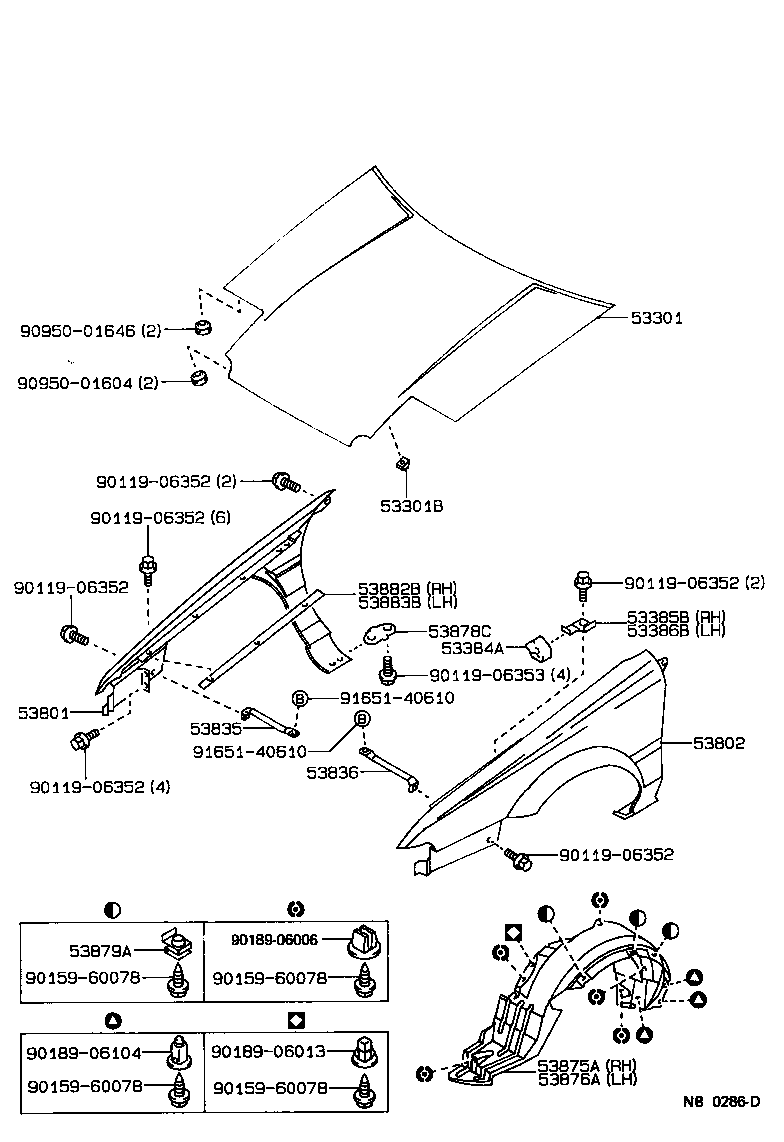

Click highlighted areas on diagram

diagram 53301 53301B 53384A 53385B 53386B 53801 53802 53835 53836 53875A 53876A 53878C 53879A 53882B 53883B 9011906352 9011906352 9011906352 9011906352 9011906352 9011906352 9011906353 9015960078 9015960078 9015960078 9015960078 9018906006 9018906013 9018906104 9095001604 9095001646 9165140610 9165140610
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12620

AE92..XL..GEN

 1
53301B - CUSHION, HOOD BUMPER
53388-12020

AE92..XL..GEN

 2
53384A - BUMPER, FENDER TO HOOD
53384-14010

AE92..XL..GEN

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-12010

AE92..XL..GEN

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-12010

AE92..XL..GEN

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1E550

AE92..XL..GEN

 1
53801-1E690

AE92..XL..GEN

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1E430

AE92..XL..GEN

 1
53802-1E570

AE92..XL..GEN

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-12060

AE92..XL..GEN

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-12060

AE92..XL..GEN

 1
53875A - LINER, FRONT FENDER, RH
53875-12170

AE92..XL..GEN

 1
53876A - LINER, FRONT FENDER, LH
53876-12160

AE92..XL..GEN

 1
53878C - SPACER, FRONT FENDER
53878-20030

AE92,EE90

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE92,EE90

 4
53882B - SEAL, FRONT FENDER, RH
53882-12080

AE92,EE90

 1
53883B - SEAL, FRONT FENDER, LH
53882-12080

AE92,EE90

 1
Common parts
90119-06352
90119-06353
90159-60078
90189-06006
90189-06013
90189-06104
90950-01604
90950-01646
91651-40610
