AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

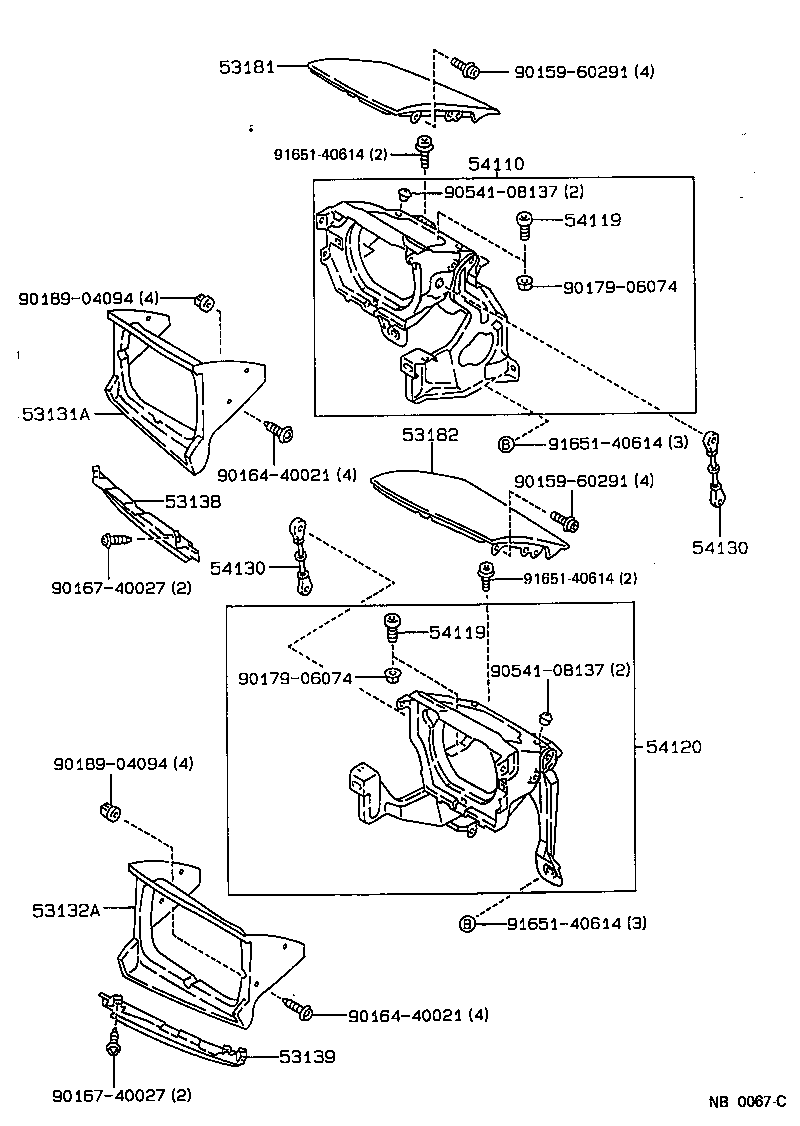

Click highlighted areas on diagram

diagram 53131A 53132A 53138 53139 53181 53182 54110 54119 54119 54120 54130 54130 9015960291 9015960291 9016440021 9016440021 9016740027 9016740027 9017906074 9017906074 9018904094 9018904094 9054108137 9054108137 9165140614 9165140614 9165140614 9165140614
Part # Description Qty Price
53131A - DOOR, HEADLAMP, RH
53131-12370

AE92..XL..GEN

 1
53132A - DOOR, HEADLAMP, LH
53132-12280

AE92..XL..GEN

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-12080

AE92..XL..GEN

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-12150

AE92..XL..GEN

 1
53181 - COVER, HEADLAMP, RH
53181-12040

AE92..XL..GEN

 1
53182 - COVER, HEADLAMP, LH
53182-12040

AE92..XL..GEN

 1
54110 - BRACKET ASSY, RETRACTABLE HEADLAMP, RH
54110-12021

AE92..XL..GEN

 1
54110-12020

AE92..XL..GEN

 1
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14010

AE92..XL..GEN

 2
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14010

AE92..XL..GEN

 2
54120 - BRACKET ASSY, RETRACTABLE HEADLAMP, LH
54120-12020

AE92..XL..GEN

 1
54120-12021

AE92..XL..GEN

 1
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-12021

AE92..XL..GEN

 2
54130-12020

AE92..XL..GEN

 2
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-12021

AE92..XL..GEN

 2
54130-12020

AE92..XL..GEN

 2
Common parts
90159-60291
90164-40021
90167-40027
90179-06074
90189-04094
90541-08137
91651-40614
