AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

Click highlighted areas on diagram

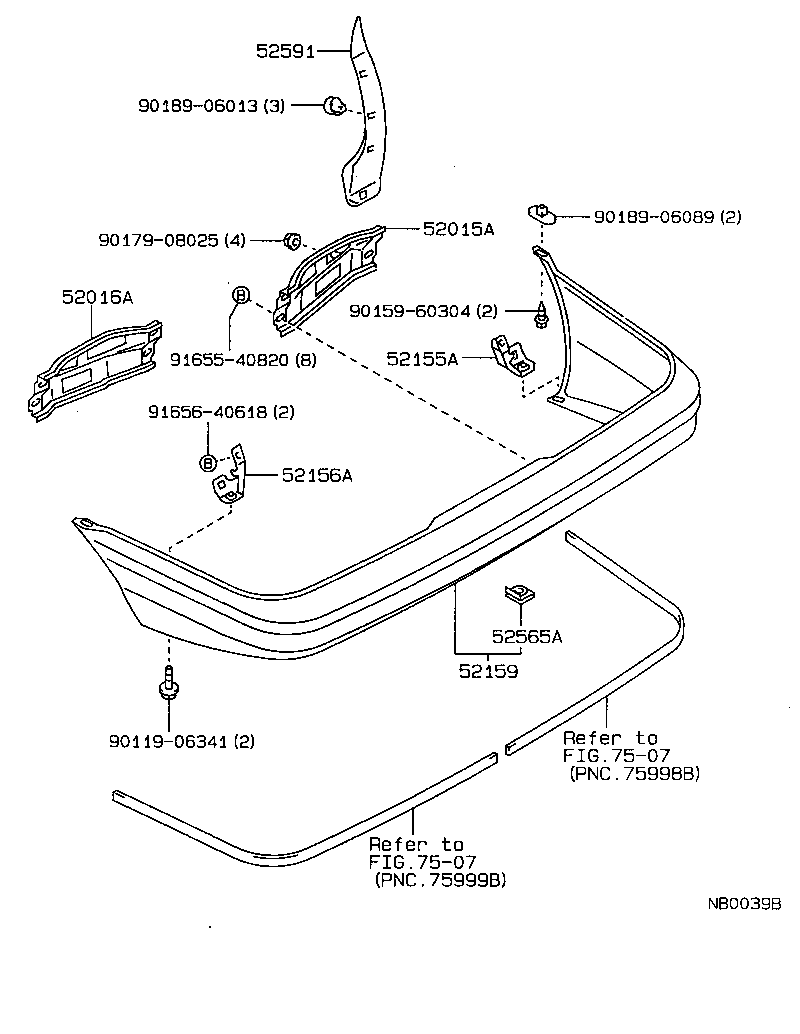

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 7507 7507 9011906341 9015960304 9017908025 9018906013 9018906089 9165540820 9165640618
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52181-12300

AE92..XL..GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52182-12250

AE92..XL..GEN

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12160

AE92..XL..GEN

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12130

AE92..XL..GEN

 1
52159 - COVER, REAR BUMPER
52159-12820

AE92..XL..GEN

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE92,EE90

 8
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12070

AE92..XL..GEN

 1
Common parts
90119-06341
90159-60304
90179-08025
90189-06013
90189-06089
91655-40820
91656-40618
Linked diagrams
7507
