AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

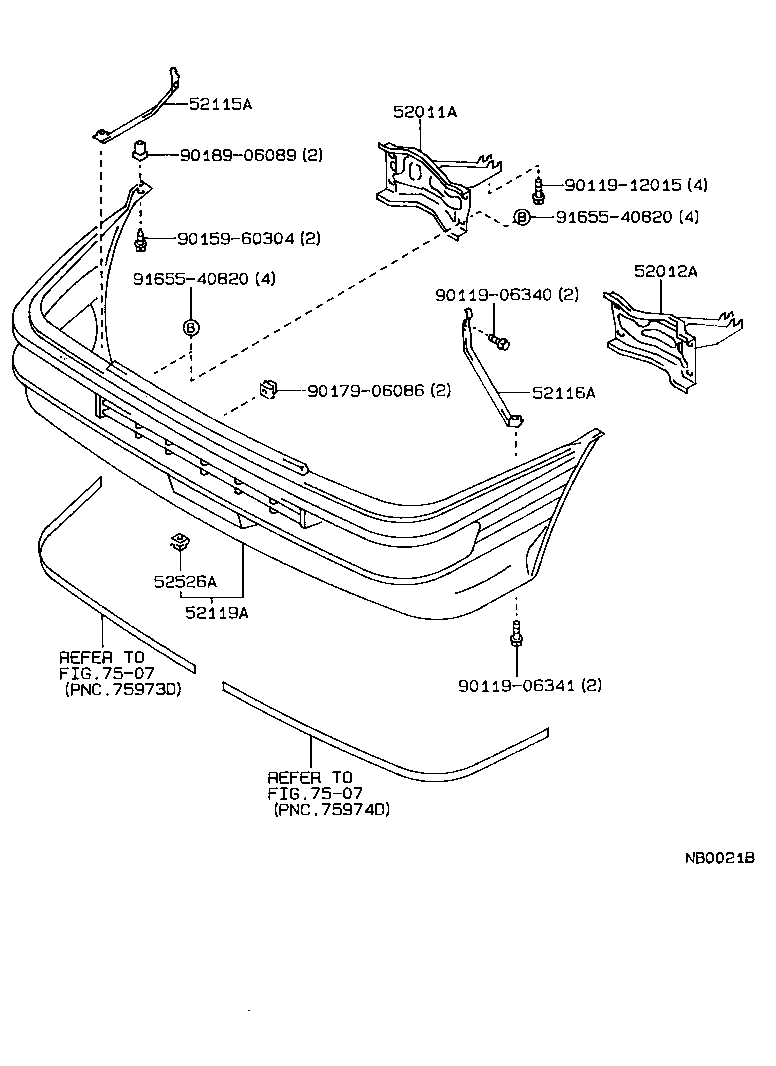

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52526A 7507 7507 9011906340 9011906341 9011912015 9015960304 9017906086 9018906089 9165540820 9165540820
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12410

AE92..XL..GEN

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12420

AE92..XL..GEN

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12280

AE92..XL..GEN

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12220

AE92..XL..GEN

 1
52119A - COVER, FRONT BUMPER
52119-1A430

AE92..XL..GEN

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AE92..XL..GEN

TYPE A

 8
Common parts
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90189-06089
91655-40820
Linked diagrams
7507
