AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb

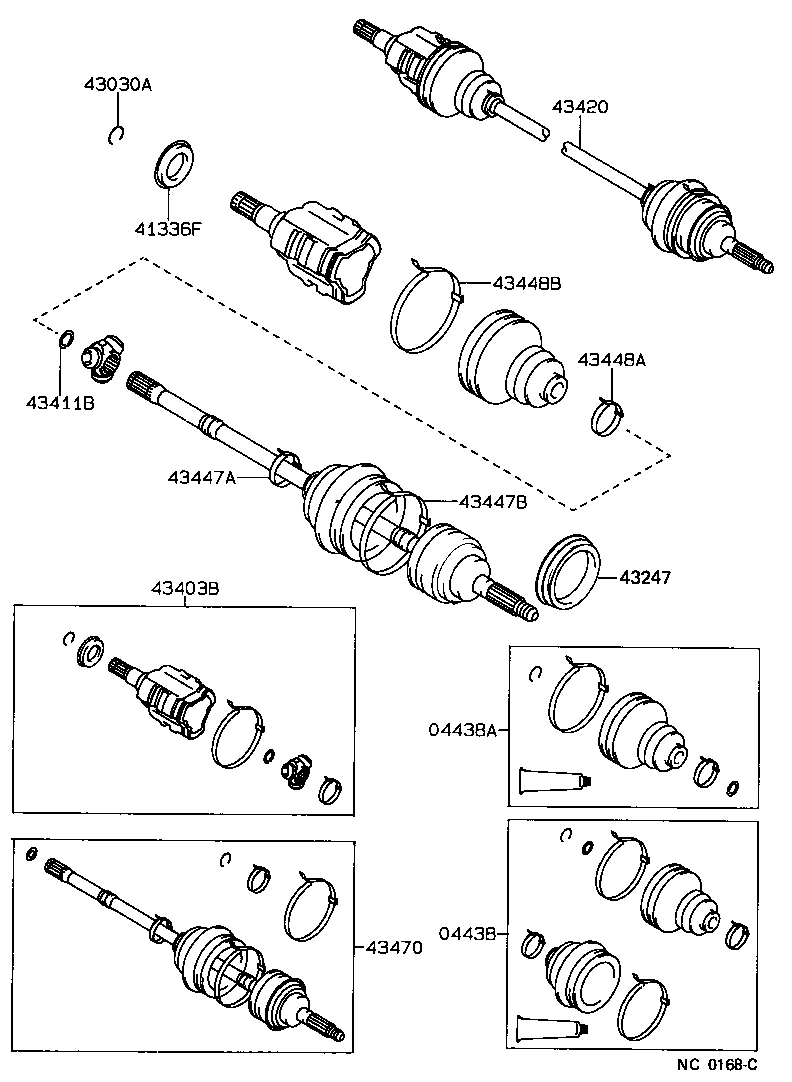

ILLUST NO. 1 OF 2(8705-8709)GL,STD,XL ; (8709-8909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12080 |
EE90..(3FC,4F)..GCC;AE92,EE90..(3FC,4F,5F)..(GL,STD,XL)..(GEN,SA) |
2 | ||
| 04438-12170 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438-12080 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE92,EE90..(3FC,4F,5F)..(GL,GT,GTI,STD,XL) |
2 | ||
| 04438-12070 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90..GL,STD,XL |
2 | ||
| 04438-12160 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92,EE90 |
2 | ||
| 41336-12010 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE92,EE90 |
2 | ||
| 90521-26004 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AE92,EE90 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19055 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43403-19085 |
AE92,EE90 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12130 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43410-12130 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE92,EE90 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01078 |
AE92,EE90 |
2 | ||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01080 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE92,EE90..GL,STD,XL |
2 | ||
| 90949-01076 |
AE92,EE90 |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19275 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE92,EE90 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE92,EE90 |
1 | ||
ILLUST NO. 1 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12080 |
EE90..(3FC,4F)..GCC;AE92,EE90..(3FC,4F,5F)..(GL,STD,XL)..(GEN,SA) |
2 | ||
| 04438-12170 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438-12080 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE92,EE90..(3FC,4F,5F)..(GL,GT,GTI,STD,XL) |
2 | ||
| 04438-12070 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90..GL,STD,XL |
2 | ||
| 04438-12160 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92,EE90 |
2 | ||
| 41336-12010 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE92,EE90 |
2 | ||
| 90521-26004 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AE92,EE90 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19055 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43403-19085 |
AE92,EE90 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12130 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43410-12130 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE92,EE90 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01078 |
AE92,EE90 |
2 | ||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01080 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE92,EE90..GL,STD,XL |
2 | ||
| 90949-01076 |
AE92,EE90 |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19275 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE92,EE90 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE92,EE90 |
1 | ||
ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12080 |
EE90..(3FC,4F)..GCC;AE92,EE90..(3FC,4F,5F)..(GL,STD,XL)..(GEN,SA) |
2 | ||
| 04438-12170 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438-12080 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE92,EE90..(3FC,4F,5F)..(GL,GT,GTI,STD,XL) |
2 | ||
| 04438-12070 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90..GL,STD,XL |
2 | ||
| 04438-12160 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92,EE90 |
2 | ||
| 41336-12010 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE92,EE90 |
2 | ||
| 90521-26004 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AE92,EE90 |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE92,EE90 |
1 | ||
| 43403-19055 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE92,EE90 |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12090 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43420-12090 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01078 |
AE92,EE90 |
2 | ||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01080 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE92,EE90..GL,STD,XL |
2 | ||
| 90949-01076 |
AE92,EE90 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19215 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
ILLUST NO. 2 OF 2(8705-8709)GL,STD,XL ; (8709-8909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12080 |
EE90..(3FC,4F)..GCC;AE92,EE90..(3FC,4F,5F)..(GL,STD,XL)..(GEN,SA) |
2 | ||
| 04438-12170 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438-12080 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE92,EE90..(3FC,4F,5F)..(GL,GT,GTI,STD,XL) |
2 | ||
| 04438-12070 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90..GL,STD,XL |
2 | ||
| 04438-12160 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
2 | ||
| 04438-12070 |
AE92,EE90 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92,EE90 |
2 | ||
| 41336-12010 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE92,EE90 |
2 | ||
| 90521-26004 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AE92,EE90 |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE92,EE90 |
1 | ||
| 43403-19055 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE92,EE90 |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12090 |
AE92,EE90..GL,STD,XL |
1 | ||
| 43420-12090 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01078 |
AE92,EE90 |
2 | ||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01080 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01078 |
AE92,EE90..GL,STD,XL |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE92,EE90..GL,STD,XL |
2 | ||
| 90949-01076 |
AE92,EE90 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19215 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
