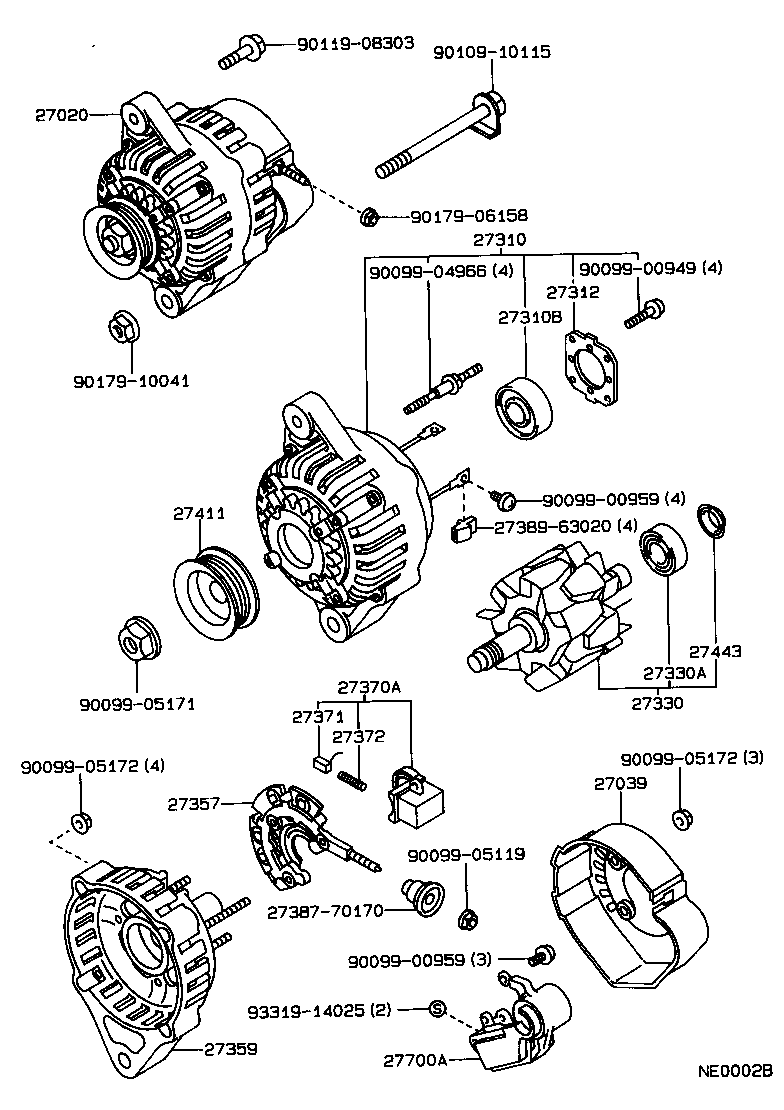

Toyota Corolla cp/hb AE92 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-16160	4AF..AE92 12V 60A	05/1987 - 08/1989	1
27039 - COVER, ALTERNATOR REAR END
27039-72010	4A#..AE92	05/1987 - 09/1991	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16190	4AF..AE92	05/1987 - 08/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	4A#..AE92	05/1987 - 08/1993	1
27312 - PLATE, RETAINER
27312-70200	4A#..AE92	05/1987 - 08/1993	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101	4AF..AE92	05/1987 - 09/1987	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4A#..AE92	05/1987 - 09/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63060	4AF..AE92	05/1987 - 08/1989	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16151	4AF..AE92	05/1987 - 08/1993	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021	4AF..AE92	05/1987 - 05/1991	1
27371 - BRUSH, ALTERNATOR
27371-63020	4AF,2E..AE92,EE90	08/1988 - 09/1988	2
27371-63020	4AF..AE92;2E..EE90..GCC	09/1988 - 08/1989	2
27371-63020	4A#,2E..AE92,EE90	08/1989 - 05/1991	2
27371-63020	4A#,2E..AE92,EE90	05/1987 - 08/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	4A#,2E..AE92,EE90	05/1987 - 08/1989	2
27411 - PULLEY, ALTERNATOR
27411-16190	4AF..AE92	05/1987 - 08/1988	1
27411-16191	4AF..AE92	08/1988 - 08/1989	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4A#,2E..AE92,EE90	05/1987 - 08/1993	1
27700A - REGULATOR ASSY, GENERATOR
27700-63021	4AF..AE92	05/1987 - 04/1988	1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90109-10115
90119-08303
90179-06158
90179-10041
93319-14025

AE92R-ACMDU (1987)
