AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
Production
May 1987
-
Jun 1991
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )4AF

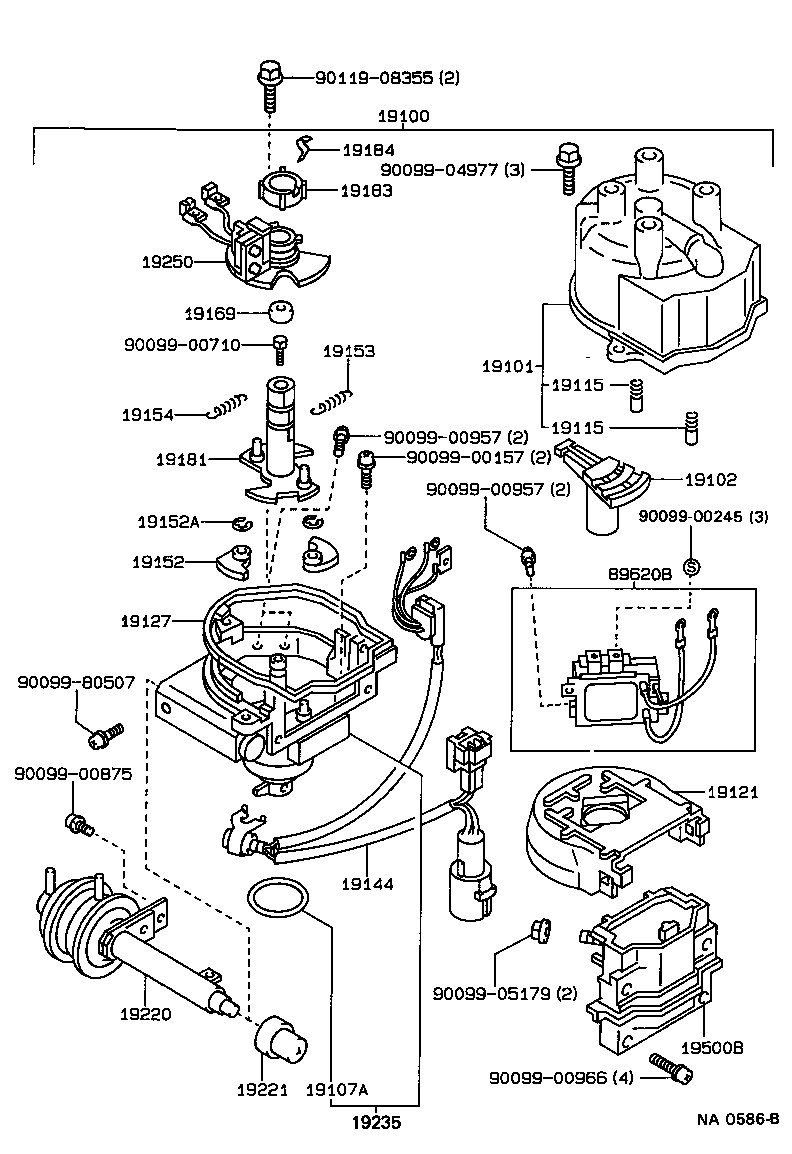

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-16110 |
4AF..AE92..GEN |
1 | ||
| 19020-16111 |
4AF..AE92..GEN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15120 |
4AF..AE92 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11031 |
4AF..AE92 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
4A#..AE92 |
1 | ||
| 96711-35030 |
4AF..AE92 |
1 | ||
| 96711-35030 |
4AF..AE92 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4AF..AE92 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4AF..AE92 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
4AF..AE92 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15120 |
4AF..AE92 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16110 |
4AF..AE92..GEN |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4AF..AE92 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4AF..AE92 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-16220 |
4AF..AE92..GEN |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-16220 |
4AF..AE92..GEN |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
4AF..AE92 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-16110 |
4AF..AE92..GEN |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
4AF..AE92 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
4AF..AE92 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-16240 |
4AF..AE92..GEN |
1 | ||
| 19220-16241 |
4AF..AE92..GEN |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-16110 |
4AF..AE92..GEN |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
4AF..AE92 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
4AF..AE92 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-10120 |
AE92..(3FC,5F)..(STD,XL) NIPPONDENSO |
1 | ||
| 89620-10120 |
AE92..STD,XL NIPPONDENSO |
1 | ||
| 89620-10120 |
AE92..XL..GEN |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00875 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
