AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF

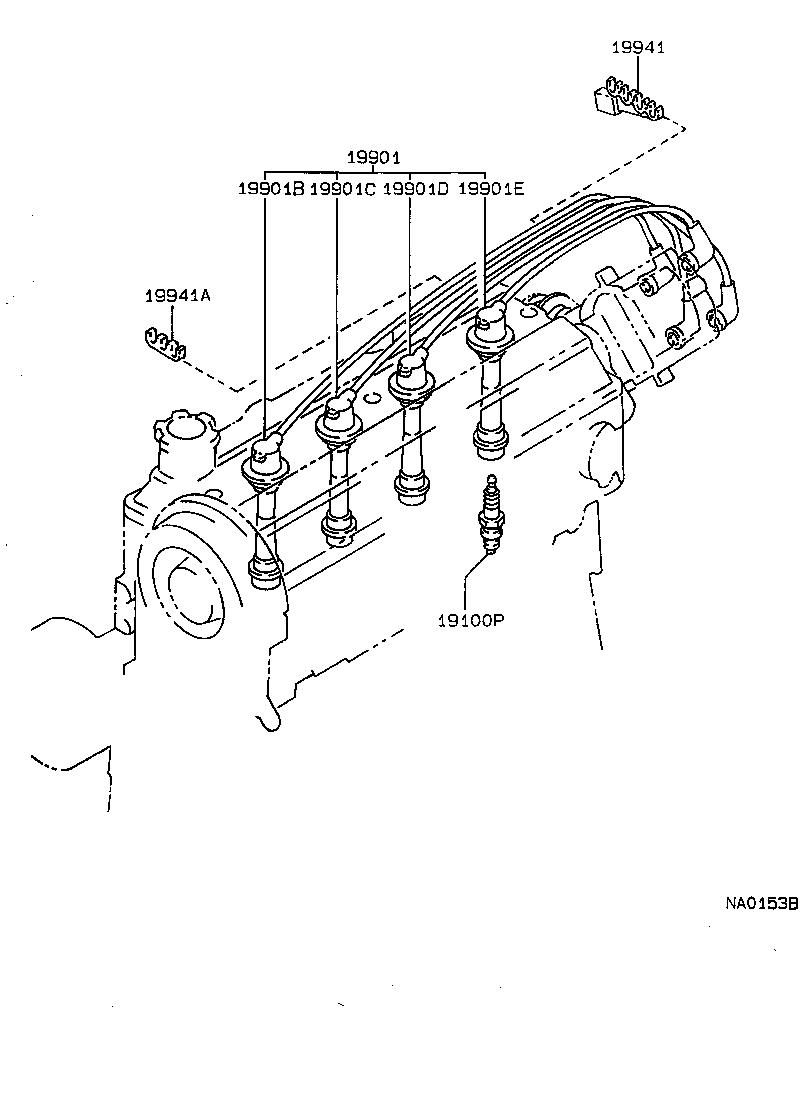

Click highlighted areas on diagram

diagram 19100P 19901 19901B 19901C 19901D 19901E 19941 19941A
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01153

4AF..AE92

Q16R-U

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22194

4AF..AE92

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12707

4AF..AE92

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12708

4AF..AE92

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12709

4AF..AE92

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15061

4AF..AE92

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01165

4AF..AE92

 1
90929-01165

4AF..AE92

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00287

4AF..AE92..5F

 1
