AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4A#

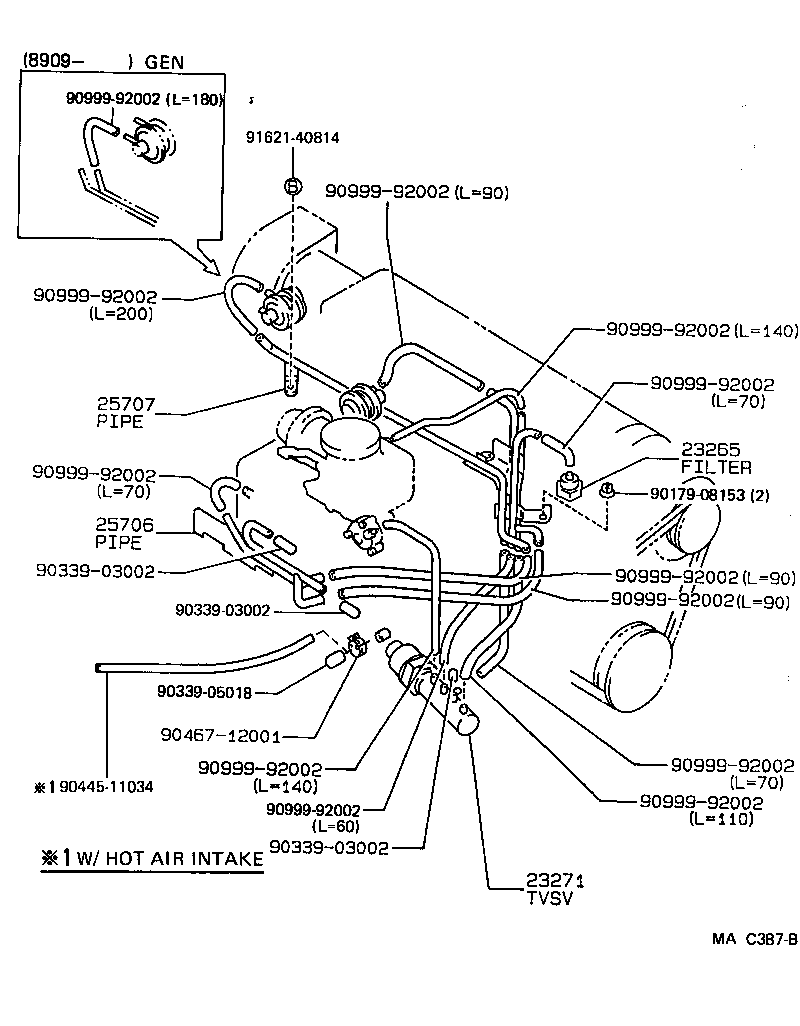

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8705-8908)4AF ; (8908-8910)4AF..GEN,SA ; (8910-)4AF..GEN

Click highlighted areas on diagram

diagram 23265 23271 25706 25707 9017908153 9033903002 9033903002 9033903002 9033905018 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AE92..GCC,GEN

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE92

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE92..GEN,SA

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16061

4AF..AE92..GEN

 1
25707-16060

4AF..AE92..GEN

 1
Common parts
90179-08153
90339-03002
90339-05018
90445-11034
90467-12001
90999-92002
91621-40814
