AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF

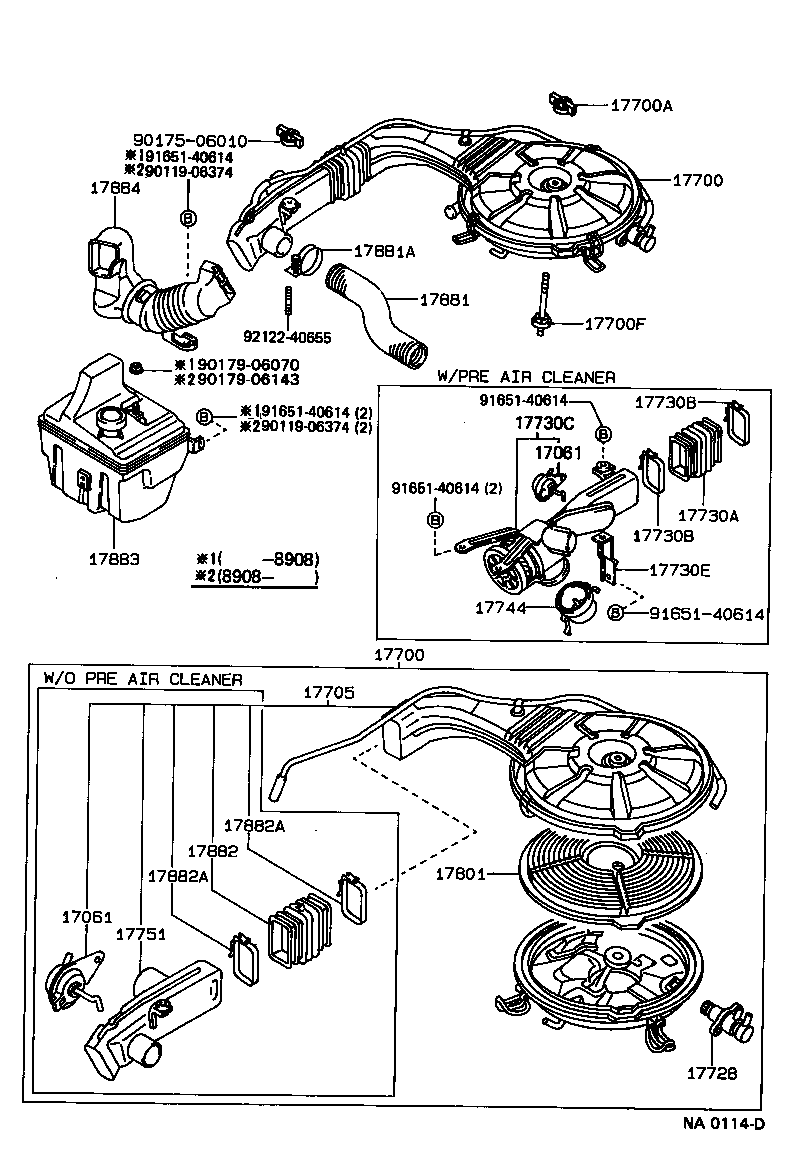

Click highlighted areas on diagram

diagram 17061 17061 17700 17700 17700A 17700F 17705 17728 17730A 17730B 17730B 17730C 17730E 17744 17751 17801 17881 17881A 17882 17882A 17882A 17883 17884 9011906374 9011906374 9017506010 9017906070 9017906143 9165140614 9165140614 9165140614 9165140614 9165140614 9212240655
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-10010

4AF..AE92..GEN

W(HOT AIR INTAKE & PRE AIR CLEANER)

 1
17061-15040

4AF..AE92..GEN

 1
17061-15040

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17061 - DIAPHRAGM SUB-ASSY
17061-10010

4AF..AE92..GEN

W(HOT AIR INTAKE & PRE AIR CLEANER)

 1
17061-15040

4AF..AE92..GEN

 1
17061-15040

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17700 - CLEANER ASSY, AIR
17700-16420

4AF..AE92..GCC,GEN

 1
17700-16510

4AF..AE92..GEN

W(HOT AIR INTAKE & PRE AIR CLEANER)

 1
17700-16480

4AF..AE92..GEN

W(PRE AIR CLEANER)

 1
17700-16430

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17700 - CLEANER ASSY, AIR
17700-16420

4AF..AE92..GCC,GEN

 1
17700-16510

4AF..AE92..GEN

W(HOT AIR INTAKE & PRE AIR CLEANER)

 1
17700-16480

4AF..AE92..GEN

W(PRE AIR CLEANER)

 1
17700-16430

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010

4AF..AE92

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018

4AF..AE92

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16220

4AF..AE92..GEN

W(PRE AIR CLEANER)

 1
17705-16240

4AF..AE92..GEN

W(HOT AIR INTAKE & PRE AIR CLEANER)

 1
17705-16210

4AF..AE92..GCC,GEN

 1
17705-15150

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17728 - VALVE, THERMOSTATIC
17728-16010

4AF..AE92..GEN

 1
17730A - HOSE, PRECLEANER
17881-16180

4AF..AE92..GEN

 1
17730B - CLAMP, HOSE(FOR PRECLEANER HOSE)
17786-16010

4AF..AE92..GEN

 2
17730B - CLAMP, HOSE(FOR PRECLEANER HOSE)
17786-16010

4AF..AE92..GEN

 2
17730C - CASE, PRECLEANER
17736-16030

4AF..AE92..GEN

 1
17736-16040

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17730E - BRACKET, PRECLEANER, NO.1
17741-16020

4AF..AE92..GEN

 1
17744 - CUP, PRECLEANER
17744-16020

4AF..AE92..GEN

 1
17751 - INLET, AIR CLEANER, NO.1
17751-16010

4AF..AE92..GCC,GEN

 1
17751-15010

4AF..AE92..GEN

W(HOT AIR INTAKE)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15060

4AF..AE92

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-15120

4AF..AE92

 1
17881-15150

4AF..AE92..GEN

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

4AF..AE92..GEN

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-15140

4AF..AE92

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17786-15010

4AF..AE92

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17786-15010

4AF..AE92

 2
17883 - HOSE, AIR CLEANER, NO.3
17883-16030

4AF..AE92

 1
17884 - HOSE, AIR CLEANER, NO.4
17880-16010

4AF..AE92

 1
Common parts
90119-06374
90175-06010
90179-06070
90179-06143
91651-40614
92122-40655
