AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb

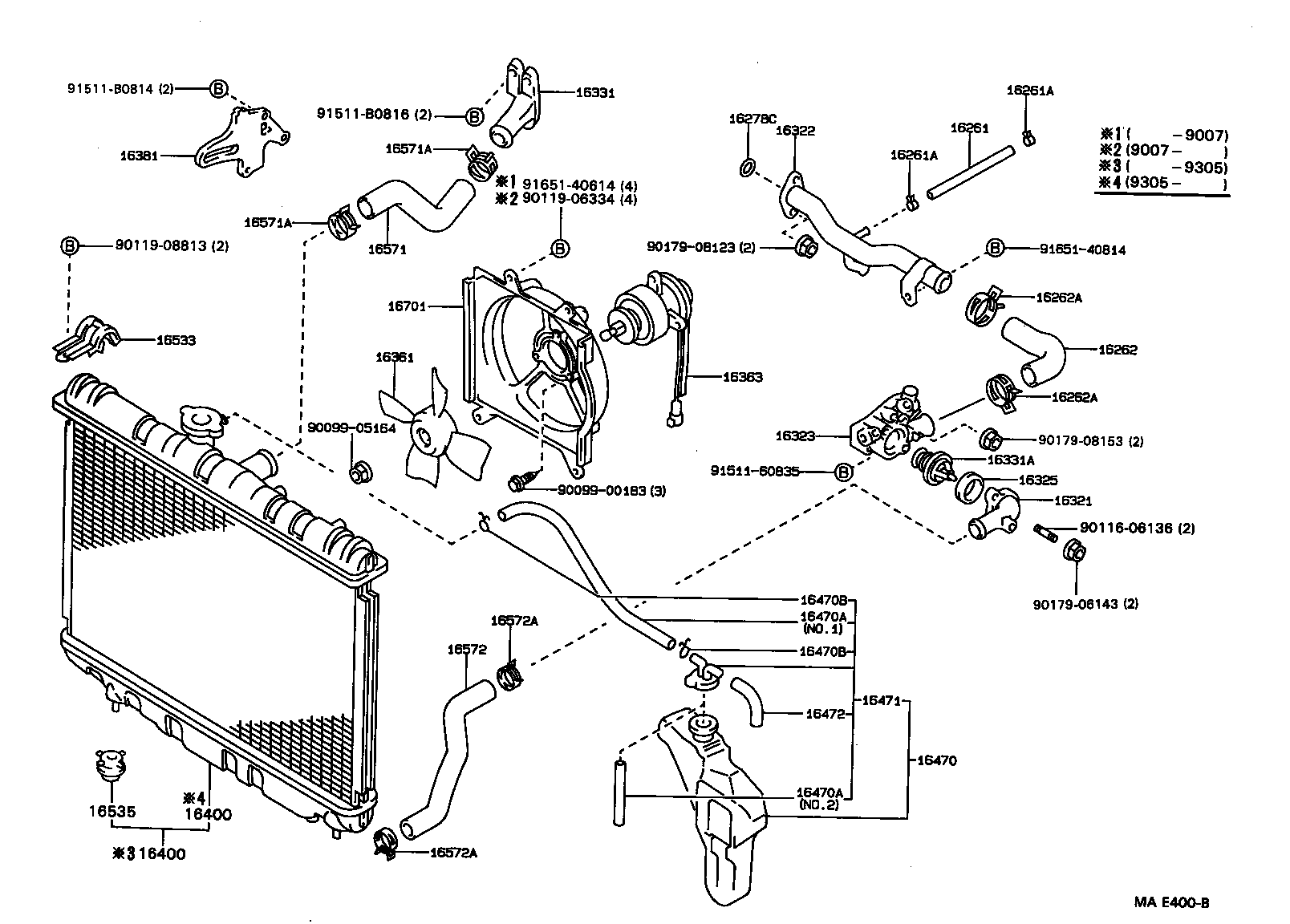

ILLUST NO. 1 OF 2(8705- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-10200 |
4AF..AE92 *H,L=200 |
1 | ||
| 99555-10200 |
4AF..AE92 *H,L=200 |
1 | ||
| 99555-10200 |
4AF..AE92 *H,L=200 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF..AE92 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF..AE92 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15030 |
4AF..AE92 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF..AE92 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF..AE92 |
2 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4A#..AE92 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15020 |
4AF..AE92 |
1 | ||
| 16321-15020 |
4AF..AE92 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15020 |
4AF..AE92 |
1 | ||
| 16322-15040 |
4AF..AE92 |
1 | ||
| 16322-15040 |
4AF..AE92 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15060 |
4AF..AE92 |
1 | ||
| 16323-15060 |
4AF..AE92..GEN |
1 | ||
| 16323-15060 |
4AF..AE92..GCC,GEN |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4A#..AE92 |
1 | ||
| 16325-63010 |
4A#..AE92..GTI,STD,XL |
1 | ||
| 16325-63010 |
4A#..AE92 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AF..AE92..5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AF..AE92 *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-15080 |
4A#..AE92..5F |
1 | ||
| 16361-15080 |
4A#..AE92..5F |
1 | ||
| 16361-15080 |
4AF..AE92..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16030 |
4A#..AE92..5F |
1 | ||
| 16363-16030 |
4AF..AE92..5F |
1 | ||
| 16363-16030 |
4A#..AE92..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15060 |
4AF..AE92 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11190 |
4AF..AE92..5F |
1 | ||
| 16400-11191 |
4AF..AE92..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11190 |
4AF..AE92..5F |
1 | ||
| 16400-11191 |
4AF..AE92..5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15040 |
4AF..AE92 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12117 |
4AF..AE92 *H,L=460,NO.1 |
1 | ||
| 90445-12117 |
4AF..AE92 *H,L=460,NO.1 |
1 | ||
| 90445-12078 |
4A#..AE92 L=600,NO.2 |
1 | ||
| 90445-12078 |
4A#..AE92 L=600,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12117 |
4AF..AE92 *H,L=460,NO.1 |
1 | ||
| 90445-12117 |
4AF..AE92 *H,L=460,NO.1 |
1 | ||
| 90445-12078 |
4A#..AE92 L=600,NO.2 |
1 | ||
| 90445-12078 |
4A#..AE92 L=600,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#..AE92 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#..AE92 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15050 |
4AF..AE92 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
4A#..AE92 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-15060 |
4AF..AE92..5F..XL |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
4AF..AE92..5F..XL |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15150 |
4AF..AE92 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#..AE92 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#..AE92 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15190 |
4AF..AE92 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#..AE92 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#..AE92 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15220 |
4AF..AE92..5F |
1 | ||
| 16711-15220 |
4A#..AE92..5F |
1 | ||
| 16711-15220 |
4A#..AE92..5F |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90116-06136 | ||||
| 90119-06334 | ||||
| 90119-08813 | ||||
| 90179-06143 | ||||
| 90179-08123 | ||||
| 90179-08153 | ||||
| 91511-60835 | ||||
| 91511-B0814 | ||||
| 91511-B0816 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
ILLUST NO. 2 OF 2(8705- )4A#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-11190 |
4AF..AE92..5F |
1 | ||
| 16400-11190 |
4AF..AE92..5F |
1 | ||
| 16400-11191 |
4AF..AE92..5F |
1 | ||
| 16400-11191 |
4AF..AE92..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
4AF..AE92..5F..XL |
1 | ||
| 16417-15210 |
4AF..AE92..5F..XL |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
4AF..AE92..5F..XL |
1 | ||
| 16418-24200 |
4AF..AE92..5F..XL |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-15210 |
4AF..AE92..5F..XL |
1 | ||
| 16401-15210 |
4AF..AE92..5F..XL |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11190 |
4AF..AE92..5F..XL |
1 | ||
| 16403-11190 |
4AF..AE92..5F..XL |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-15370 |
4AF..AE92..5F |
1 | ||
| 16441-15370 |
4AF..AE92..5F |
1 | ||
| 16441-15371 |
4AF..AE92..5F..XL |
1 | ||
| 16441-15371 |
4AF..AE92..5F..XL |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-70080 |
4AF..AE92..5F..XL |
1 | ||
| 16442-70080 |
4AF..AE92..5F..XL |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15370 |
4AF..AE92..5F..XL |
2 | ||
| 16443-15370 |
4AF..AE92..5F..XL |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-70080 |
4AF..AE92..5F..GEN |
1 | ||
| 16451-70080 |
4AF..AE92..5F..GEN |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-15370 |
4AF..AE92..5F..GEN |
1 | ||
| 16452-15370 |
4AF..AE92..5F..GEN |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-15370 |
4AF..AE92..5F |
1 | ||
| 16461-15370 |
4AF..AE92..5F |
1 | ||
| 16461-15371 |
4AF..AE92..5F..XL |
1 | ||
| 16461-15371 |
4AF..AE92..5F..XL |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15370 |
4AF..AE92..5F..XL |
1 | ||
| 16462-15370 |
4AF..AE92..5F..XL |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15370 |
4AF..AE92..5F..XL |
2 | ||
| 16463-15370 |
4AF..AE92..5F..XL |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
4AF..AE92..5F..XL |
2 | ||
| 90480-40010 |
4AF..AE92..5F..XL |
2 | ||
