Toyota Corolla cp/hb AE92 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-19205	4AF..AE92	05/1987 - 08/1993	1
16100H - RING, O(FOR WATER PUMP)
96711-24035	4A#..AE92	05/1987 - 08/1993	1
16104 - SEAL SET, WATER PUMP
16104-15020	4AF..AE92 AISIN	05/1987 - 10/1988	1
16104-15060	4AF..AE92 AISAN	05/1987 - 07/1992	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19085	4AF..AE92 AISAN	01/1988 - 02/1990	1
16110-19075	4AF..AE92 AISIN	01/1988 - 02/1990	1
16124 - GASKET, WATER PUMP COVER
16124-15010	4AF..AE92 AISIN	05/1987 - 02/1990	1
16124-15060	4AF..AE92 AISAN	05/1987 - 02/1990	1
16131 - ROTOR, WATER PUMP
16131-15080	4AF..AE92 AISIN	05/1987 - 08/1993	1
16131-15070	4AF..AE92 AISAN	05/1987 - 08/1993	1
16131A - BEARING, WATER PUMP
90369-35043	4A#..AE92	05/1987 - 03/1992	1
16171 - SEAT, WATER PUMP PULLEY
16171-15050	4AF..AE92 AISIN	05/1987 - 07/1990	1
16171-15070	4AF..AE92 AISAN	05/1987 - 08/1993	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15060	4AF..AE92 AISAN	05/1987 - 06/1991	3
16193-15011	4AF..AE92 AISIN	05/1987 - 08/1993	3
16371 - PULLEY, FAN
16371-15050	4AF..AE92 W(POWER STEERING)	05/1987 - 08/1993	1
16371-15060	4AF..AE92	05/1987 - 08/1993	1
Common parts
91511-60835
91621-60612
92122-60816

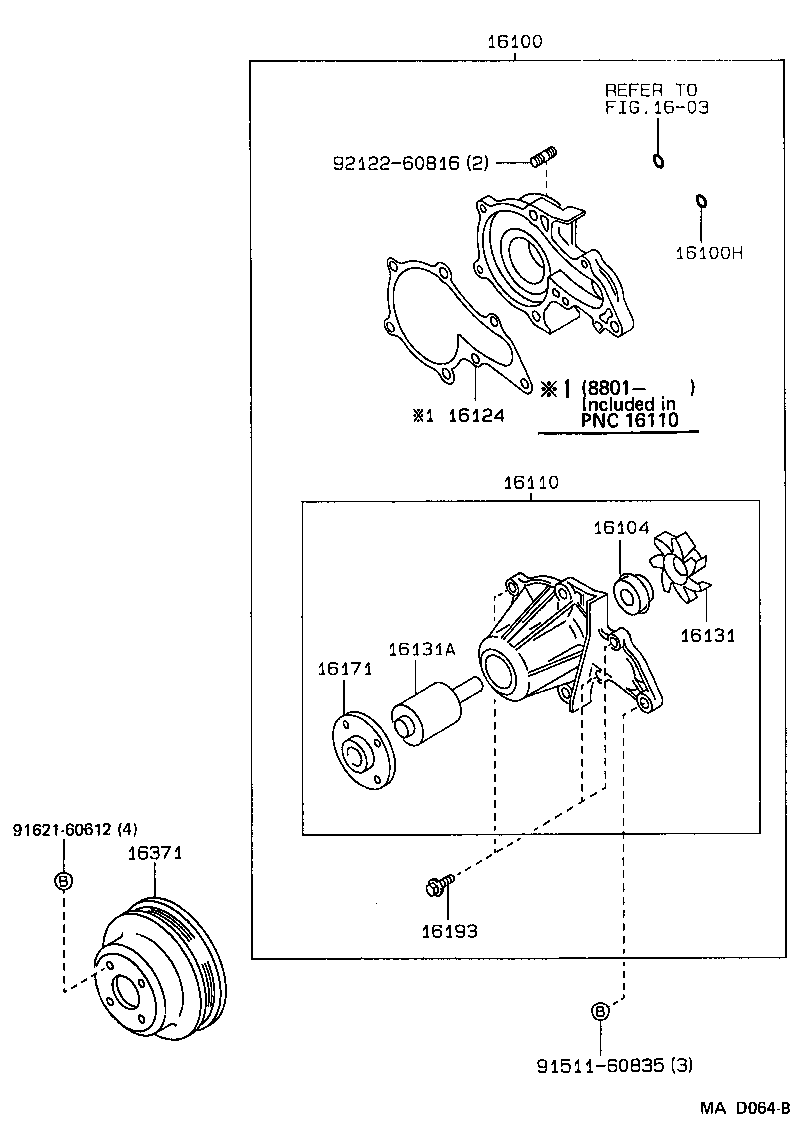

Linked diagrams
1603

AE92R-ACMDU (1987)
