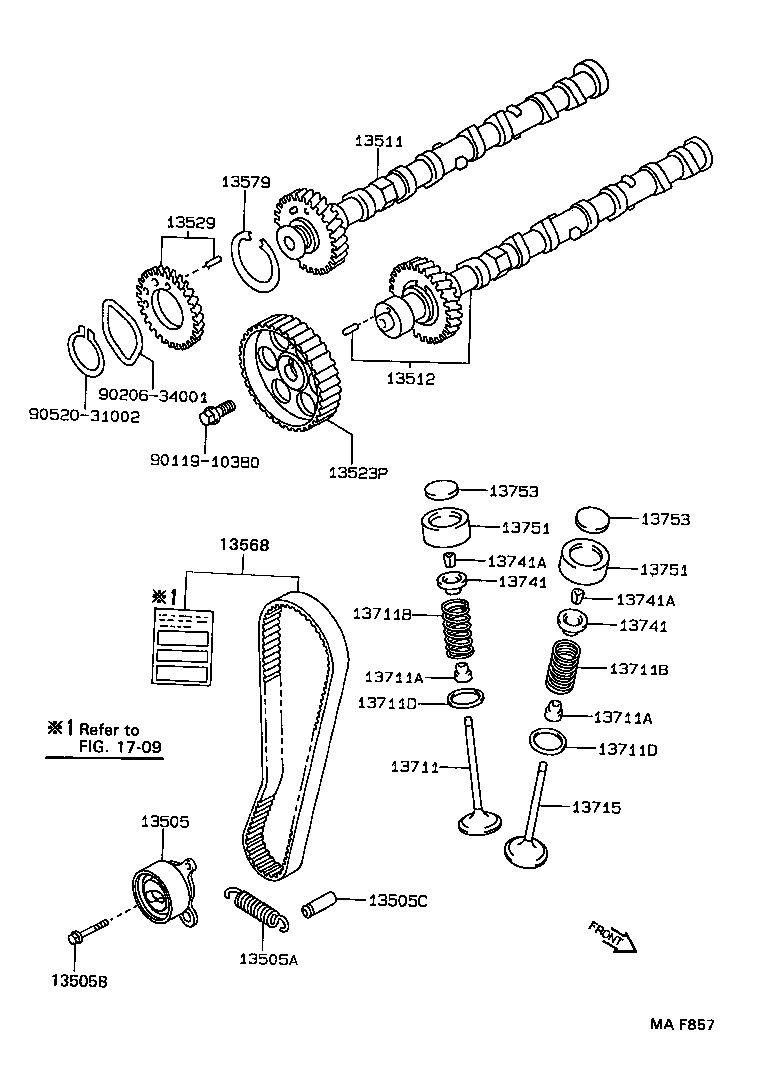

AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
(8705- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-15041 |
4AF..AE92 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-18017 |
4AF..AE92 |
1 | ||
| 13505B - BOLT, FLANGE (FOR IDLER) | ||||
| 91511-61040 |
4AF..AE92 |
1 | ||
| 13505C - PIN(FOR IDLER SPRING TENSION) | ||||
| 90249-06006 |
4A#..AE92 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-15030 |
4AF..AE92 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-15020 |
4AF..AE92 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-14010 |
4AF..AE92 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-15900 |
4AF..AE92 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-15050 |
4AF..AE92 |
1 | ||
| 13568-15040 |
4AF..AE92 |
1 | ||
| 13568-15040 |
4AF..AE92 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-15010 |
4AF..AE92 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-15071 |
4AF..AE92 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
4AF..AE92 INTAKE SIDE |
8 | ||
| 90913-02066 |
4AF..AE92 EXHAUST SIDE |
8 | ||
| 90913-02062 |
4AF..AE92..GCC,GEN INTAKE SIDE |
8 | ||
| 90913-02066 |
4AF..AE92..GCC,GEN EXHAUST SIDE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
4AF..AE92 INTAKE SIDE |
8 | ||
| 90913-02066 |
4AF..AE92 EXHAUST SIDE |
8 | ||
| 90913-02062 |
4AF..AE92..GCC,GEN INTAKE SIDE |
8 | ||
| 90913-02066 |
4AF..AE92..GCC,GEN EXHAUST SIDE |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31005 |
4AF..AE92 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-31005 |
4AF..AE92 |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16020 |
4AF..AE92 |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16020 |
4AF..AE92 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-15050 |
4AF..AE92 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4A#..AE92 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4A#..AE92 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4A#..AE92 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4A#..AE92 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4A#..AE92 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4A#..AE92 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16100 |
4A#..AE92 T=2.70 |
16 | ||
| 13753-16060 |
4A#..AE92 T=2.60 |
16 | ||
| 13753-16040 |
4A#..AE92 T=2.55 |
16 | ||
| 13753-16140 |
4A#..AE92 T=2.80 |
16 | ||
| 13753-16020 |
4A#..AE92 T=2.50 |
16 | ||
| 13753-16080 |
4A#..AE92 T=2.65 |
16 | ||
| 13753-16160 |
4A#..AE92 T=2.85 |
16 | ||
| 13753-16120 |
4A#..AE92 T=2.75 |
16 | ||
| 13753-16200 |
4A#..AE92 T=2.95 |
16 | ||
| 13753-16300 |
4A#..AE92 T=3.20 |
16 | ||
| 13753-16240 |
4A#..AE92 T=3.05 |
16 | ||
| 13753-16180 |
4A#..AE92 T=2.90 |
16 | ||
| 13753-16320 |
4A#..AE92 T=3.25 |
16 | ||
| 13753-16260 |
4A#..AE92 T=3.10 |
16 | ||
| 13753-16220 |
4A#..AE92 T=3.00 |
16 | ||
| 13753-16280 |
4A#..AE92 T=3.15 |
16 | ||
| 13753-16340 |
4A#..AE92 T=3.30 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16100 |
4A#..AE92 T=2.70 |
16 | ||
| 13753-16060 |
4A#..AE92 T=2.60 |
16 | ||
| 13753-16040 |
4A#..AE92 T=2.55 |
16 | ||
| 13753-16140 |
4A#..AE92 T=2.80 |
16 | ||
| 13753-16020 |
4A#..AE92 T=2.50 |
16 | ||
| 13753-16080 |
4A#..AE92 T=2.65 |
16 | ||
| 13753-16160 |
4A#..AE92 T=2.85 |
16 | ||
| 13753-16120 |
4A#..AE92 T=2.75 |
16 | ||
| 13753-16200 |
4A#..AE92 T=2.95 |
16 | ||
| 13753-16300 |
4A#..AE92 T=3.20 |
16 | ||
| 13753-16240 |
4A#..AE92 T=3.05 |
16 | ||
| 13753-16180 |
4A#..AE92 T=2.90 |
16 | ||
| 13753-16320 |
4A#..AE92 T=3.25 |
16 | ||
| 13753-16260 |
4A#..AE92 T=3.10 |
16 | ||
| 13753-16220 |
4A#..AE92 T=3.00 |
16 | ||
| 13753-16280 |
4A#..AE92 T=3.15 |
16 | ||
| 13753-16340 |
4A#..AE92 T=3.30 |
16 | ||
| Common parts | ||||
| 90119-10380 | ||||
| 90206-34001 | ||||
| 90520-31002 | ||||
| Linked diagrams | ||||
| 1709 | ||||
