AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
(8705- )4AF

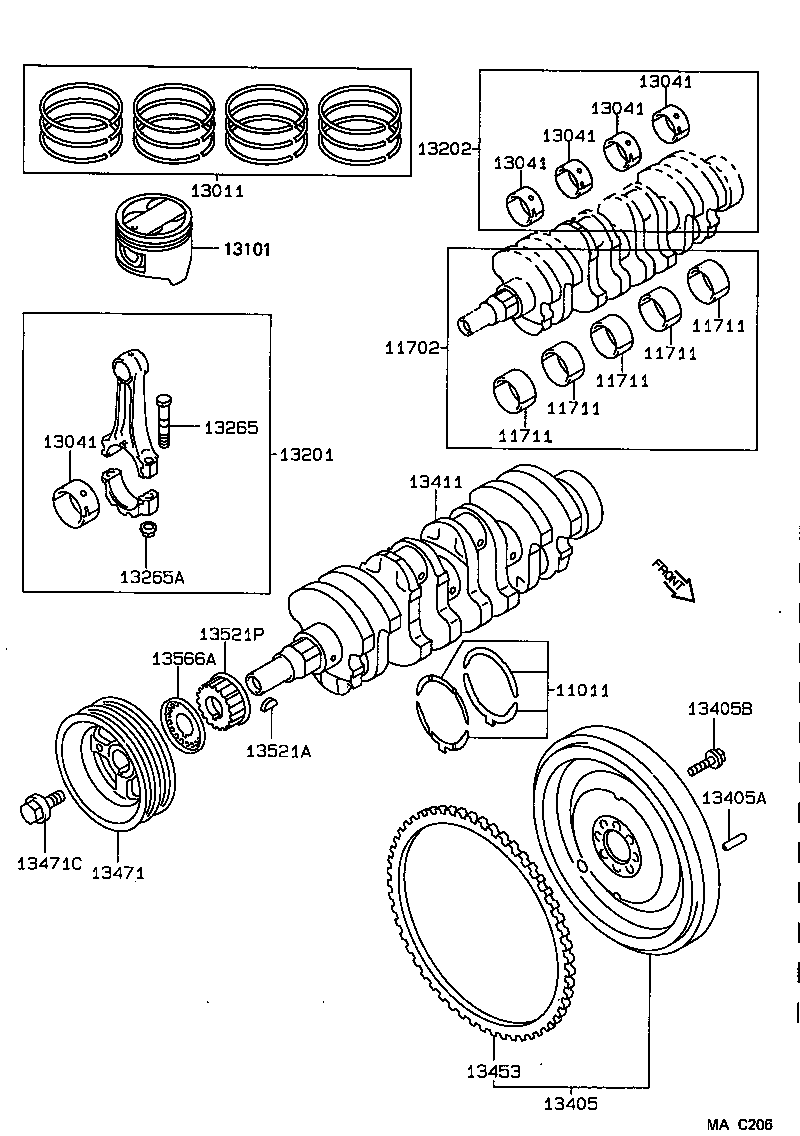

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-15010 |
4AF..AE92 STD |
1 | ||
| 11011-15010 |
4A#..AE92 STD |
1 | ||
| 11011-15010 |
4A#..AE92 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-16010 |
4A#..AE92 U/S 0.25 |
1 | ||
| 11704-15050 |
4A#..AE92 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1505001 |
4A#..AE92 MARK 1 |
5 | ||
| 11701-1505002 |
4A#..AE92 MARK 2 |
5 | ||
| 11701-1505004 |
4A#..AE92 MARK 4 |
5 | ||
| 11701-1601002 |
4AF..AE92 MARK 2 |
5 | ||
| 11701-1601004 |
4AF..AE92 MARK 4 |
5 | ||
| 11701-1505003 |
4A#..AE92 MARK 3 |
5 | ||
| 11701-1505005 |
4A#..AE92 MARK 5 |
5 | ||
| 11701-1601001 |
4AF..AE92 MARK 1 |
5 | ||
| 11701-1601003 |
4AF..AE92 MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE92..GTI,SR5,STD,XL MARK 2 |
5 | ||
| 11701-1601001 |
4A#..AE92..GTI,SR5,STD,XL MARK 1 |
5 | ||
| 11701-1601005 |
4A#..AE92..GTI,SR5,STD,XL MARK 5 |
5 | ||
| 11701-1601003 |
4A#..AE92..GTI,SR5,STD,XL MARK 3 |
5 | ||
| 11701-1601005 |
4AF..AE92 MARK 5 |
5 | ||
| 11701-1601004 |
4A#..AE92..GTI,SR5,STD,XL MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1505001 |
4A#..AE92 MARK 1 |
5 | ||
| 11701-1505002 |
4A#..AE92 MARK 2 |
5 | ||
| 11701-1505004 |
4A#..AE92 MARK 4 |
5 | ||
| 11701-1601002 |
4AF..AE92 MARK 2 |
5 | ||
| 11701-1601004 |
4AF..AE92 MARK 4 |
5 | ||
| 11701-1505003 |
4A#..AE92 MARK 3 |
5 | ||
| 11701-1505005 |
4A#..AE92 MARK 5 |
5 | ||
| 11701-1601001 |
4AF..AE92 MARK 1 |
5 | ||
| 11701-1601003 |
4AF..AE92 MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE92..GTI,SR5,STD,XL MARK 2 |
5 | ||
| 11701-1601001 |
4A#..AE92..GTI,SR5,STD,XL MARK 1 |
5 | ||
| 11701-1601005 |
4A#..AE92..GTI,SR5,STD,XL MARK 5 |
5 | ||
| 11701-1601003 |
4A#..AE92..GTI,SR5,STD,XL MARK 3 |
5 | ||
| 11701-1601005 |
4AF..AE92 MARK 5 |
5 | ||
| 11701-1601004 |
4A#..AE92..GTI,SR5,STD,XL MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1505001 |
4A#..AE92 MARK 1 |
5 | ||
| 11701-1505002 |
4A#..AE92 MARK 2 |
5 | ||
| 11701-1505004 |
4A#..AE92 MARK 4 |
5 | ||
| 11701-1601002 |
4AF..AE92 MARK 2 |
5 | ||
| 11701-1601004 |
4AF..AE92 MARK 4 |
5 | ||
| 11701-1505003 |
4A#..AE92 MARK 3 |
5 | ||
| 11701-1505005 |
4A#..AE92 MARK 5 |
5 | ||
| 11701-1601001 |
4AF..AE92 MARK 1 |
5 | ||
| 11701-1601003 |
4AF..AE92 MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE92..GTI,SR5,STD,XL MARK 2 |
5 | ||
| 11701-1601001 |
4A#..AE92..GTI,SR5,STD,XL MARK 1 |
5 | ||
| 11701-1601005 |
4A#..AE92..GTI,SR5,STD,XL MARK 5 |
5 | ||
| 11701-1601003 |
4A#..AE92..GTI,SR5,STD,XL MARK 3 |
5 | ||
| 11701-1601005 |
4AF..AE92 MARK 5 |
5 | ||
| 11701-1601004 |
4A#..AE92..GTI,SR5,STD,XL MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1505001 |
4A#..AE92 MARK 1 |
5 | ||
| 11701-1505002 |
4A#..AE92 MARK 2 |
5 | ||
| 11701-1505004 |
4A#..AE92 MARK 4 |
5 | ||
| 11701-1601002 |
4AF..AE92 MARK 2 |
5 | ||
| 11701-1601004 |
4AF..AE92 MARK 4 |
5 | ||
| 11701-1505003 |
4A#..AE92 MARK 3 |
5 | ||
| 11701-1505005 |
4A#..AE92 MARK 5 |
5 | ||
| 11701-1601001 |
4AF..AE92 MARK 1 |
5 | ||
| 11701-1601003 |
4AF..AE92 MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE92..GTI,SR5,STD,XL MARK 2 |
5 | ||
| 11701-1601001 |
4A#..AE92..GTI,SR5,STD,XL MARK 1 |
5 | ||
| 11701-1601005 |
4A#..AE92..GTI,SR5,STD,XL MARK 5 |
5 | ||
| 11701-1601003 |
4A#..AE92..GTI,SR5,STD,XL MARK 3 |
5 | ||
| 11701-1601005 |
4AF..AE92 MARK 5 |
5 | ||
| 11701-1601004 |
4A#..AE92..GTI,SR5,STD,XL MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1505001 |
4A#..AE92 MARK 1 |
5 | ||
| 11701-1505002 |
4A#..AE92 MARK 2 |
5 | ||
| 11701-1505004 |
4A#..AE92 MARK 4 |
5 | ||
| 11701-1601002 |
4AF..AE92 MARK 2 |
5 | ||
| 11701-1601004 |
4AF..AE92 MARK 4 |
5 | ||
| 11701-1505003 |
4A#..AE92 MARK 3 |
5 | ||
| 11701-1505005 |
4A#..AE92 MARK 5 |
5 | ||
| 11701-1601001 |
4AF..AE92 MARK 1 |
5 | ||
| 11701-1601003 |
4AF..AE92 MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE92..GTI,SR5,STD,XL MARK 2 |
5 | ||
| 11701-1601001 |
4A#..AE92..GTI,SR5,STD,XL MARK 1 |
5 | ||
| 11701-1601005 |
4A#..AE92..GTI,SR5,STD,XL MARK 5 |
5 | ||
| 11701-1601003 |
4A#..AE92..GTI,SR5,STD,XL MARK 3 |
5 | ||
| 11701-1601005 |
4AF..AE92 MARK 5 |
5 | ||
| 11701-1601004 |
4A#..AE92..GTI,SR5,STD,XL MARK 4 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-16140 |
4AF..AE92 STD |
1 | ||
| 13013-16140 |
4AF..AE92 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1503003 |
4AF..AE92 MARK 3 |
4 | ||
| 13041-1503002 |
4AF..AE92 MARK 2 |
4 | ||
| 13041-1503001 |
4AF..AE92 MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1503003 |
4AF..AE92 MARK 3 |
4 | ||
| 13041-1503002 |
4AF..AE92 MARK 2 |
4 | ||
| 13041-1503001 |
4AF..AE92 MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1503003 |
4AF..AE92 MARK 3 |
4 | ||
| 13041-1503002 |
4AF..AE92 MARK 2 |
4 | ||
| 13041-1503001 |
4AF..AE92 MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1503003 |
4AF..AE92 MARK 3 |
4 | ||
| 13041-1503002 |
4AF..AE92 MARK 2 |
4 | ||
| 13041-1503001 |
4AF..AE92 MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1503003 |
4AF..AE92 MARK 3 |
4 | ||
| 13041-1503002 |
4AF..AE92 MARK 2 |
4 | ||
| 13041-1503001 |
4AF..AE92 MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-16090 |
4AF..AE92 STD |
4 | ||
| 13103-16090 |
4AF..AE92 O/S 0.50 |
4 | ||
| 13101-1609003 |
4AF..AE92 STD,MARK 3 |
4 | ||
| 13101-1609001 |
4AF..AE92 STD,MARK 1 |
4 | ||
| 13101-1609002 |
4AF..AE92 STD,MARK 2 |
4 | ||
| 13101-1609003 |
4AF..AE92..GCC,GEN STD,MARK 3 |
4 | ||
| 13103-16090 |
4AF..AE92..GCC,GEN O/S 0.50 |
4 | ||
| 13101-1609002 |
4AF..AE92..GCC,GEN STD,MARK 2 |
4 | ||
| 13101-1609001 |
4AF..AE92..GCC,GEN STD,MARK 1 |
4 | ||
| 13101-16090 |
4AF..AE92 STD |
4 | ||
| 13101-1609002 |
4AF..AE92..GEN STD,MARK 2 |
4 | ||
| 13103-16090 |
4AF..AE92..GEN O/S 0.50 |
4 | ||
| 13101-1609001 |
4AF..AE92..GEN STD,MARK 1 |
4 | ||
| 13101-1609003 |
4AF..AE92..GEN STD,MARK 3 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-19055 |
4AF..AE92 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-15030 |
4AF..AE92 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-16010 |
4AF..AE92 |
8 | ||
| 13265-15020 |
4A#..AE92 |
8 | ||
| 13265-16010 |
4A#..AE92..GTI,SR5,STD,XL |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
4A#..AE92 |
8 | ||
| 90170-09001 |
4AF..AE92 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-15081 |
4AF..AE92..5F |
1 | ||
| 13405-15080 |
4AF..AE92..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
4A#..AE92..5F L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
4AF..AE92..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-15040 |
4AF..AE92 |
1 | ||
| 13411-15040 |
4AF..AE92 |
1 | ||
| 13411-15040 |
4AF..AE92 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
4A#..AE92..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-15070 |
4AF..AE92 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12101 |
4AF..AE92 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
4A#..AE92 |
1 | ||
| 95161-20519 |
4A#..AE92 |
1 | ||
| 95161-20519 |
4A#..AE92 |
1 | ||
| 95161-20519 |
4A#..AE92 |
1 | ||
| 95161-20519 |
4A#..AE92 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-15010 |
4AF..AE92 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-15010 |
4A#..AE92 |
1 | ||
