AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF

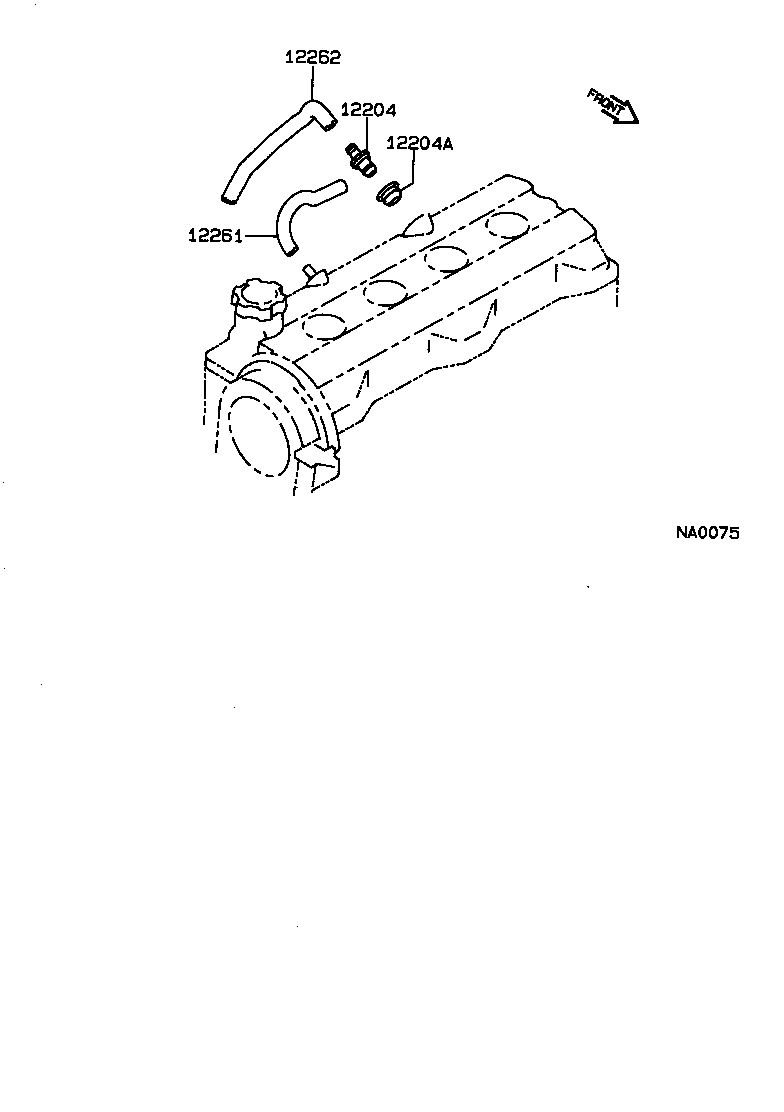

Click highlighted areas on diagram

diagram 12204 12204A 12261 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15040

4AF..AE92..GCC,GEN

 1
12204-15030

4AF..AE92

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

4AF..AE92

 1
12261 - HOSE, VENTILATION
12261-15090

4AF..AE92

 1
12262 - HOSE, VENTILATION, NO.2
12262-15040

4AF..AE92

 1
