AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF

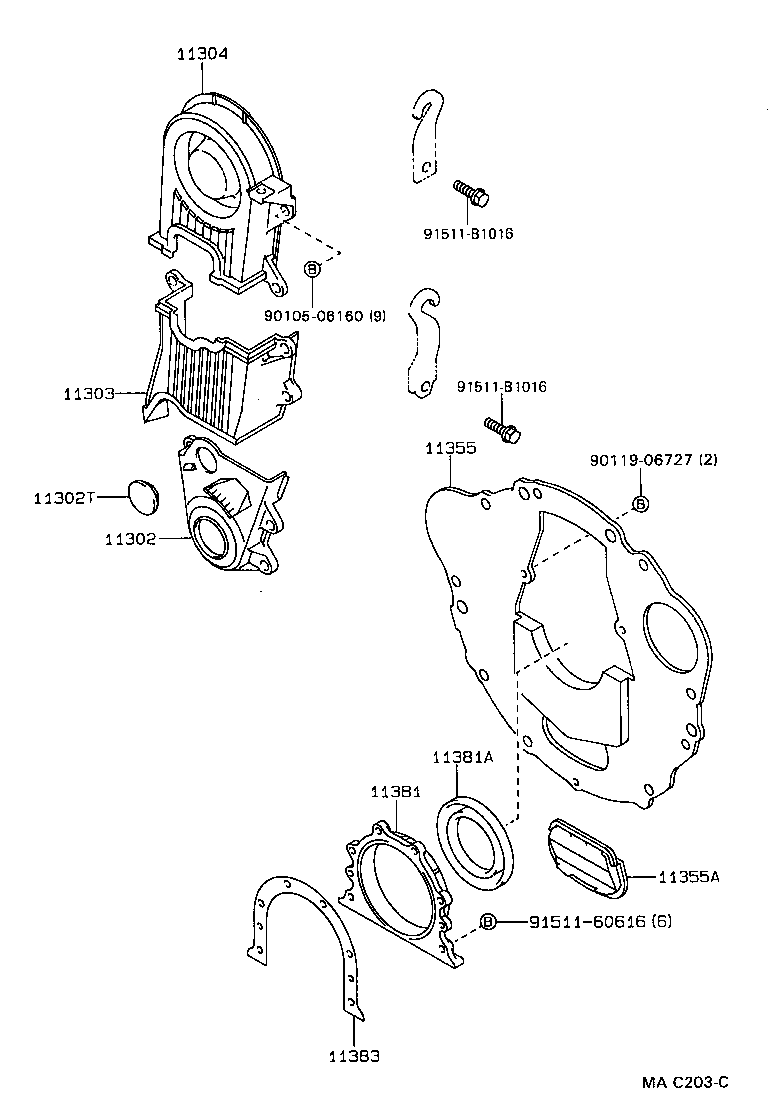

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11355A 11381 11381A 11383 9010506160 9011906727 9151160616 91511B1016 91511B1016
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15040

4AF..AE92

 1
11302T - PLUG, HOLE
90950-01391

4AF..AE92

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15040

4AF..AE92

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15020

4AF..AE92

 1
11355 - PLATE, REAR END
11355-15070

4AF..AE92..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4A#..AE92

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4A#..AE92

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15011

4A#..AE92

 1
11383-15010

4A#..AE92

 1
11383-15010

4A#..AE92

 1
Common parts
90105-06160
90119-06727
91511-60616
91511-B1016
