AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF

Click highlighted areas on diagram

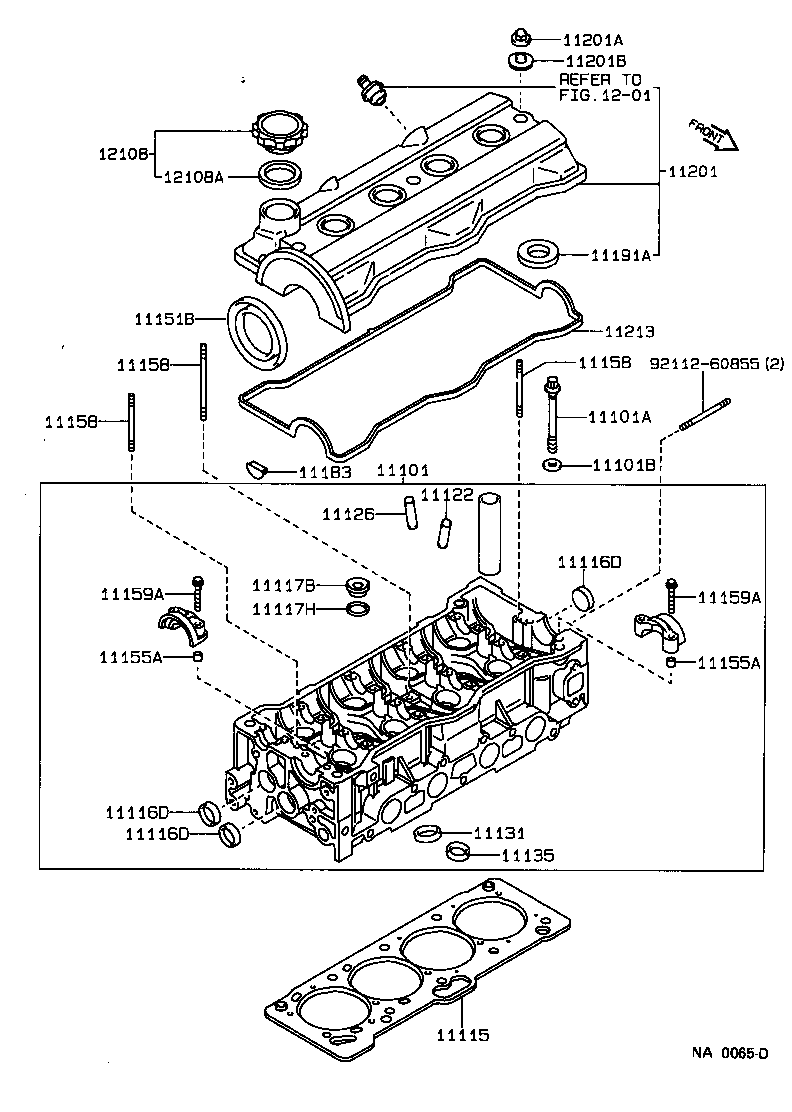

diagram 11101 11101A 11101B 11115 11116D 11116D 11116D 11117B 11117H 11122 11126 11131 11135 11151B 11155A 11155A 11158 11158 11158 11159A 11159A 11183 11191A 11201 11201A 11201B 11213 1201 12108 12108A 9211260855
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19225

4AF..AE92

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10059

4A#..AE92

EXHAUST

 5
90109-10058

4A#..AE92

INTAKE

 5
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

4A#..AE92

 10
11115 - GASKET, CYLINDER HEAD
11115-16081

4AF..AE92

 1
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF..AE92

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF..AE92

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF..AE92

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

4AF..AE92

 2
11117H - GASKET(FOR WATER HOLE)
90430-20004

4AF..AE92

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-15030

4AF..AE92

O/S 0.05

 8
11122-15030

4AF..AE92

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-15030

4AF..AE92

O/S 0.05

 8
11122-15030

4AF..AE92

STD

 8
11131 - SEAT, INTAKE VALVE
11131-15040

4AF..AE92

STD

 8
11132-15040

4AF..AE92

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-15030

4AF..AE92

STD

 8
11136-15030

4AF..AE92

O/S 0.03

 8
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35025

4AF..AE92

NOK

 1
90311-35013

4AF..AE92..GCC,GEN

 1
90311-35013

4AF..AE92

 1
90311-35008

4AF..AE92..GCC,GEN

NOK

 1
90311-35013

4AF..AE92..GCC,GEN

 1
11155A - PIN, RING W/HEAD
90253-09001

4AF..AE92

 6
11155A - PIN, RING W/HEAD
90253-09001

4AF..AE92

 6
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06074

4AF..AE92

L=80,L=80

 2
90116-06073

4AF..AE92

L=108,L=108

 1
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06074

4AF..AE92

L=80,L=80

 2
90116-06073

4AF..AE92

L=108,L=108

 1
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06074

4AF..AE92

L=80,L=80

 2
90116-06073

4AF..AE92

L=108,L=108

 1
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

4AF..AE92

 22
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

4AF..AE92

 22
11183 - PLUG, SEMICIRCULAR
11183-15020

4AF..AE92

 1
11191A - GASKET(FOR SPARK PLUG TUBE)
11193-15010

4AF..AE92

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-15900

4AF..AE92

 1
11210-15050

4AF..AE92..GCC,GEN

 1
11210-16100

4AF..AE92

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06008

4AF..AE92

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08020

4AF..AE92

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-15050

4AF..AE92

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-62010

4AF..AE92

 1
12180-62010

4AF..AE92

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

4A#..AE92

 1
Common parts
92112-60855
Linked diagrams
1201
