Toyota Corolla cp/hb AE92 ENGINE OVERHAUL GASKET KIT

Home Blog About Contact Search

AE92R-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

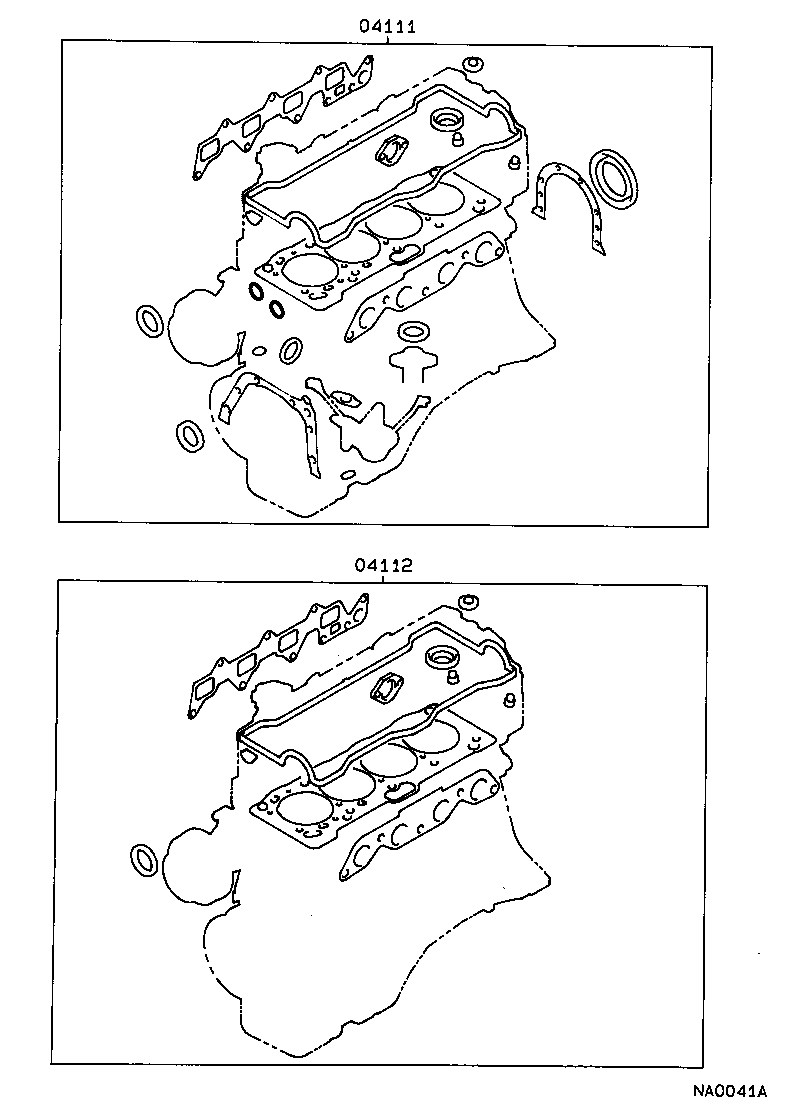

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-16120	4AF..AE92	05/1987 - 08/1987	1
04111-16122	4AF..AE92	09/1988 - 01/1990	1
04111-16121	4AF..AE92	08/1987 - 09/1988	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-16120	4AF..AE92	05/1987 - 08/1987	1
04112-16121	4AF..AE92	08/1987 - 09/1988	1
04112-16122	4AF..AE92	09/1988 - 01/1990	1
