AE92R-ACHDU (1987)
Toyota Corolla Cp/Hb

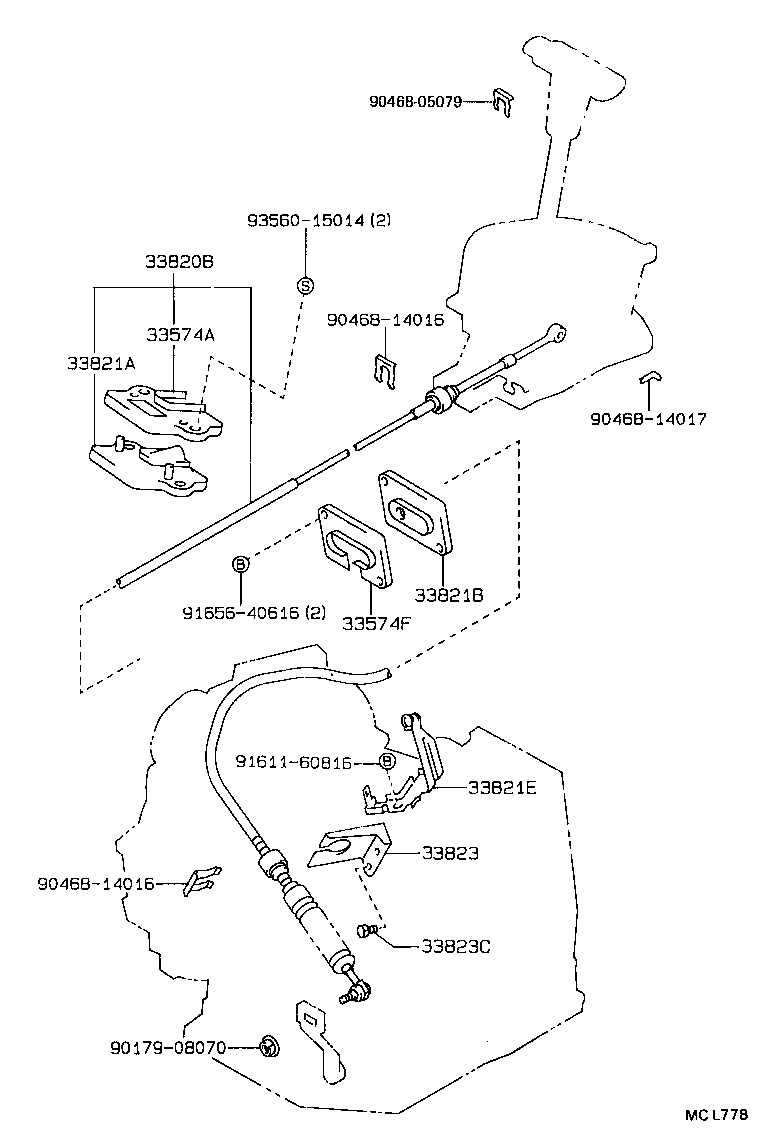

ILLUST NO. 2 OF 2(8705- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE92,EE90..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12030 |
AE92,EE90..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12020 |
AE92..3FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01395 |
AE92,EE90..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01391 |
AE92,EE90..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01397 |
AE92..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12050 |
AE92..3FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
AE92,EE90..3FC |
2 | ||
| Common parts | ||||
| 90179-08070 | ||||
| 90468-05079 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

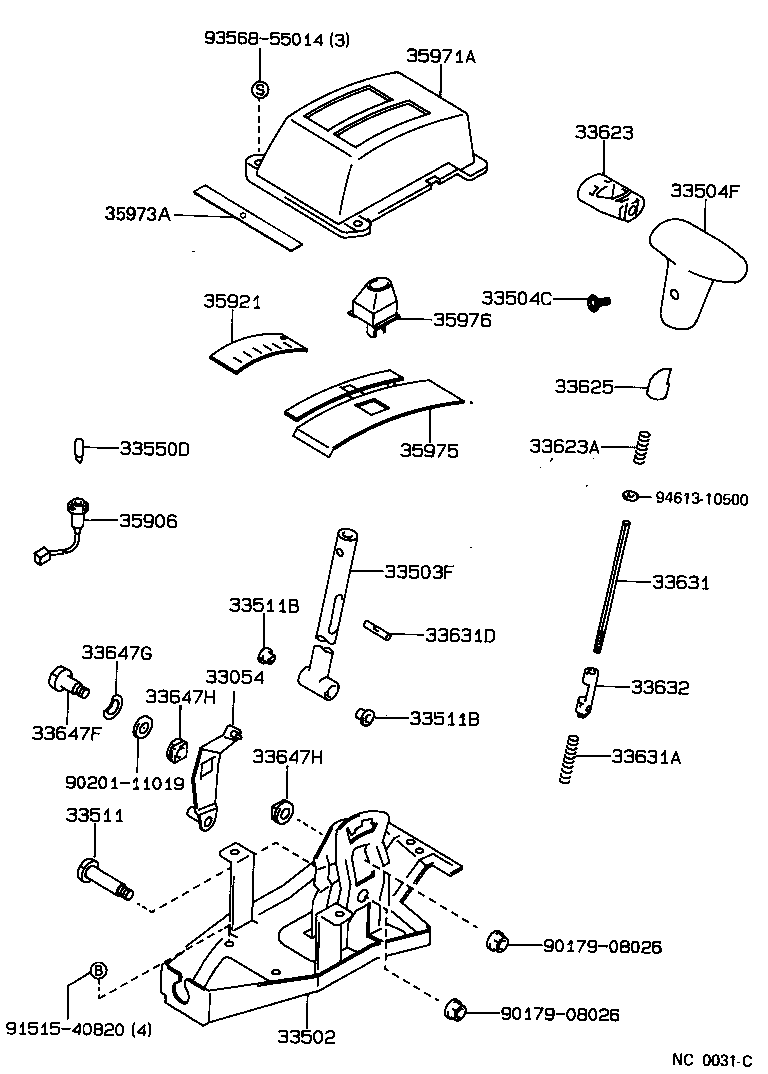

ILLUST NO. 1 OF 2(8705- )RHD..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12030 |
AE92,EE90..RHD..3FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12270 |
AE92,EE90..RHD..3FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12190 |
AE92,EE90..RHD..3FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
AE92,EE90..RHD..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1214005 |
AE92,EE90..RHD..3FC DARK BEIGE,TRIM4# |
1 | ||
| 33542-1214004 |
AE92..RHD..3FC..GEN DARK BLUE,TRIM8# |
1 | ||
| 33542-1214003 |
AE92,EE90..RHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12050 |
AE92,EE90..RHD..3FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
AE92,EE90..RHD..3FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
AE92,EE90..RHD..3FC |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11025 |
AE92,EE90..RHD..3FC 12V 1.7W |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1207004 |
AE92..RHD..3FC..GEN DARK BLUE,TRIM8# |
1 | ||
| 33623-1207005 |
AE92,EE90..RHD..3FC DARK BEIGE,TRIM4# |
1 | ||
| 33623-1207003 |
AE92,EE90..RHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07055 |
AE92,EE90..RHD..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-16030 |
AE92,EE90..RHD..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12090 |
AE92,EE90..RHD..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-09077 |
AE92,EE90..RHD..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04004 |
AE92,EE90..RHD..3FC |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-16010 |
AE92,EE90..RHD..3FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-12010 |
AE92,EE90..RHD..3FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-11004 |
AE92,EE90..RHD..3FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-11009 |
AE92,EE90..RHD..3FC |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-11009 |
AE92,EE90..RHD..3FC |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12080 |
AE92,EE90..RHD..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12270 |
AE92,EE90..RHD..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1213005 |
AE92,EE90..RHD..3FC DARK BEIGE,TRIM4# |
1 | ||
| 35971-1213001 |
AE92,EE90..RHD..3FC..GEN BLACK,TRIM4# |
1 | ||
| 35971-1213004 |
AE92..RHD..3FC..GEN DARK BLUE,TRIM8# |
1 | ||
| 35971-1213003 |
AE92,EE90..RHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-12020 |
AE92,EE90..RHD..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12150 |
AE92,EE90..RHD..3FC |
1 | ||
| 35975-1217004 |
AE92..RHD..3FC..GEN DARK BLUE,TRIM8# |
1 | ||
| 35975-1217005 |
AE92,EE90..RHD..3FC..GEN DARK BEIGE,TRIM4# |
1 | ||
| 35975-1217003 |
AE92,EE90..RHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12010 |
AE92,EE90..RHD..3FC |
1 | ||
| 35976-1204004 |
AE92..RHD..3FC..GEN DARK BLUE,TRIM8# |
1 | ||
| 35976-1204001 |
AE92,EE90..RHD..3FC BLACK |
1 | ||
| 35976-1204005 |
AE92,EE90..RHD..3FC..GEN DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 90201-11019 | ||||
| 91515-40820 | ||||
| 93568-55014 | ||||
| 94613-10500 | ||||
