AE92L-ACMDU (1987)
Toyota Corolla Cp/Hb
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE92..XL NO.1 |
1 | ||
| 82991-12040 |
AE92..XL NO.2 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE92..XL NO.1 |
1 | ||
| 82991-12040 |
AE92..XL NO.2 |
1 | ||
| Common parts | ||||
| 82985-12010 | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||

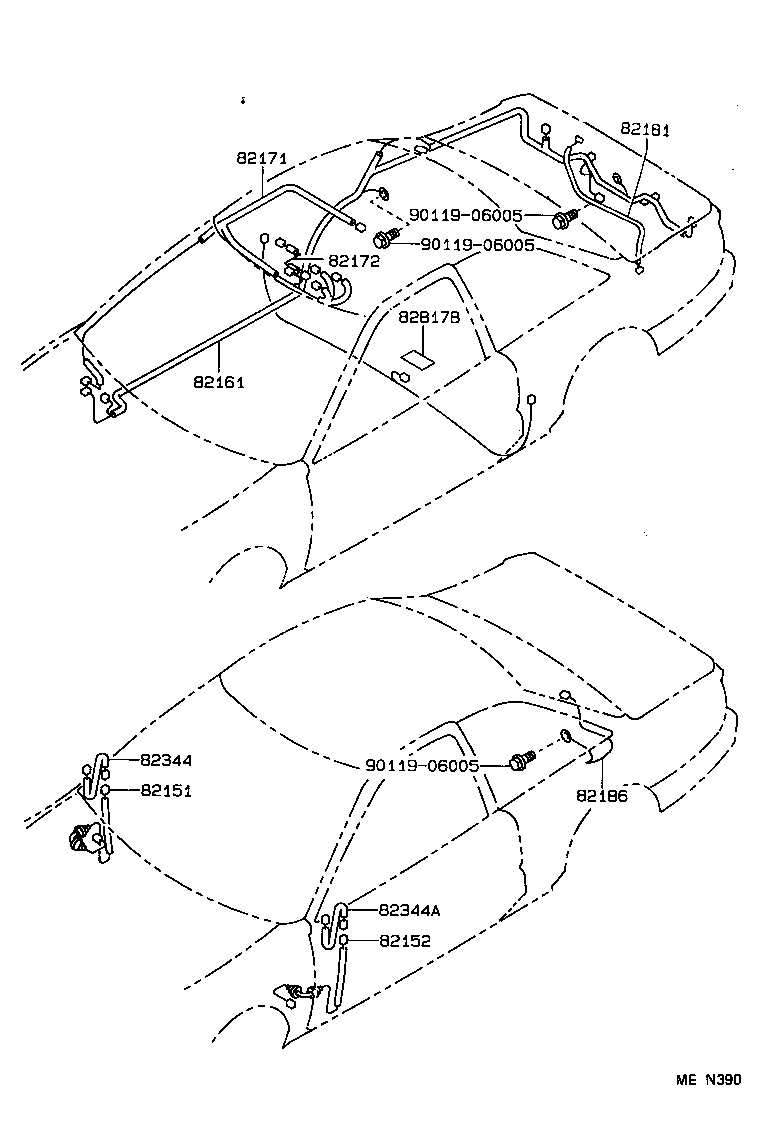

ILLUST NO. 2 OF 5(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82152-12330 |
AE92..LHD..GEN W(*RCM) |
1 | ||
| 82151-12730 |
AE92..LHD..GEN W(*PW) |
1 | ||
| 82152-12330 |
AE92..LHD..XL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12410 |
AE92..LHD..XL |
1 | ||
| 82151-12410 |
AE92..LHD..GEN W(*RCM) |
1 | ||
| 82152-12640 |
AE92..LHD..GEN W(*PW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1E180 |
AE92..LHD..GEN W(RR SPOILER) |
1 | ||
| 82161-1A570 |
AE92..LHD..XL |
1 | ||
| 82161-1H540 |
AE92..LHD..GEN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12240 |
AE92..LHD..XL |
1 | ||
| 82171-12250 |
AE92..LHD..XL W(SUN ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
AE92..XL..GEN |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12140 |
AE92..LHD..XL |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-12010 |
AE92..GEN;AE92,EE90..GL,GT |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-12010 |
AE92..GEN;AE92,EE90..GL,GT |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||

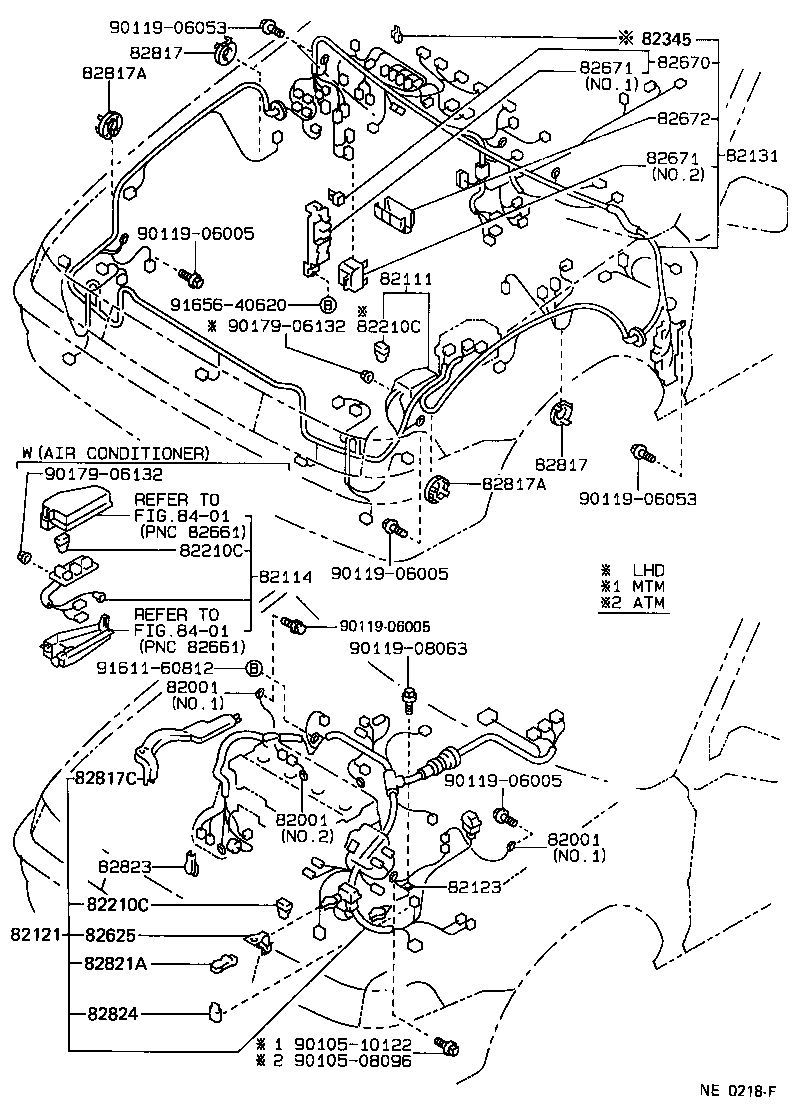

ILLUST NO. 1 OF 5(8705- )AE92..SR5,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE92..GT,GTI,SR5,XL NO.1 |
2 | ||
| 90980-07236 |
AE92..XL NO.2 |
1 | ||
| 90980-07206 |
AE92,EE90 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE92..GT,GTI,SR5,XL NO.1 |
2 | ||
| 90980-07236 |
AE92..XL NO.2 |
1 | ||
| 90980-07206 |
AE92,EE90 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE92..GT,GTI,SR5,XL NO.1 |
2 | ||
| 90980-07236 |
AE92..XL NO.2 |
1 | ||
| 90980-07206 |
AE92,EE90 NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1E140 |
AE92..LHD..GEN |
1 | ||
| 82111-1A360 |
AE92..LHD..XL |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE92,EE90 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A610 |
AE92..LHD..5F..XL |
1 | ||
| 82121-1A611 |
AE92..LHD..5F..XL |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12170 |
AE92,EE90..MTM..(GL,STD,XL) BATTERY=34B19L OR 32C24L |
1 | ||
| 82123-12160 |
AE92,EE90..(4F,4FC,5F)..(GCC,GEN) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1E200 |
AE92..LHD..XL |
1 | ||
| 82131-1E201 |
AE92..LHD..XL |
1 | ||
| 82131-1K810 |
AE92..LHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
AE92..GCC,GEN 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE92,EE90..GL,STD,XL 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
AE92..GCC,GEN 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE92,EE90..GL,STD,XL 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
AE92..GCC,GEN 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
AE92,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE92,EE90..GL,STD,XL 60A,TERM.:FEMALE,YEL |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12010 |
AE92,EE90..GL,STD,XL |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
AE92,EE90 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,EE90 NO.1 |
1 | ||
| 82671-12020 |
AE92..XL..GEN NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,EE90 NO.1 |
1 | ||
| 82671-12020 |
AE92..XL..GEN NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12100 |
AE92..XL..GEN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE92,EE90 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE92,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE92,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE92,EE90 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12700 |
AE92..LHD..XL;AE92..(STD,XL)..SA |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE92,EE90 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE92,EE90 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90179-06132 | ||||
| 91611-60812 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-20050 | ||||
| 82345-32020 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-12020 |
AE92..XL..GEN |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12070 |
AE92..XL..GEN |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12070 |
AE92..XL..GEN |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE92..XL..GEN |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE92..XL..GEN |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE92..XL |
1 | ||
| Common parts | ||||
| 82981-12020 | ||||
| 82981-17010 | ||||
| 82982-12030 | ||||
| 82982-12070 | ||||
| 82982-14030 | ||||
| 82982-22050 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
