AE92L-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL..GEN

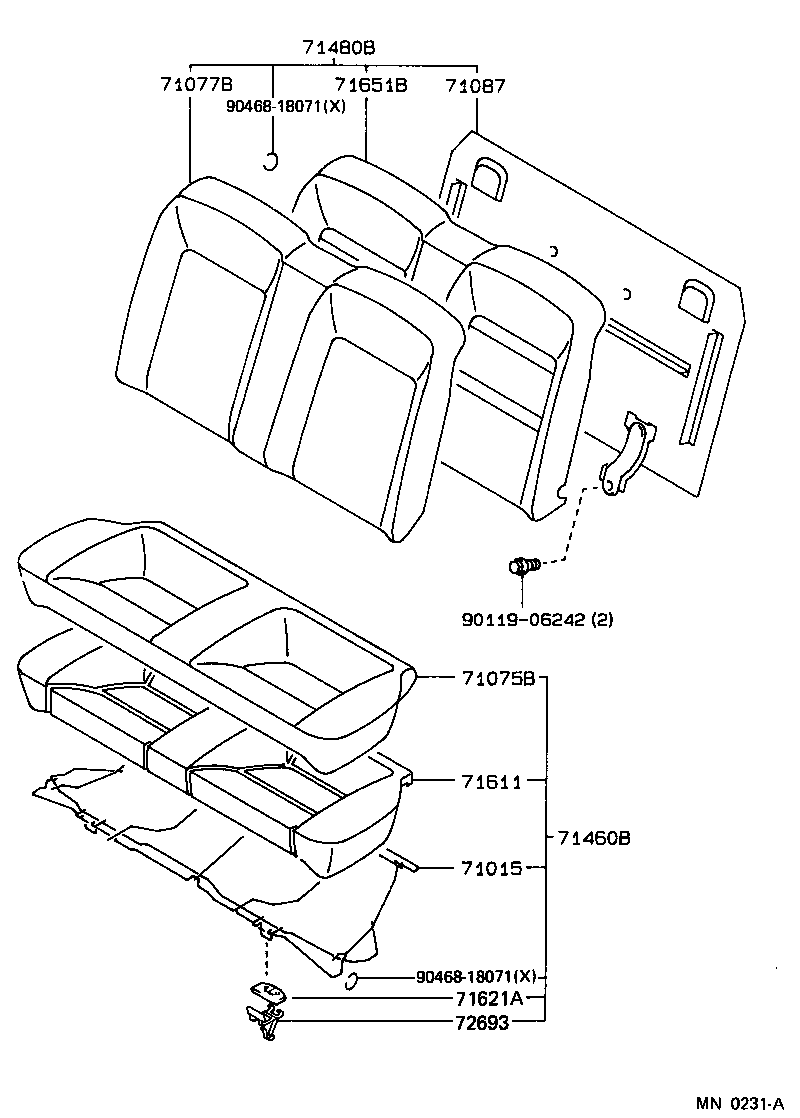

Click highlighted areas on diagram

diagram 71015 71075B 71077B 71087 71460B 71480B 71611 71621A 71651B 72693 9011906242 9046818071 9046818071
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-12280

AE92..XL..GEN

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1E29003

AE92..LHD..XL

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

 1
71075-1E32005

AE92..LHD..XL

DARK BEIGE,TRIM4#

 1
71075-1E32003

AE92..LHD..XL

SHADOW GRAY,TRIM1#

 1
71075-1E29004

AE92..LHD..XL

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

 1
71075-1E29005

AE92..LHD..XL

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

 1
71075-1E32004

AE92..LHD..XL

DARK BLUE,TRIM8#

 1
71075-1E66004

AE92..LHD..GEN

DARK BLUE,TRIM8#

 1
71075-1E66003

AE92..LHD..GEN

SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1K04004

AE92..LHD..XL

DARK BLUE,TRIM8#

 1
71077-1K07003

AE92..LHD..XL

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

 1
71077-1K04003

AE92..LHD..XL

SHADOW GRAY,TRIM1#

 1
71077-1K41003

AE92..LHD..GEN

SHADOW GRAY,TRIM1#

 1
71077-1K07005

AE92..LHD..XL

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

 1
71077-1K04005

AE92..LHD..XL

DARK BEIGE,TRIM4#

 1
71077-1K07004

AE92..LHD..XL

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

 1
71077-1K41004

AE92..LHD..GEN

DARK BLUE,TRIM8#

 1
71087 - BOARD SUB-ASSY, REAR SEAT BACK
71087-12070

AE92..XL..GEN

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1E32005

AE92..LHD..XL

***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

 1
71460-1E32004

AE92..LHD..XL

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

 1
71460-1E32003

AE92..LHD..XL

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

 1
71460-1E35004

AE92..LHD..XL

***,DARK BLUE,TRIM8#

 1
71460-1E35003

AE92..LHD..XL

***,SHADOW GRAY,TRIM1#

 1
71460-1E35005

AE92..LHD..XL

***,DARK BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-12580

AE92..XL..GEN

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-12270

AE92..XL..GEN

 2
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-12670

AE92..XL..GEN

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12050

AE92..XL..GEN

 2
72693-12020

AE92..XL..GEN

 2
Common parts
90119-06242
90468-18071
