AE92L-ACMDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1991
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF..5F

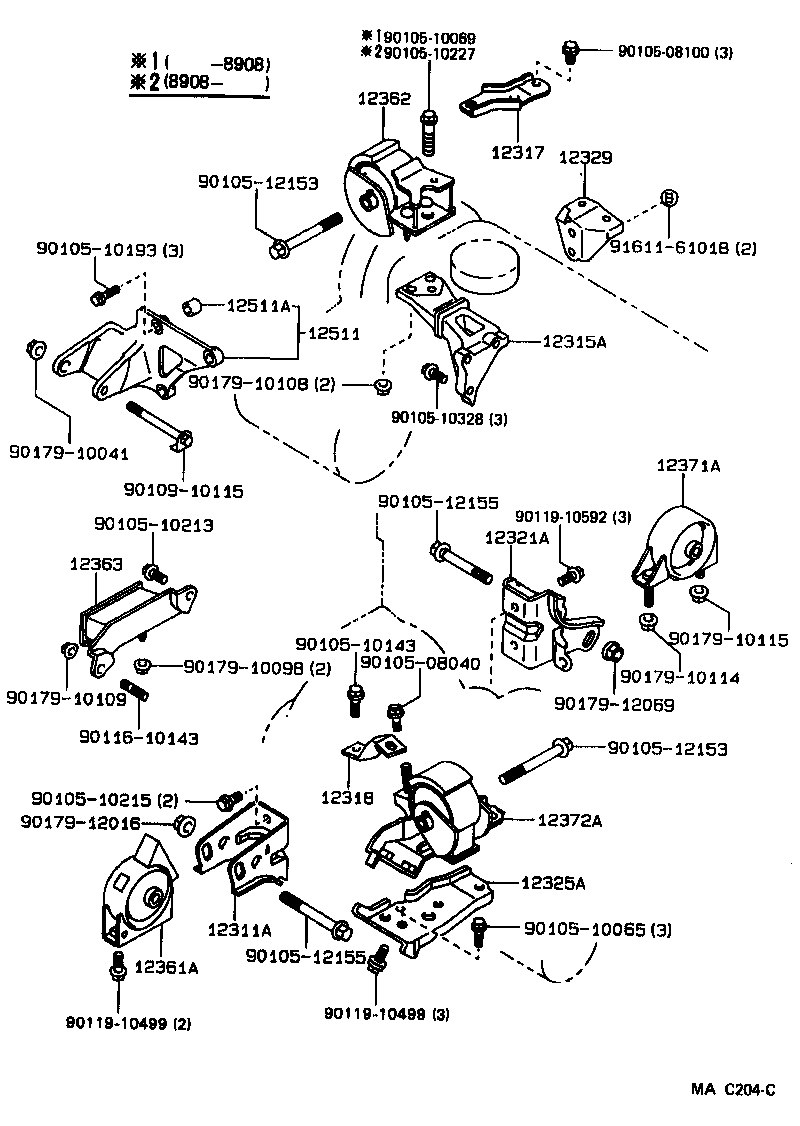

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12329 12361A 12362 12363 12371A 12372A 12511 12511A 9010508040 9010508100 9010510065 9010510069 9010510143 9010510193 9010510213 9010510215 9010510227 9010510328 9010512153 9010512153 9010512155 9010512155 9010910115 9011610143 9011910499 9011910499 9011910592 9017910041 9017910098 9017910108 9017910109 9017910114 9017910115 9017912016 9017912069 9161161018
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16040

4A#..AE92

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15070

4AF..AE92

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-15010

4AF..AE92

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16010

4A#..AE92..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15050

4A#..AE92..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16060

4A#..AE92..5F

 1
12329 - SUPPORT, ENGINE MOUNTING STAY
12329-15010

4AF..AE92

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16040

4A#..AE92..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15130

4AF..AE92

 1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-15020

4A#..AE92..5F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15200

4A#..AE92..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15110

4AF..AE92..3FC,5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15040

4AF..AE92

 1
Common parts
90105-08040
90105-08100
90105-10065
90105-10069
90105-10143
90105-10193
90105-10213
90105-10215
90105-10227
90105-10328
90105-12153
90105-12155
90109-10115
90116-10143
90119-10499
90119-10592
90179-10041
90179-10098
90179-10108
90179-10109
90179-10114
90179-10115
90179-12016
90179-12069
91611-61018
