AE92L-ACMDU (1987)
Toyota Corolla Cp/Hb
Production
May 1987
-
Jun 1991
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )4AF

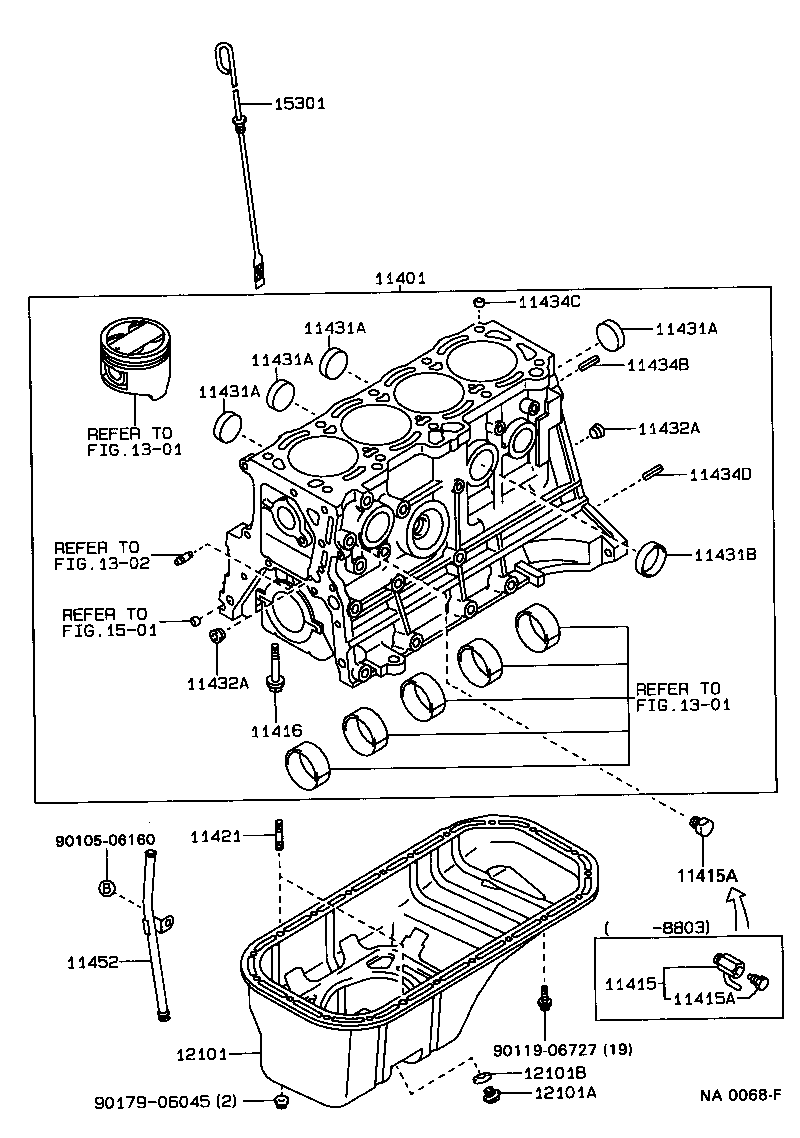

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19415 |
4AF..AE92..GCC,GEN |
1 | ||
| 11401-19415 |
4AF..AE92 |
1 | ||
| 11401-19415 |
4AF..AE92..GEN;4AF..AE92..3FC..GCC |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09088 |
4A#..AE92 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52013 |
4AF..AE92 |
1 | ||
| 90345-52013 |
4A#..AE92 |
1 | ||
| 90345-52013 |
4AF..AE92 |
1 | ||
| 90910-09087 |
4A#..AE92 |
1 | ||
| 90345-52013 |
4A#..AE92 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52013 |
4AF..AE92 |
1 | ||
| 90345-52013 |
4A#..AE92 |
1 | ||
| 90345-52013 |
4AF..AE92 |
1 | ||
| 90910-09087 |
4A#..AE92 |
1 | ||
| 90345-52013 |
4A#..AE92 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
4A#..AE92 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06022 |
4A#..AE92 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE92 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE92 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE92 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE92 |
6 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
4A#..AE92 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
4A#..AE92 |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
4A#..AE92 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
4A#..AE92 L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
4A#..AE92 L=12,OD=13 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
4A#..AE92 L=14,OD=6 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-15020 |
4AF..AE92 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-15070 |
4A#..AE92 |
1 | ||
| 12101-15070 |
4AF..AE92..GEN,SA |
1 | ||
| 12101-15070 |
4AF..AE92 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
4A#..AE92 |
1 | ||
| 90341-12012 |
4A#..AE92 |
1 | ||
| 90341-12026 |
4A#..AE92 |
1 | ||
| 90341-12026 |
4A#..AE92 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
4A#..AE92 |
1 | ||
| 90430-12027 |
4A#..AE92 |
1 | ||
| 90430-12019 |
4A#..AE92 |
1 | ||
| 90430-12027 |
4AF..AE92 |
1 | ||
| 90430-12019 |
4A#..AE92 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-15040 |
4AF..AE92 |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90119-06727 | ||||
| 90179-06045 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
