AE92L-ACHDU (1987)
Toyota Corolla Cp/Hb

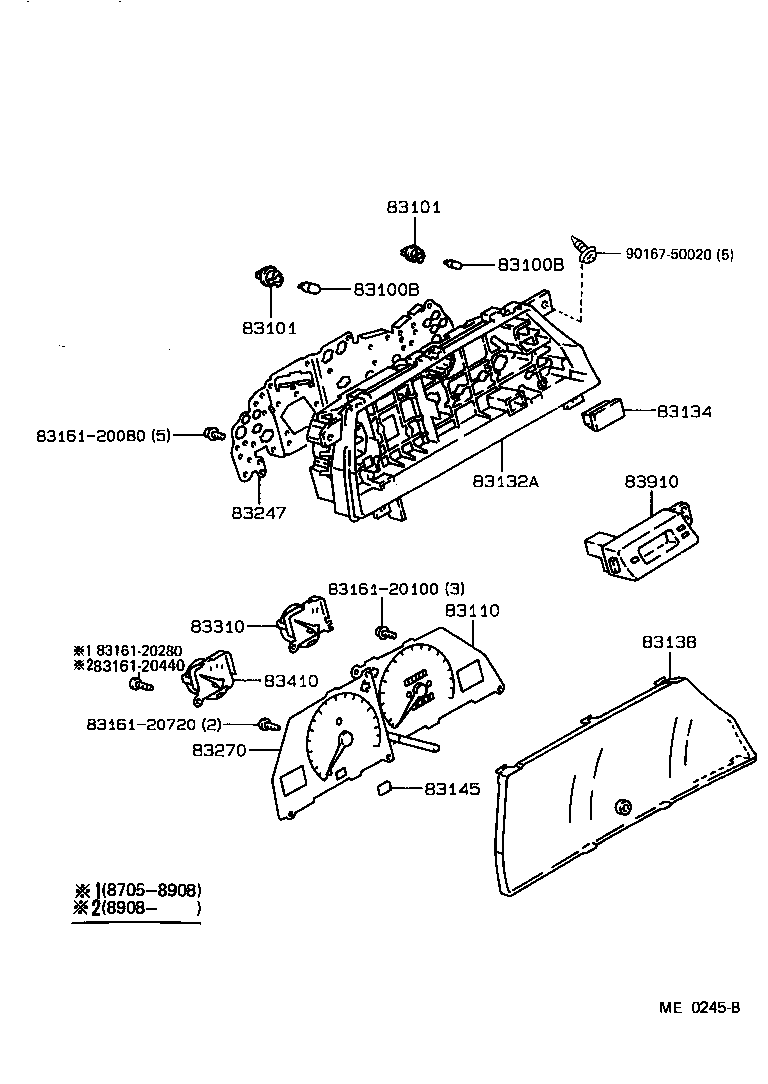

ILLUST NO. 1 OF 2(8705- )AE92..LHD..XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE92..LHD..(SR5,XL);EE90..LHD..(STD,XL)..GEN 12V 3.4W |
7 | ||
| 90981-11018 |
AE92,EE90..LHD..(SR5,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE92..LHD..(SR5,XL);EE90..LHD..(STD,XL)..GEN 12V 3.4W |
7 | ||
| 90981-11018 |
AE92,EE90..LHD..(SR5,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AE92..LHD..XL 12V 3.4W BULB |
7 | ||
| 83101-14040 |
AE92,EE90..LHD..(SR5,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AE92..LHD..XL 12V 3.4W BULB |
7 | ||
| 83101-14040 |
AE92,EE90..LHD..(SR5,STD,XL) 14V 1.4W BULB |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E290 |
AE92..LHD..XL |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-1A060 |
AE92..LHD..XL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-1A260 |
AE92..LHD..XL |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A020 |
AE92..LHD..XL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A160 |
AE92..LHD..XL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1A460 |
AE92..LHD..XL |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A060 |
AE92..LHD..XL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A100 |
AE92..LHD..XL |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A020 |
AE92..LHD..XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12430 |
AE92..LHD..XL |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 90167-50020 | ||||
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
AE92..LHD..3FC;AE92..5F..XL..GEN |
1 | ||
| 83710-12460 |
EE90;AE92..5F;AE92..LHD..3FC |
1 | ||
| 83710-12460 |
AE92..5F..XL;AE92..LHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
AE92..LHD..3FC;AE92..5F..XL..GEN |
1 | ||
| 83710-12460 |
EE90;AE92..5F;AE92..LHD..3FC |
1 | ||
| 83710-12460 |
AE92..5F..XL;AE92..LHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
AE92..LHD..3FC;AE92..5F..XL..GEN |
1 | ||
| 83710-12460 |
EE90;AE92..5F;AE92..LHD..3FC |
1 | ||
| 83710-12460 |
AE92..5F..XL;AE92..LHD..3FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12521 |
AE92..LHD..XL |
1 | ||
| 83710-12520 |
AE92..LHD..XL |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12521 |
AE92..LHD..XL |
1 | ||
| 83710-12520 |
AE92..LHD..XL |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91651-40614 | ||||
