AE92L-ACHDU (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..XL ; (8908- )AE92..GCC

Click highlighted areas on diagram

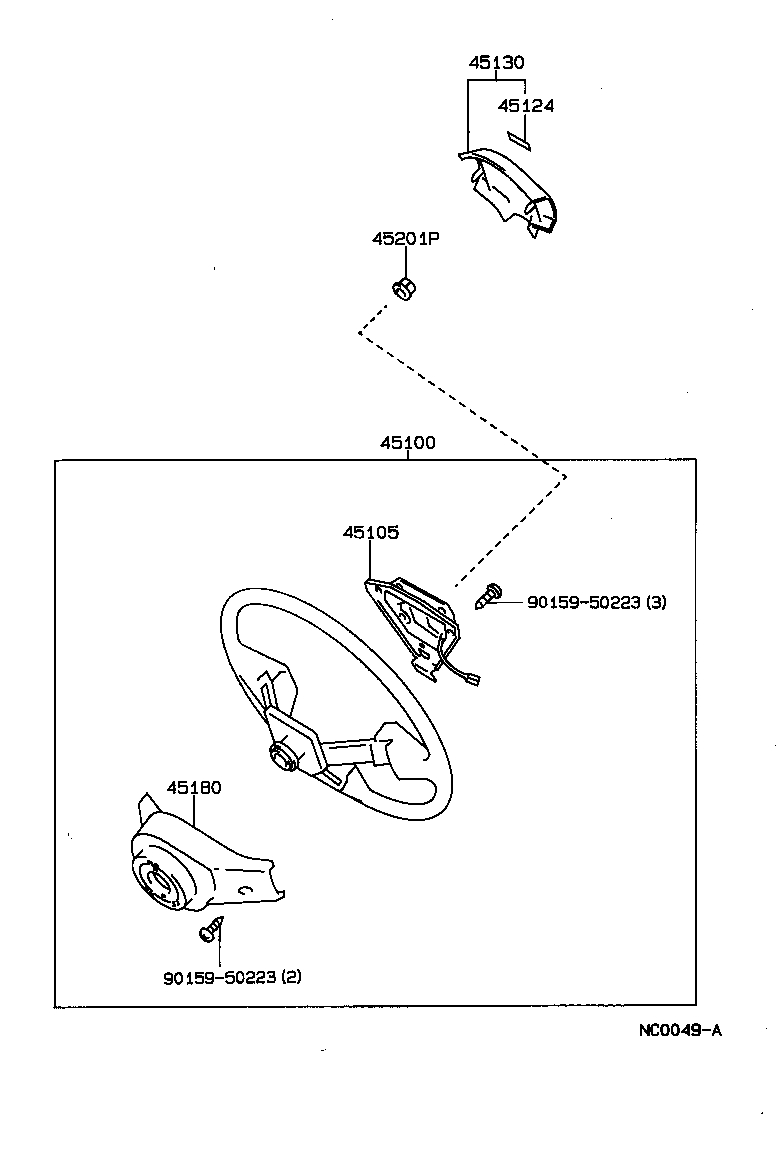

diagram 45100 45105 45124 45130 45180 45201P 9015950223 9015950223
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1253205

AE92..XL..GEN

3-SPOKE,URETHANE,DARK BEIGE,TRIM4#

 1
45100-1253004

AE92..XL..GEN

3-SPOKE,URETHANE,DARK BLUE,TRIM8#

 1
45100-1253005

AE92..XL..GEN

3-SPOKE,URETHANE,DARK BEIGE,TRIM4#

 1
45100-1253003

AE92..XL..GEN

3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12050

AE92..XL..GEN

 1
45124 - ORNAMENT, STEERING WHEEL MARK
45124-12040

AE92..XL

 1
45130 - BUTTON ASSY, HORN
45130-1239004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
45130-1239005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
45130-1239003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
45130-1239105

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1207003

AE92..XL..GEN

SHADOW GRAY,TRIM1#

 1
45180-1207005

AE92..XL..GEN

DARK BEIGE,TRIM4#

 1
45180-1207004

AE92..XL..GEN

DARK BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AE92,EE90

 1
Common parts
90159-50223
