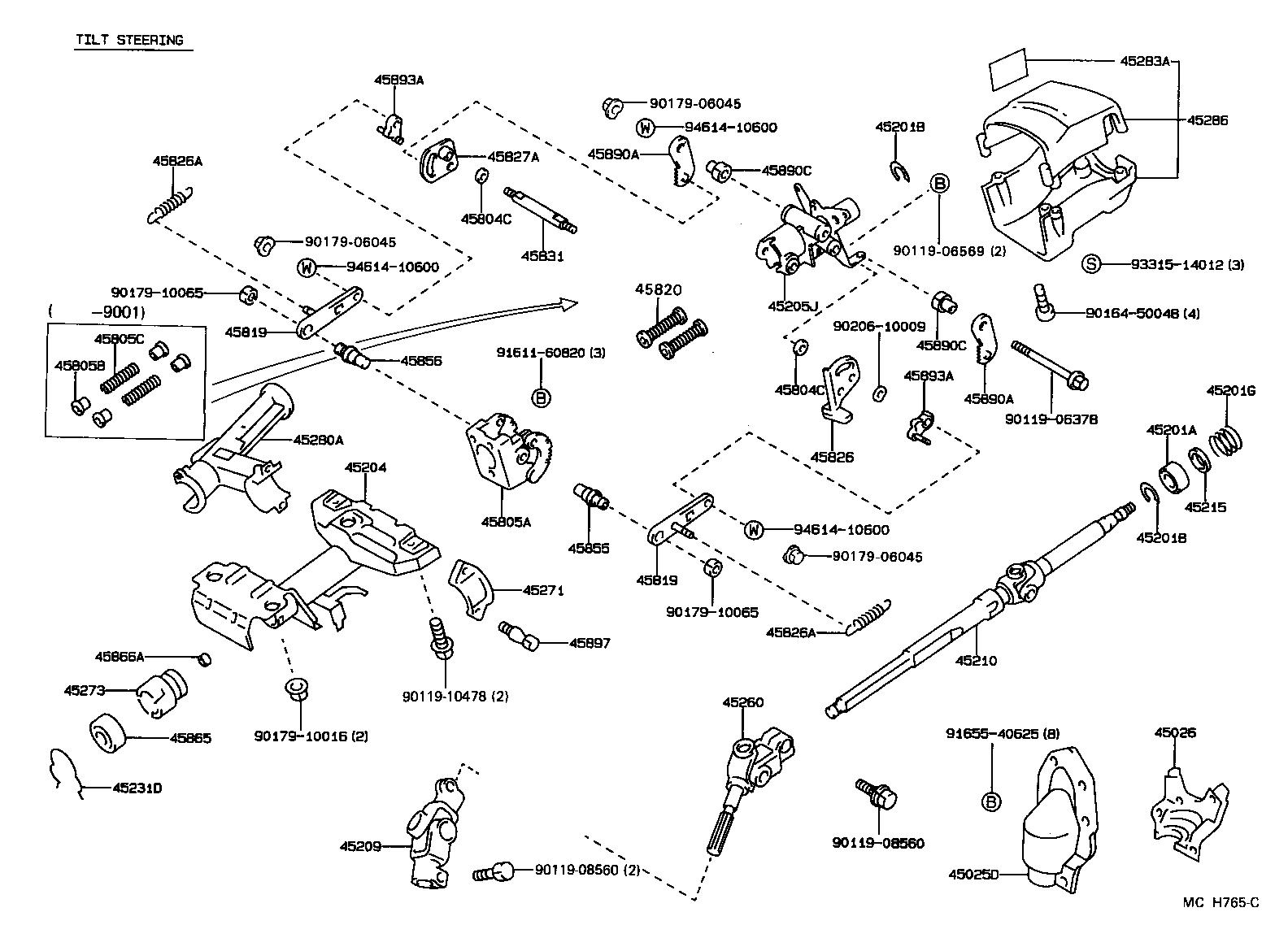

AE92L-ACHDU (1987)
Toyota Corolla Cp/Hb
(8705- )LHD..STD ; (8705- )GL,GTI,XL..GCC,GEN ; (8808- )GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE92,EE90..LHD W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE92,EE90..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE92,EE90..LHD W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE92,EE90..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18004 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE92,EE90 T=1.20 |
2 | ||
| 90520-17196 |
AE92,EE90..LHD..(GL,STD,XL) T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE92,EE90..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE92,EE90 T=1.20 |
2 | ||
| 90520-17196 |
AE92,EE90..LHD..(GL,STD,XL) T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE92,EE90..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-12090 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45204-12090 |
AE92,EE90..LHD |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-12260 |
AE92,EE90..LHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE92,EE90 |
1 | ||
| 45209-12050 |
AE92,EE90..LHD..(GL,STD,XL)..GEN W(POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45210-12340 |
AE92,EE90..LHD..(GL,SR5,STD,XL) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-01005 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 90521-01005 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL |
1 | ||
| 90521-01005 |
AE92,EE90..LHD;AE92..RHD..GTI |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45271-12050 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE92,EE90 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12100 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 45280-12120 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294303 |
AE92,EE90..LHD..(GL,XL) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-1294105 |
AE92,EE90..LHD..(GL,STD,XL) BEIGE,TRIM4# |
1 | ||
| 45286-1294304 |
AE92,EE90..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294305 |
AE92,EE90..LHD..(GL,STD,XL) W(TILT STEERING),BEIGE,TRIM4# |
1 | ||
| 45286-1294104 |
AE92,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 45286-1294103 |
AE92,EE90..LHD..(GL,SR5,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
4 | ||
| 45805C - SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) | ||||
| 90501-20072 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
2 | ||
| 45819-12010 |
AE92,EE90..LHD;AE92..RHD..GTI |
2 | ||
| 45819-12010 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
2 | ||
| 45819-12010 |
AE92,EE90..LHD;AE92..RHD..GTI |
2 | ||
| 45819-12010 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12011 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45827-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-12010 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL OD=9.989-9.998 |
1 | ||
| 45855-12020 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL OD=9.998-10.007 |
1 | ||
| 45855-12020 |
AE92,EE90..LHD;AE92..RHD..GTI OD=9.998-10.007 |
1 | ||
| 45855-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) OD=9.998-10.007 |
1 | ||
| 45855-12010 |
AE92,EE90..LHD;AE92..RHD..GTI OD=9.989-9.998 |
1 | ||
| 45855-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) OD=9.989-9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-12020 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL OD=9.998-10.007 |
1 | ||
| 45856-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) OD=9.989-9.998 |
1 | ||
| 45856-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) OD=9.998-10.007 |
1 | ||
| 45856-12010 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL OD=9.989-9.998 |
1 | ||
| 45856-12010 |
AE92,EE90..LHD;AE92..RHD..GTI OD=9.989-9.998 |
1 | ||
| 45856-12020 |
AE92,EE90..LHD;AE92..RHD..GTI OD=9.998-10.007 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
AE92,EE90..LHD;AE92..RHD..GTI |
1 | ||
| 45865-12050 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45865-12050 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
EE90..LHD..STD;AE92,EE90..GL,GTI,XL |
1 | ||
| 45866-12010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
1 | ||
| 45866-12010 |
AE92,EE90..LHD;AE92..RHD..GTI |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12030 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12030 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) RH |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07009 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 6 |
1 | ||
| 90389-07006 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 3 |
1 | ||
| 90389-07004 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 0 |
1 | ||
| 90389-07005 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 2 |
1 | ||
| 90389-07010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 7 |
1 | ||
| 90389-07011 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 8 |
1 | ||
| 90389-07008 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK A |
1 | ||
| 90389-07007 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 4 |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07009 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 6 |
1 | ||
| 90389-07006 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 3 |
1 | ||
| 90389-07004 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 0 |
1 | ||
| 90389-07005 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 2 |
1 | ||
| 90389-07010 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 7 |
1 | ||
| 90389-07011 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 8 |
1 | ||
| 90389-07008 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK A |
1 | ||
| 90389-07007 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN) MARK 4 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) LH |
1 | ||
| 45893-12070 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) RH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12020 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) LH |
1 | ||
| 45893-12070 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) RH |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE92,EE90 |
2 | ||
| 45897-12020 |
AE92,EE90..GL,XL W(TILT STEERING) |
1 | ||
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90206-10009 | ||||
| 91611-60820 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
| 94614-10600 | ||||
(8705- )GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE92,EE90..LHD W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE92,EE90..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE92,EE90..LHD W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE92,EE90..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE92,EE90 T=1.20 |
2 | ||
| 90520-17196 |
AE92,EE90..LHD..(GL,STD,XL) T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE92,EE90..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE92,EE90 T=1.20 |
2 | ||
| 90520-17196 |
AE92,EE90..LHD..(GL,STD,XL) T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE92,EE90..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
EE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE92,EE90 |
1 | ||
| 45209-12050 |
AE92,EE90..LHD..(GL,STD,XL)..GEN W(POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45210-12340 |
AE92,EE90..LHD..(GL,SR5,STD,XL) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45271-12050 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE92,EE90 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12100 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 45280-12120 |
AE92,EE90..(GL,SR5,XL)..(GCC,GEN) W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294303 |
AE92,EE90..LHD..(GL,XL) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-1294105 |
AE92,EE90..LHD..(GL,STD,XL) BEIGE,TRIM4# |
1 | ||
| 45286-1294304 |
AE92,EE90..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294305 |
AE92,EE90..LHD..(GL,STD,XL) W(TILT STEERING),BEIGE,TRIM4# |
1 | ||
| 45286-1294104 |
AE92,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 45286-1294103 |
AE92,EE90..LHD..(GL,SR5,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12250 |
AE92,EE90..LHD..(GL,STD,XL) |
1 | ||
| 45870-12251 |
AE92,EE90..LHD..(GL,STD,XL) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE92,EE90 |
2 | ||
| 45897-12020 |
AE92,EE90..GL,XL W(TILT STEERING) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-10016 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
