AE92L-ACHDU (1987)
Toyota Corolla Cp/Hb
Production
May 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )4AF

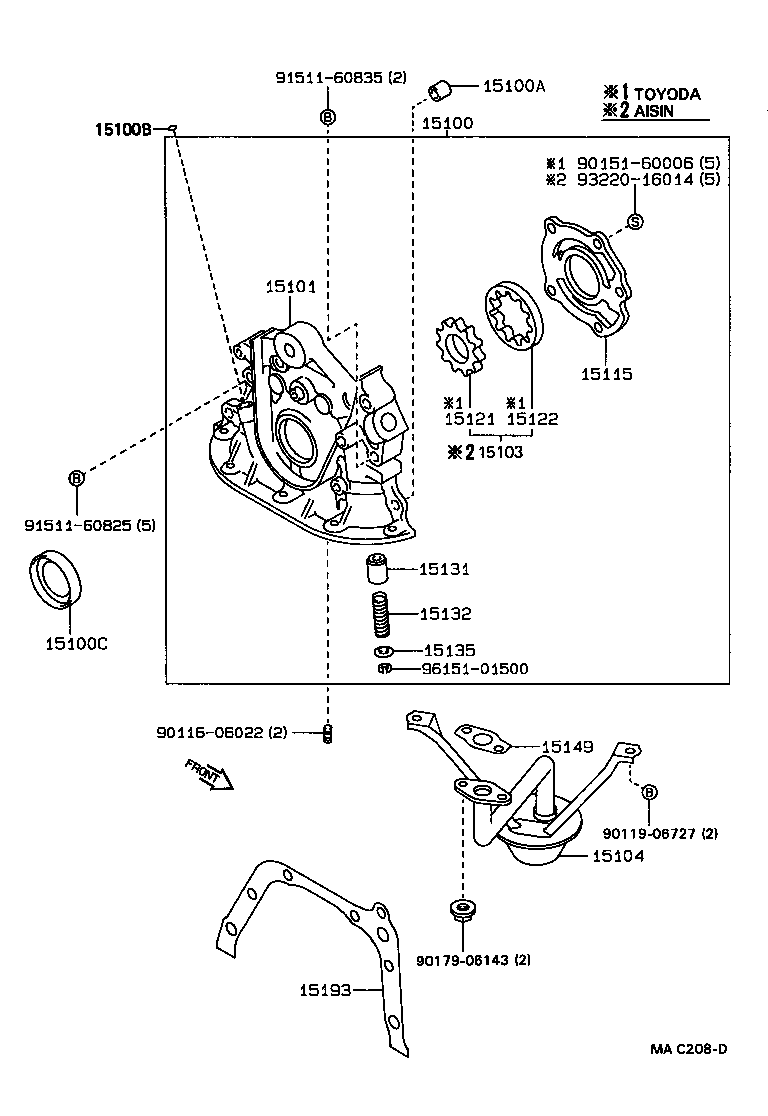

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-15050 |
4AF..AE92 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-11021 |
4A#..AE92 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96711-19010 |
4AF..AE92 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-32001 |
4A#..AE92 |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15011-15050 |
4AF..AE92 AISIN |
1 | ||
| 15101-15040 |
4AF..AE92 TOYODA KOUKI |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-15020 |
4AF..AE92 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-15080 |
4A#..AE92 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-15020 |
4AF..AE92 AISIN |
1 | ||
| 15115-15030 |
4AF..AE92 TOYODA KOUKI |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-15040 |
4AF..AE92 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-15040 |
4AF..AE92 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-15030 |
4AF..AE92 TOYODA KOUKI |
1 | ||
| 15131-24010 |
4AF..AE92 AISIN |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-15030 |
4AF..AE92 TOYODA KOUKI |
1 | ||
| 15132-40010 |
4AF..AE92 AISIN |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
4AF..AE92 AISIN |
1 | ||
| 15135-15030 |
4AF..AE92 TOYODA KOUKI |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-15010 |
4A#..AE92 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15197-15011 |
4A#..AE92 |
1 | ||
| Common parts | ||||
| 90116-06022 | ||||
| 90119-06727 | ||||
| 90151-60006 | ||||
| 90179-06143 | ||||
| 91511-60825 | ||||
| 91511-60835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
