AE86R-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3D

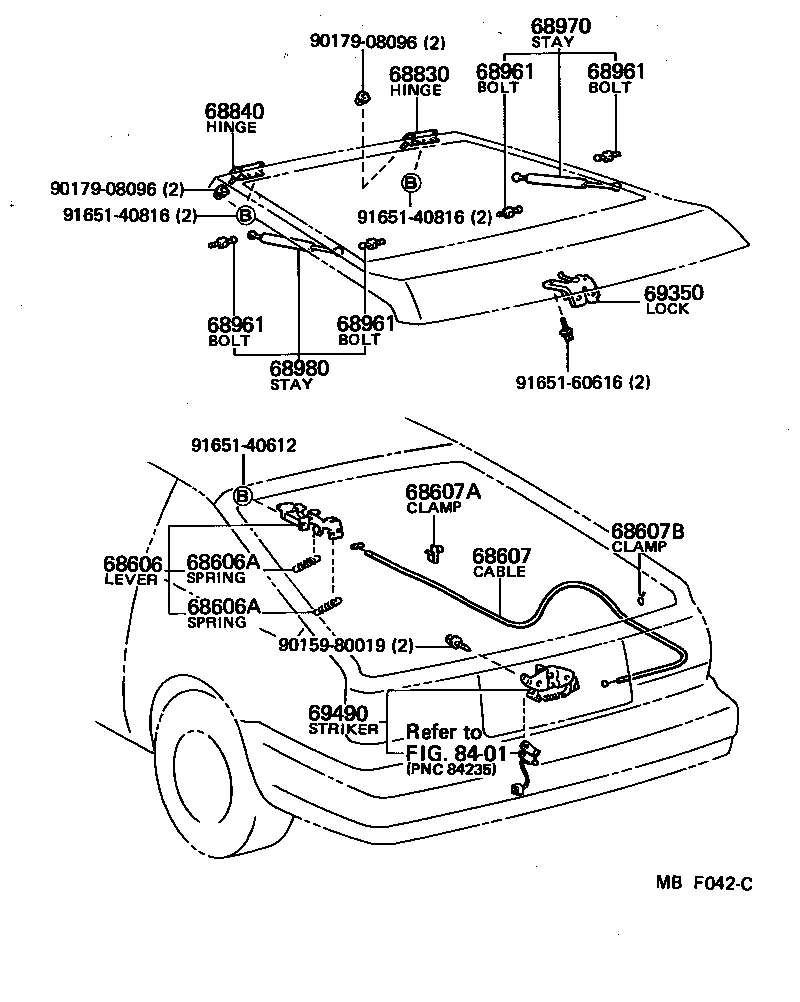

Click highlighted areas on diagram

diagram 68606 68606A 68606A 68607 68607A 68607B 68830 68840 68961 68961 68961 68961 68970 68980 69350 69490 8401 9015980019 9017908096 9017908096 9165140612 9165140816 9165140816 9165160616
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-16030

AE86..3D..RHD..(ARL,GEN)

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AE86..3D..(GEN,ME)

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AE86..3D..(GEN,ME)

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12210

AE86..3D..RHD..(ARL,GEN)

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
90467-12009

AE86..3D

 1
68607B - CLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)
90464-00156

AE86..3D..RHD..(ARL,GEN)

 2
68830 - HINGE ASSY, BACK DOOR, RH
68801-20020

AE86..3D

 1
68840 - HINGE ASSY, BACK DOOR, LH
68801-20020

AE86..3D

 1
68961 - BOLT, BACK DOOR STAY
68961-14020

AE86..3D

 4
68961-16010

AE86..3D

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AE86..3D

 4
68961-16010

AE86..3D

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AE86..3D

 4
68961-16010

AE86..3D

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AE86..3D

 4
68961-16010

AE86..3D

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19435

AE86..3D

 1
68950-19445

AE86..3D

W/RR WIPER

 1
68980 - STAY ASSY, BACK DOOR
68950-19435

AE86..3D

 1
68950-19445

AE86..3D

W/RR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-12040

AE86..3D

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-12090

AE86..3D..SR;AE86..3D..GT..EUR

W/O TRUNK OPENER

 1
69430-12200

AE86..3D..(ARL,GEN,ME)

W/TRUNK OPENER

 1
Common parts
90159-80019
90179-08096
91651-40612
91651-40816
91651-60616
Linked diagrams
8401
