AE86R-ECMXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

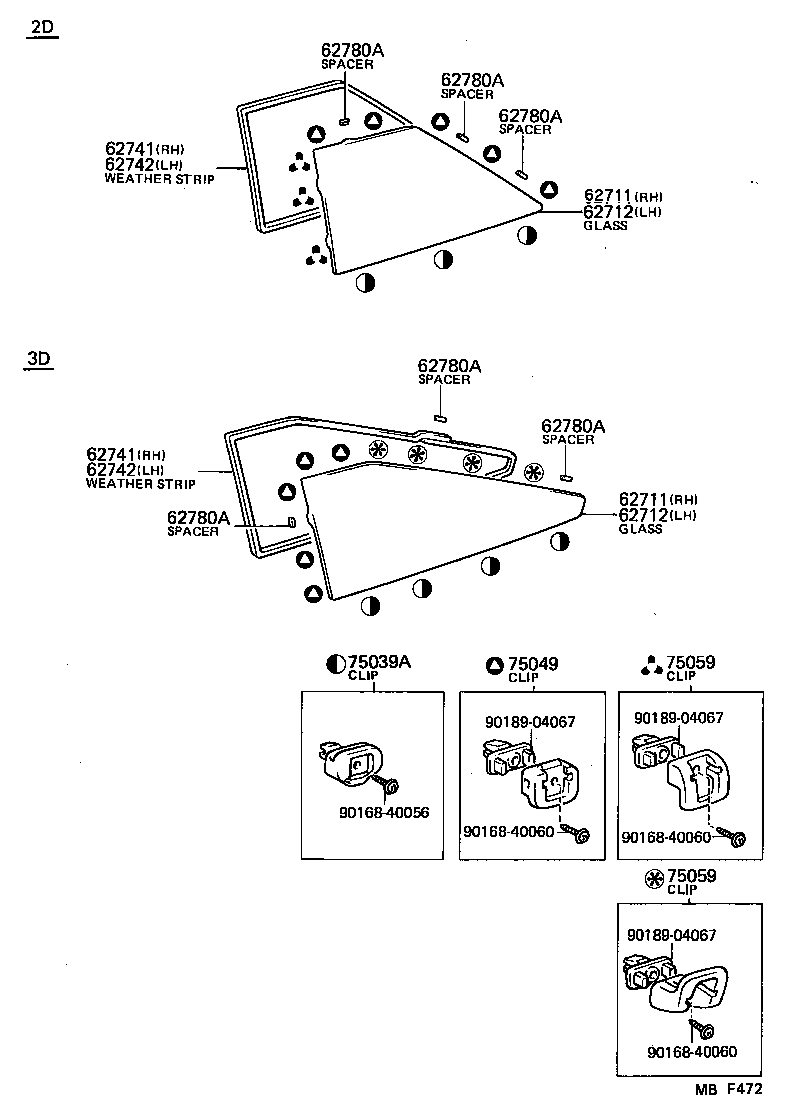

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-12320 |
AE86..3D *TT,T=3.5 |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-12320 |
AE86..3D *TT,T=3.5 |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-12320 |
AE86..3D *TT,T=3.5 |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-12320 |
AE86..3D *TT,T=3.5 |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-12120 |
AE86..3D |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-12120 |
AE86..3D |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62741-12120 |
AE86..3D |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62741-12120 |
AE86..3D |
1 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 62780A - SPACER(FOR QUARTER WINDOW MOULDING) | ||||
| 62785-12010 |
AE86 |
6 | ||
| 75039A - CLIP SUB-ASSY, QUARTER WINDOW, NO.1 | ||||
| 75039-12020 |
AE86..3D |
8 | ||
| 75049 - CLIP SUB-ASSY, QUARTER WINDOW, NO.2 | ||||
| 75049-12030 |
AE86 |
10 | ||
| 75059 - CLIP SUB-ASSY, QUARTER WINDOW, NO.3 | ||||
| 75059-12030 |
AE86..3D |
8 | ||
| 75059 - CLIP SUB-ASSY, QUARTER WINDOW, NO.3 | ||||
| 75059-12030 |
AE86..3D |
8 | ||
| Common parts | ||||
| 90168-40056 | ||||
| 90168-40060 | ||||
| 90189-04067 | ||||
