AE86R-ECMXS (1983)
Toyota Corolla Coupe

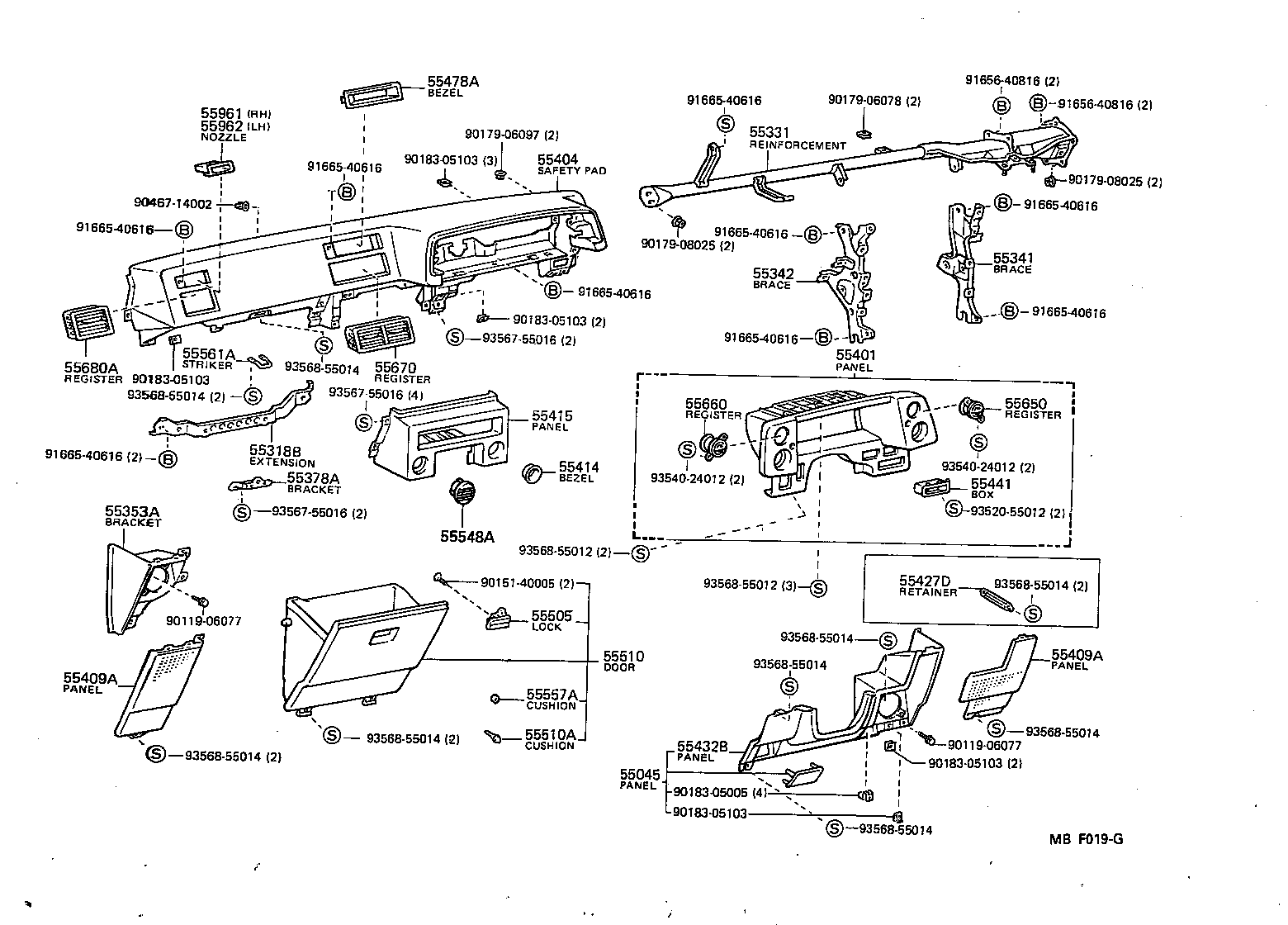

(8305-8505)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-1207005 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55045-1208005 |
AE86..RHD W/*TIS,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55045-1212004 |
AE86..RHD W/*TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1208002 |
AE86..RHD W/*TIS,DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 55045-1211001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55045-1208004 |
AE86..RHD W/*TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1207004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1211004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1212001 |
AE86..RHD W/*TIS,BLACK,BLACK,TRIM2# |
1 | ||
| 55045-1207002 |
AE86..RHD DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 55318B - EXTENSION, INSTRUMENT PANEL | ||||
| 55558-12050 |
AE86..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12101 |
AE86..RHD |
1 | ||
| 55330-12100 |
AE86..RHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12040 |
AE86..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12090 |
AE86..RHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-1204004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55353-1204001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55353-1204002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12090 |
AE86 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12890 |
AE86..RHD W/*IW |
1 | ||
| 55410-1A041 |
AE86..RHD..SR |
1 | ||
| 55410-12891 |
AE86..RHD W/*IW |
1 | ||
| 55410-1A040 |
AE86..RHD..SR..GEN |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1216001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1216002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-1216004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-1202004 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204005 |
AE86..RHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204002 |
AE86..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202002 |
AE86..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202005 |
AE86..RHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204104 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1202101 |
AE86..RHD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55472-1204004 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204101 |
AE86..RHD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55473-1202104 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-1202004 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204005 |
AE86..RHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204002 |
AE86..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202002 |
AE86..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202005 |
AE86..RHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204104 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1202101 |
AE86..RHD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55472-1204004 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204101 |
AE86..RHD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55473-1202104 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12070 |
AE86 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-12320 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55429-12030 |
AE86..EUR,GEN,ME |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1221004 |
AE86..RHD W/*TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1221005 |
AE86..RHD W/*TIS,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55432-1220005 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55432-1220004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-12080 |
AE86 |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1204004 |
AE86 BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1204002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1206004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206114 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206015 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55560-1206102 |
AE86..RHD DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55560-1206002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55560-1206101 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55560-1206104 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1223004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1223101 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1223005 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55550-1223002 |
AE86..RHD DEEP MAROON,TERACOTTA,TRIM3# |
1 | ||
| 55550-1223104 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE86 |
3 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12031 |
AE86 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
AE86 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE86 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12120 |
AE86 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12200 |
AE86 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1209002 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55670-1209004 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) BLUE,BLUE,TRIM8# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-1201002 |
AE86..RHD..(ARL,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55680-1201004 |
AE86..RHD..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55680-1201001 |
AE86..RHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1211004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55961-1211001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55961-1211002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1210002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962-1210001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55962-1210004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90151-40005 | ||||
| 90179-06078 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 91656-40816 | ||||
| 91665-40616 | ||||
| 93520-55012 | ||||
| 93540-24012 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||

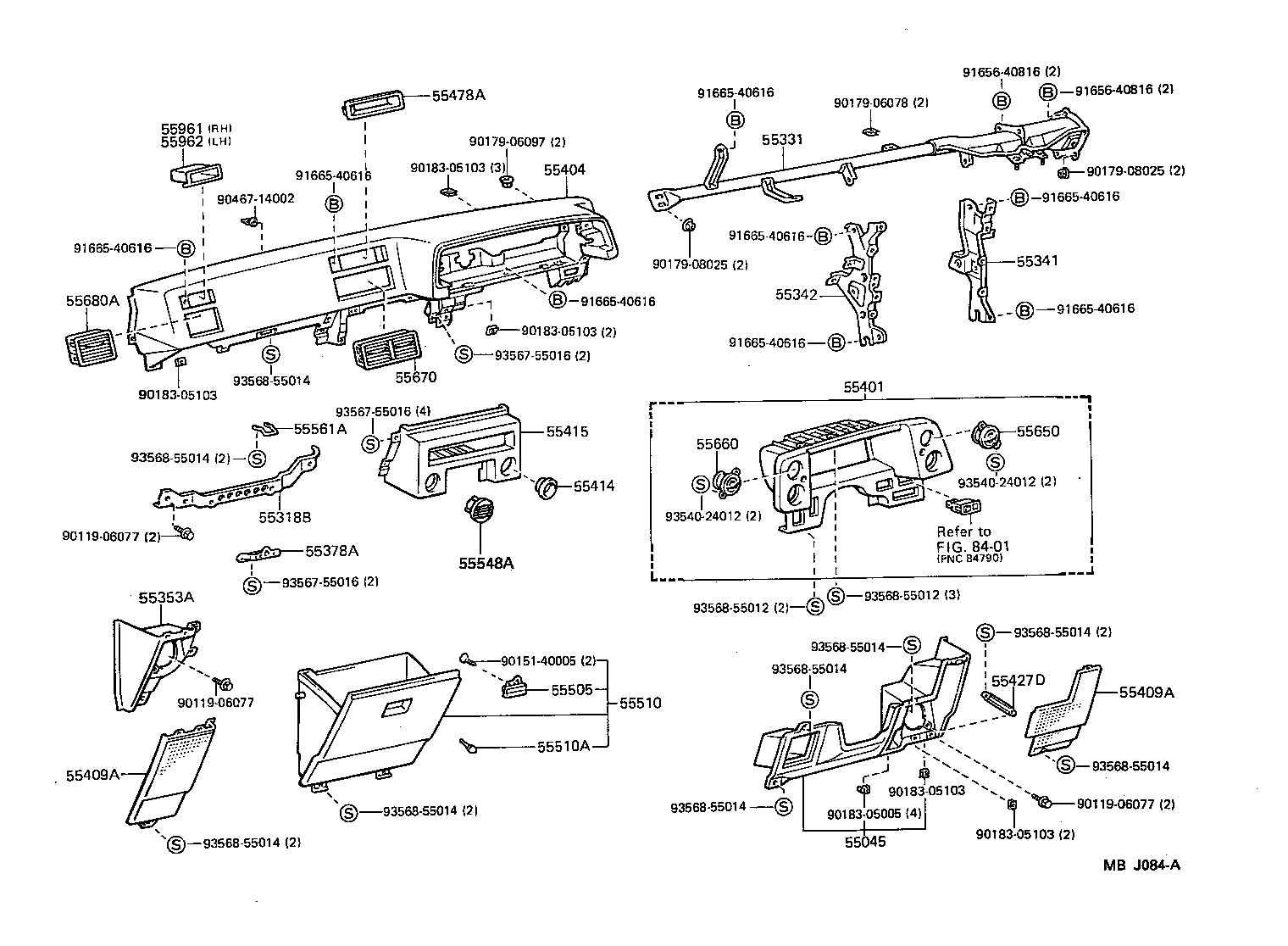

(8505- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-1207005 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55045-1208005 |
AE86..RHD W/*TIS,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55045-1212004 |
AE86..RHD W/*TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1208002 |
AE86..RHD W/*TIS,DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 55045-1211001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55045-1208004 |
AE86..RHD W/*TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1207004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1211004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55045-1212001 |
AE86..RHD W/*TIS,BLACK,BLACK,TRIM2# |
1 | ||
| 55045-1207002 |
AE86..RHD DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 55318B - EXTENSION, INSTRUMENT PANEL | ||||
| 55558-12050 |
AE86..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12101 |
AE86..RHD |
1 | ||
| 55330-12100 |
AE86..RHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12040 |
AE86..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12090 |
AE86..RHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-1204004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55353-1204001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55353-1204002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12090 |
AE86 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12890 |
AE86..RHD W/*IW |
1 | ||
| 55410-1A041 |
AE86..RHD..SR |
1 | ||
| 55410-12891 |
AE86..RHD W/*IW |
1 | ||
| 55410-1A040 |
AE86..RHD..SR..GEN |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1216001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1216002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-1216004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-1202004 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204005 |
AE86..RHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204002 |
AE86..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202002 |
AE86..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202005 |
AE86..RHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204104 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1202101 |
AE86..RHD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55472-1204004 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204101 |
AE86..RHD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55473-1202104 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-1202004 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204005 |
AE86..RHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204002 |
AE86..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202002 |
AE86..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1202005 |
AE86..RHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1204104 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1202101 |
AE86..RHD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55472-1204004 |
AE86..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1204101 |
AE86..RHD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55473-1202104 |
AE86..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12070 |
AE86 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-12320 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55429-12030 |
AE86..EUR,GEN,ME |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1204004 |
AE86 BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1204002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1206004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206114 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206015 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55560-1206102 |
AE86..RHD DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55560-1206002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55560-1206101 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55560-1206104 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1223004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1223101 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1223005 |
AE86..RHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55550-1223002 |
AE86..RHD DEEP MAROON,TERACOTTA,TRIM3# |
1 | ||
| 55550-1223104 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE86 |
3 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12031 |
AE86 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE86 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12120 |
AE86 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12200 |
AE86 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1209002 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55670-1209004 |
AE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME) BLUE,BLUE,TRIM8# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-1201002 |
AE86..RHD..(ARL,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55680-1201004 |
AE86..RHD..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55680-1201001 |
AE86..RHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1211004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55961-1211001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55961-1211002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1210002 |
AE86..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962-1210001 |
AE86..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55962-1210004 |
AE86..RHD BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90151-40005 | ||||
| 90179-06078 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 91656-40816 | ||||
| 91665-40616 | ||||
| 93540-24012 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
