AE86R-ECMXCQ (1983)

Toyota Corolla Coupe

Production May 1983 - May 1985
Engine 4AC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

diagram 1603 1605 1605 88431 88431 88595 88595 8889920090 8889920090 9009901513 9162161025 9165161030 9165161030 9165161030
Part # Description Qty Price

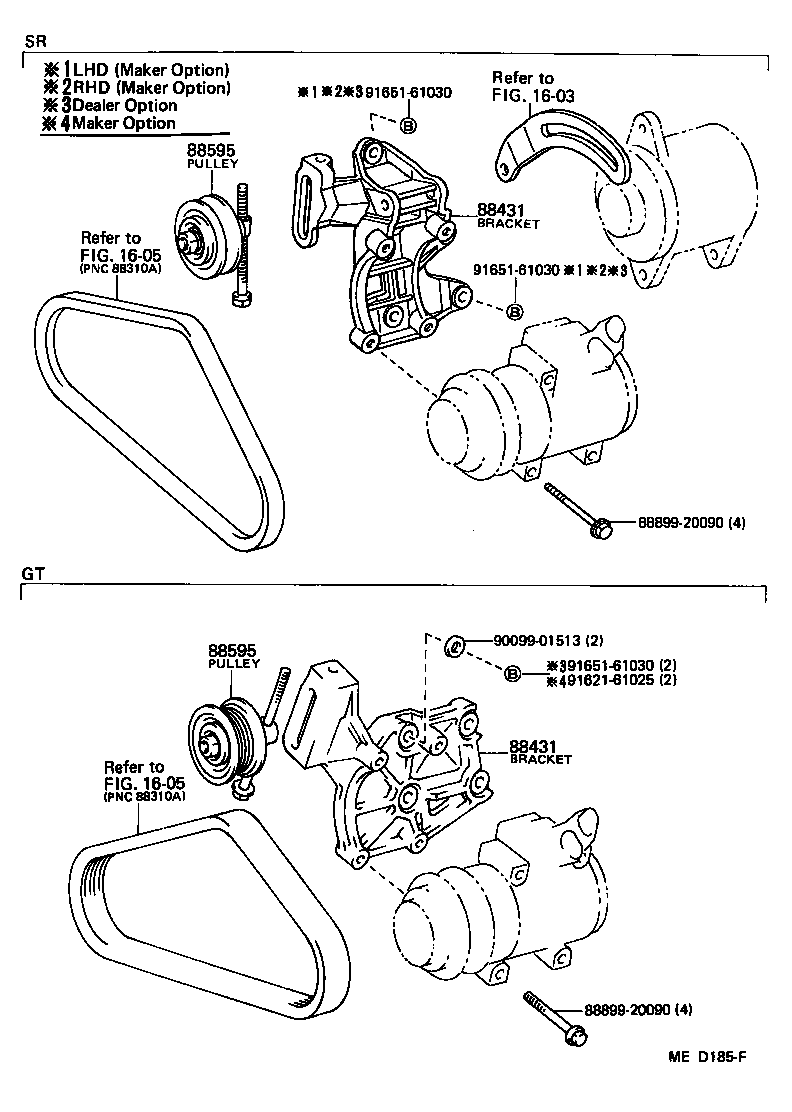

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12280

AE86..SR..(ARL,GEN)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12280

AE86..SR..(ARL,GEN)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12120

AE86..SR..(ARL,GEN)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12120

AE86..SR..(ARL,GEN)

 1
Common parts
88899-20090
90099-01513
91621-61025
91651-61030
Linked diagrams
1603
1605

(8305- )

Click highlighted areas on diagram

diagram 88301 88301 88302 88320 88330 88330A 88330B 88330B 88403 88414A 88414A 88596A 8889914120 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price

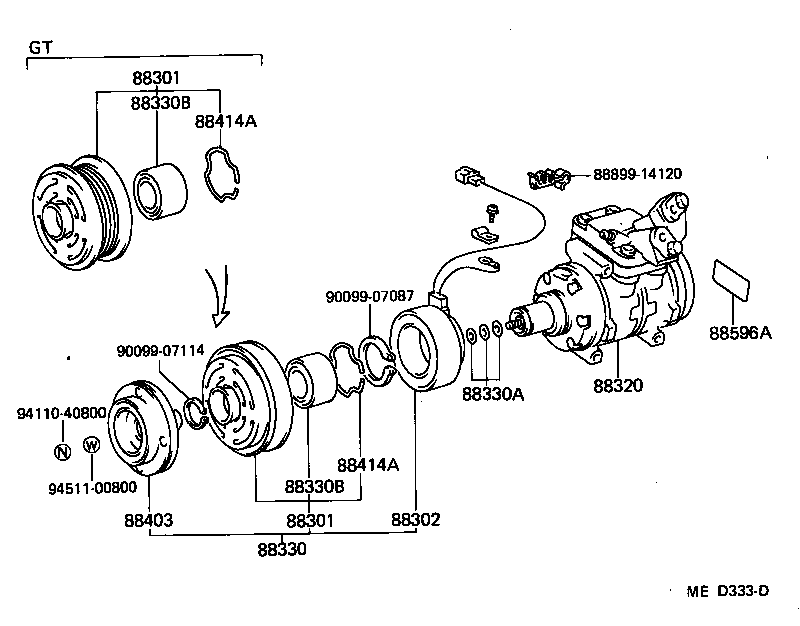

88320 - COMPRESSOR ASSY, COOLER
88320-12300

AE86..ARL,GEN,ME

DEALER OPTION

 1
88414A - RING, SHIELD SNAP
90099-07094

AE86..ARL,GEN,ME

 1
88414A - RING, SHIELD SNAP
90099-07094

AE86..ARL,GEN,ME

 1
Common parts
88899-14120
90099-07087
90099-07114
94110-40800
94511-00800

(8305- )

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320A 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329C 88335 88360 88360A 88364 88374 88375
Part # Description Qty Price

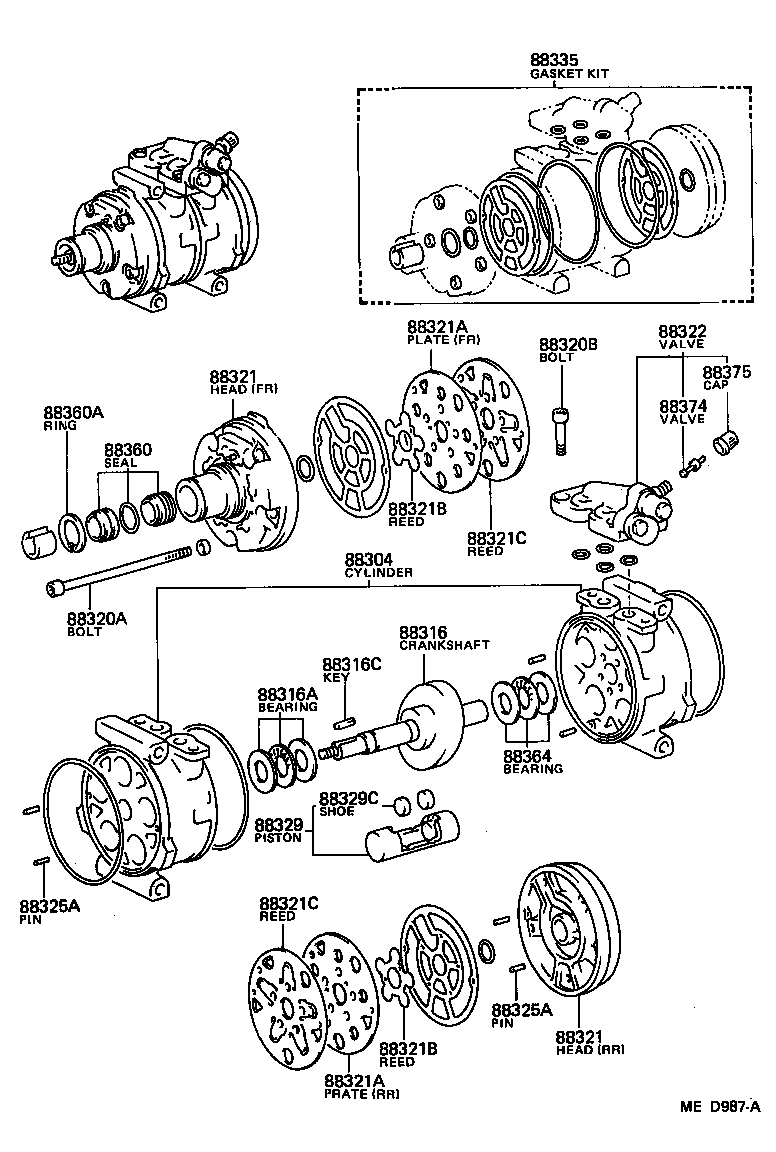

88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14041

AE86..ARL,GEN,ME

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14021

AE86..ARL,GEN,ME

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

AE86..ARL,GEN,ME

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13012

AE86..ARL,GEN,ME

 1
88320A - BOLT, THROUGH
90099-04968

AE86..ARL,GEN,ME

 5
88320B - BOLT, SERVICE VALVE
90099-04255

AE86..ARL,GEN,ME

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

AE86..ARL,GEN,ME

RR

 1
88321-14011

AE86..ARL,GEN,ME

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

AE86..ARL,GEN,ME

RR

 1
88321-14011

AE86..ARL,GEN,ME

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AE86..ARL,GEN,ME

FR

 1
88342-14010

AE86..ARL,GEN,ME

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AE86..ARL,GEN,ME

FR

 1
88342-14010

AE86..ARL,GEN,ME

RR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

AE86..ARL,GEN,ME

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

AE86..ARL,GEN,ME

 2
88321C - REED, SUCTION VALVE
88343-14011

AE86..ARL,GEN,ME

 2
88321C - REED, SUCTION VALVE
88343-14011

AE86..ARL,GEN,ME

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-12220

AE86..ARL,GEN,ME

DEALER OPTION

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

AE86..ARL,GEN,ME

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

AE86..ARL,GEN,ME

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12050

AE86..ARL,GEN,ME

 5
88329C - SHOE, PISTON
88313-14010

AE86..ARL,GEN,ME

 10
88335 - GASKET KIT, OVERHAUL
04881-10010

AE86..ARL,GEN,ME

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-40010

AE86..ARL,GEN,ME

 1
88360-14020

AE86..ARL,GEN,ME

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AE86..ARL,GEN,ME

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

AE86..ARL,GEN,ME

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

AE86..ARL,GEN,ME

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

AE86..ARL,GEN,ME

 1
