AE86R-ECMXCQ (1983)
Toyota Corolla Coupe
(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-15210 |
4A#..AE86..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-15210 |
4A#..AE86..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16417-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 96711-19007 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
4A#..AE86..5F TOYO RADIATOR |
1 | ||
| 16401-63010 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16403-14030 |
4A,4AC,4AG#..AE86..5F DENSO |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-15220 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16441-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-14030 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16442-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
2 | ||
| 16443-14030 |
4A#..AE86 DENSO |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-14030 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16451-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-14030 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16451-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16461-15220 |
4A,4AC,4AG#..AE86..5F DENSO |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
1 | ||
| 16462-14030 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16443-15210 |
4A,4AC,4AG#..AE86..5F TOYO RADIATOR |
2 | ||
| 16463-14030 |
4A#..AE86 DENSO |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16466-15210 |
4A#..AE86..5F NO.2,TOYO RADIATOR |
1 | ||
| 16465-15210 |
4A,4AC,4AG#..AE86..5F NO.1,TOYO RADIATOR |
1 | ||
| 16467-15210 |
4A,4AC,4AG#..AE86..5F NO.3,TOYO RADIATOR |
1 | ||
| 16468-15210 |
4A#..AE86..5F NO.4,TOYO RADIATOR |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16466-15210 |
4A#..AE86..5F NO.2,TOYO RADIATOR |
1 | ||
| 16465-15210 |
4A,4AC,4AG#..AE86..5F NO.1,TOYO RADIATOR |
1 | ||
| 16467-15210 |
4A,4AC,4AG#..AE86..5F NO.3,TOYO RADIATOR |
1 | ||
| 16468-15210 |
4A#..AE86..5F NO.4,TOYO RADIATOR |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16466-15210 |
4A#..AE86..5F NO.2,TOYO RADIATOR |
1 | ||
| 16465-15210 |
4A,4AC,4AG#..AE86..5F NO.1,TOYO RADIATOR |
1 | ||
| 16467-15210 |
4A,4AC,4AG#..AE86..5F NO.3,TOYO RADIATOR |
1 | ||
| 16468-15210 |
4A#..AE86..5F NO.4,TOYO RADIATOR |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16466-15210 |
4A#..AE86..5F NO.2,TOYO RADIATOR |
1 | ||
| 16465-15210 |
4A,4AC,4AG#..AE86..5F NO.1,TOYO RADIATOR |
1 | ||
| 16467-15210 |
4A,4AC,4AG#..AE86..5F NO.3,TOYO RADIATOR |
1 | ||
| 16468-15210 |
4A#..AE86..5F NO.4,TOYO RADIATOR |
1 | ||

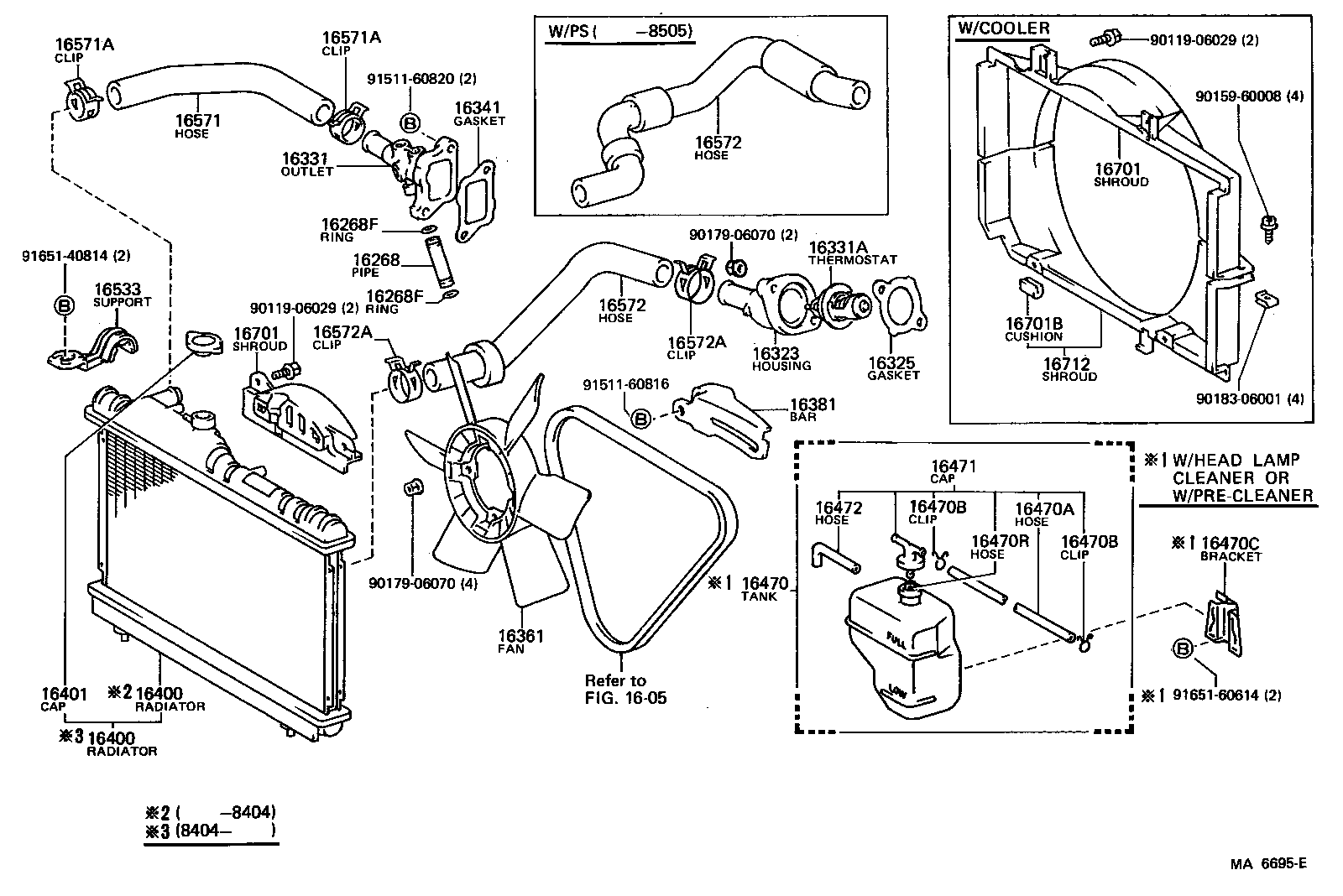

(8305- )4A,4AC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
4A,4AC..AE86 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4A,4AC,4AG#..AE86 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4A,4AC,4AG#..AE86 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15020 |
4A,4AC..AE86 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
4A,4AC,4AG#..AE86 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15050 |
4A,4AC..AE86..5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4A,4AC,4AG#..AE86 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15011 |
4A,4AC..AE86 |
1 | ||
| 16361 - FAN | ||||
| 16361-16010 |
4A,4AC,4AG#..AE86 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15030 |
4A,4AC..AE86 |
1 | ||
| 88688-12180 |
4A,4AC..AE86..ARL,GEN W/COOLER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-15210 |
4A#..AE86..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-15210 |
4A#..AE86..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
4A#..AE86..5F TOYO RADIATOR |
1 | ||
| 16401-63010 |
4A,4AC,4AG#..AE86 DENSO |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-16010 |
4A..AE86 W/PRE-CLEANER |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
4A..AE86 L=1000,W/PRE-CLEANER |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A..AE86 W/PRE-CLEANER |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A..AE86 W/PRE-CLEANER |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-16010 |
4A..AE86 W/PRE-CLEANER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16010 |
4A..AE86 W/PRE-CLEANER |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-12020 |
4A..AE86 W/PRE-CLEANER |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15110 |
4A,4AC..AE86 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
4A#..AE86 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
4A#..AE86 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15170 |
4AC..AE86..ARL W/PS |
1 | ||
| 16572-15160 |
4A,4AC..AE86 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15170 |
4AC..AE86..ARL W/PS |
1 | ||
| 16572-15160 |
4A,4AC..AE86 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34002 |
4A,4AC,4AG#..AE86 ENGINE SIDE |
1 | ||
| 90467-34001 |
4A,4AC,4AG#..AE86 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34002 |
4A,4AC,4AG#..AE86 ENGINE SIDE |
1 | ||
| 90467-34001 |
4A,4AC,4AG#..AE86 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15130 |
4A,4AC..AE86 |
1 | ||
| 16711-15120 |
4A,4AC,4AGE..AE86..ARL,GEN,ME W/COOLER |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15130 |
4A,4AC..AE86 |
1 | ||
| 16711-15120 |
4A,4AC,4AGE..AE86..ARL,GEN,ME W/COOLER |
1 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
4A,4AC,4AGE..AE86..ARL,GEN,ME W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-15030 |
4A,4AC,4AGE..AE86..ARL,GEN,ME W/COOLER |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 91511-60816 | ||||
| 91511-60820 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1605 | ||||
