AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

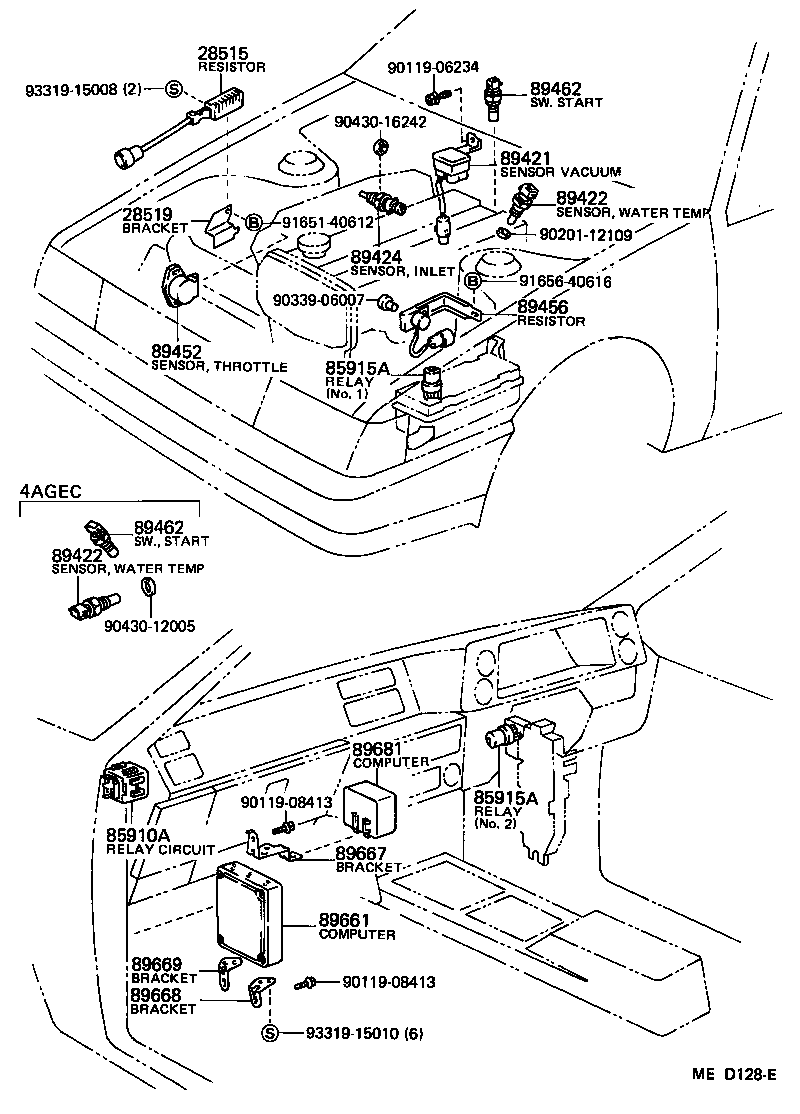

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 85915A 89421 89422 89422 89424 89452 89456 89462 89462 89661 89667 89668 89669 89681 9011906234 9011908413 9011908413 9020112109 9033906007 9043012005 9043016242 9165140612 9165640616 9331915008 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-52010

4AG#..AE86

FRG SPEC

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-15010

4AG#..AE86

FRG SPEC

 1
85915A - RELAY, MAIN
90987-02004

AE86..RHD..GT

NO.1 & NO.2

 2
85915A - RELAY, MAIN
90987-02004

AE86..RHD..GT

NO.1 & NO.2

 2
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28010

AE86..GT

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12060

AE86..EUG

 1
89661-12130

AE86..EUG

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12030

AE86..RHD..GT

 1
89667-12060

AE86..RHD..GT

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12010

AE86..RHD..GT

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12010

AE86..RHD..GT

 1
Common parts
90119-06234
90119-08413
90201-12109
90339-06007
90430-12005
90430-16242
91651-40612
91656-40616
93319-15008
93319-15010
