AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )EUR

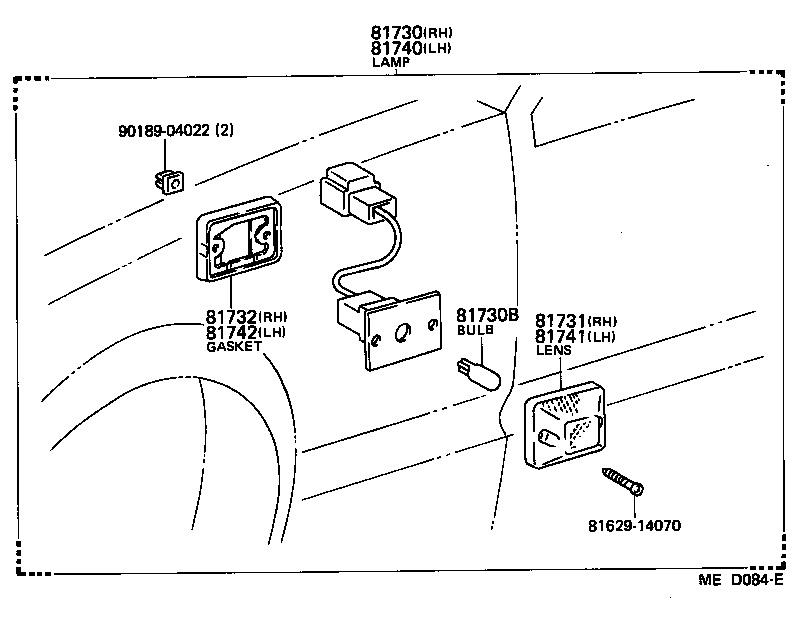

Click highlighted areas on diagram

diagram 8162914070 81730 81730B 81731 81732 81740 81741 81742 9018904022
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19355

AE86..EUR

 1
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14140

AE86..EUR

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14140

AE86..EUR

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-19355

AE86..EUR

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-14140

AE86..EUR

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14140

AE86..EUR

 1
Common parts
81629-14070
90189-04022
