AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )EUR

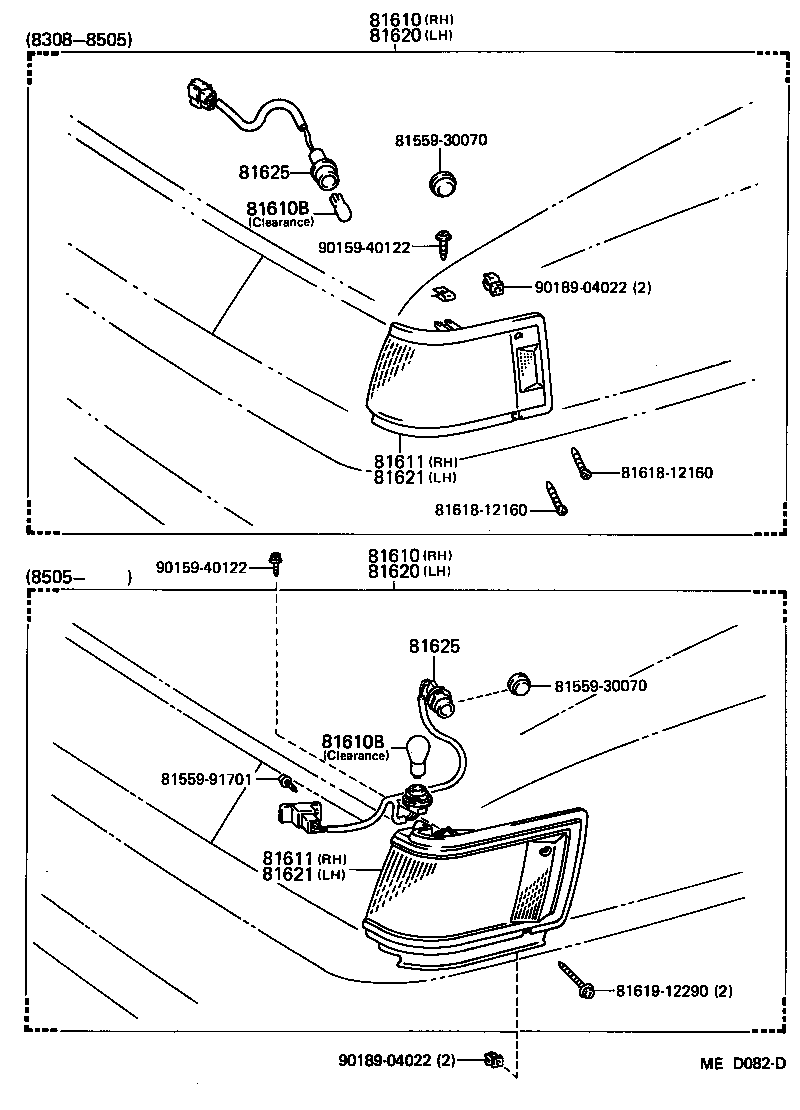

Click highlighted areas on diagram

diagram 8155930070 8155930070 8155991701 81610 81610 81610B 81610B 81611 81611 8161812160 8161812160 8161912290 81620 81620 81621 81621 81625 81625 9015940122 9015940122 9018904022 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19495

AE86..EUR

 1
81610-12300

AE86..EUR

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19495

AE86..EUR

 1
81610-12300

AE86..EUR

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE86..EUR

12V 5W,12V 5W(CLEARANCE)

 2
99132-11050

AE86..EUR

12V 5W,12V 5W(CLEARANCE)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE86..EUR

12V 5W,12V 5W(CLEARANCE)

 2
99132-11050

AE86..EUR

12V 5W,12V 5W(CLEARANCE)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12300

AE86..EUR

 1
81611-12170

AE86..EUR

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12300

AE86..EUR

 1
81611-12170

AE86..EUR

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19495

AE86..EUR

 1
81620-12300

AE86..EUR

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19495

AE86..EUR

 1
81620-12300

AE86..EUR

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12300

AE86..EUR

 1
81621-12170

AE86..EUR

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12300

AE86..EUR

 1
81621-12170

AE86..EUR

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-12300

AE86..EUR

 2
81615-12200

AE86..EUR

 2
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-12300

AE86..EUR

 2
81615-12200

AE86..EUR

 2
Common parts
81559-30070
81559-91701
81618-12160
81619-12290
90159-40122
90189-04022
