Toyota Corolla coupe AE86 HEADLAMP

AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305-8505)ARL,EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-80331	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81110-80329	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81110-80457	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81110-80455	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81110-1A322	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81110-1A352	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE86..ARL,EUR,GEN 12V 60/55W,HAL WH,HALOGEN,WHITE,12V 60/55W	05/1983 - 04/1987	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE86..ARL,EUR,GEN 12V 60/55W,HAL WH,HALOGEN,WHITE,12V 60/55W	05/1983 - 04/1987	2
81112A - RIM, HEADLAMP, RH
81112-1A130	AE86..ARL,EUR,GEN	05/1983 - 05/1985	1
81117-1A261	AE86..EUR,GEN	05/1985 - 04/1987	1
81135 - UNIT ASSY, HEADLAMP, RH
81135-1A350	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81135-1A320	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81135-1A321	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81135-1A351	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81130-1A352	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81130-1A322	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81144 - COVER, HEADLAMP, NO.1
81139-20730	AE86..ARL,EUR,GEN	05/1983 - 04/1987	2
81150 - HEADLAMP ASSY, LH
81150-80326	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81150-80445	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81150-80447	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81150-80328	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81150-1A282	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81150-1A252	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81152A - RIM, HEADLAMP, LH
81157-1A021	AE86..EUR,GEN	05/1985 - 04/1987	1
81152-1A080	AE86..ARL,EUR,GEN	05/1983 - 05/1985	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A252	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81175-1A250	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81175-1A251	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81175-1A280	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81175-1A281	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81170-1A282	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
Common parts
81119-1A130
90179-06115
91665-40616

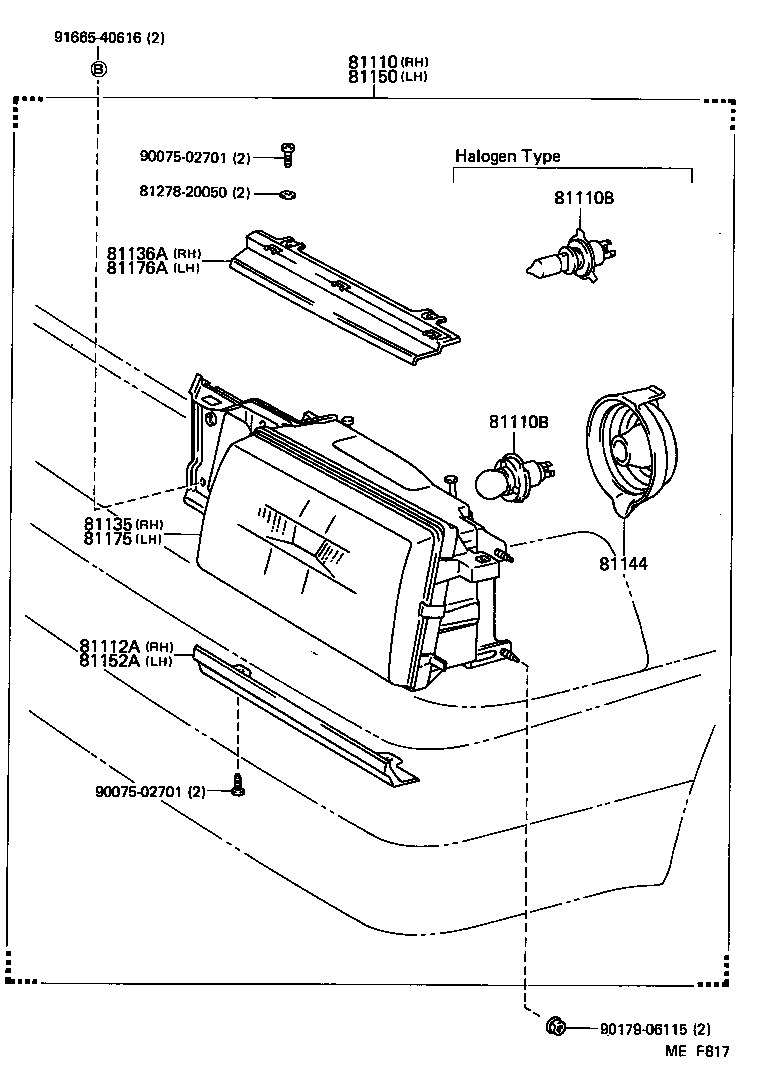

(8505- )EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-80331	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81110-80329	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81110-80457	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81110-80455	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81110-1A322	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81110-1A352	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE86..ARL,EUR,GEN 12V 60/55W,HAL WH,HALOGEN,WHITE,12V 60/55W	05/1983 - 04/1987	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE86..ARL,EUR,GEN 12V 60/55W,HAL WH,HALOGEN,WHITE,12V 60/55W	05/1983 - 04/1987	2
81112A - RIM, HEADLAMP, RH
81112-1A130	AE86..ARL,EUR,GEN	05/1983 - 05/1985	1
81117-1A261	AE86..EUR,GEN	05/1985 - 04/1987	1
81135 - UNIT ASSY, HEADLAMP, RH
81135-1A350	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81135-1A320	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81135-1A321	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81135-1A351	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81130-1A352	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81130-1A322	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81136A - RIM, HEADLAMP, RH
81116-1A261	AE86..EUR,GEN	05/1985 - 04/1987	1
81144 - COVER, HEADLAMP, NO.1
81139-20730	AE86..ARL,EUR,GEN	05/1983 - 04/1987	2
81150 - HEADLAMP ASSY, LH
81150-80326	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81150-80445	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81150-80447	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81150-80328	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81150-1A282	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81150-1A252	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81152A - RIM, HEADLAMP, LH
81157-1A021	AE86..EUR,GEN	05/1985 - 04/1987	1
81152-1A080	AE86..ARL,EUR,GEN	05/1983 - 05/1985	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A252	AE86..RHD HALOGEN	05/1985 - 04/1987	1
81175-1A250	AE86..RHD HALOGEN	05/1983 - 03/1985	1
81175-1A251	AE86..RHD HALOGEN	03/1985 - 05/1985	1
81175-1A280	AE86..RHD..EUG HALOGEN,NATO SPEC	08/1983 - 03/1985	1
81175-1A281	AE86..RHD..EUG HALOGEN,NATO SPEC	03/1985 - 05/1985	1
81170-1A282	AE86..RHD..EUG HALOGEN,NATO SPEC	05/1985 - 04/1987	1
81176A - RIM, HEADLAMP, LH
81156-1A021	AE86..EUR,GEN	05/1985 - 04/1987	1
Common parts
81278-20050
90075-02701
90179-06115
91665-40616
