AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GT

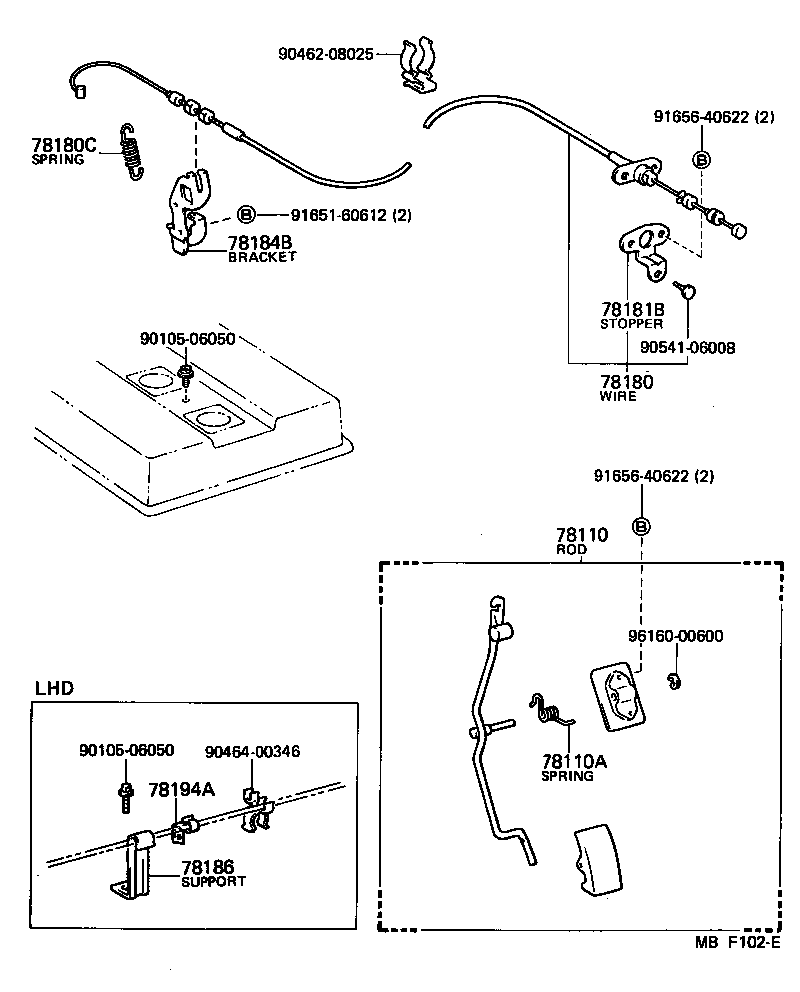

Click highlighted areas on diagram

diagram 78110 78110A 78180 78180C 78181B 78184B 78186 78194A 9010506050 9010506050 9046208025 9046400346 9054106008 9165160612 9165640622 9165640622 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78010-12110

AE86..RHD

 1
78010-12100

AE86..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

AE86

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12410

AE86..RHD..GT

 1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-11004

AE86..EUG;AE86..GT..(GEN,ME)

 1
90507-10009

AE86..GT

 1
Common parts
90105-06050
90462-08025
90464-00346
90541-06008
91651-60612
91656-40622
96160-00600
